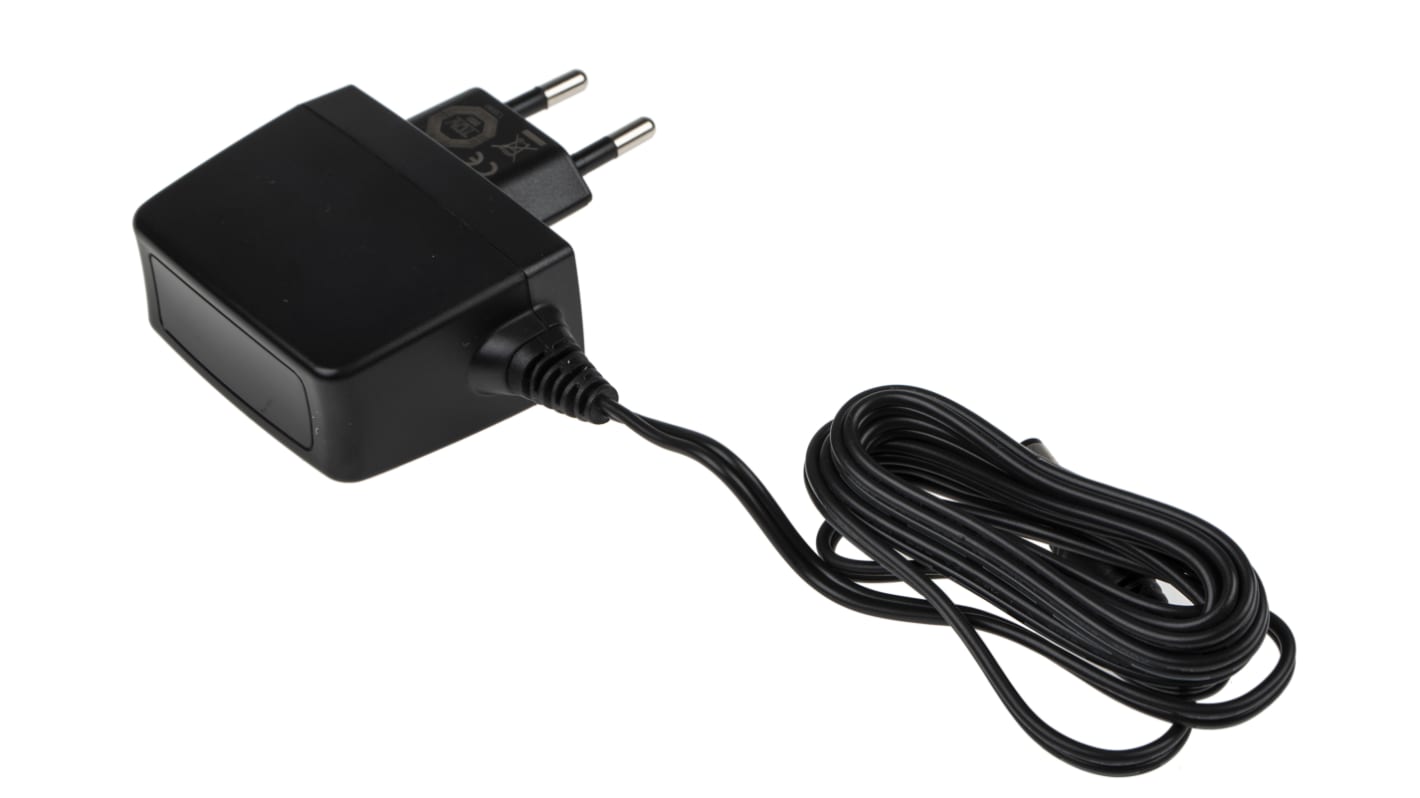

Artesyn Embedded Technologies, 10W Plug In Power Supply 5V dc, 2A, Level VI Efficiency, 1 Output Power Adapter,

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PH
Product Details

The new standard DA10-M series of plug-in wall-mount AC-DC power adapters provide a very flexible power solution for instrumentation, telecommunications, computer peripheral and test and measurement systems. This power plug has a 2-pin fixed blade AC plug for use in different European countries.

Other features include protection against overvoltage, overcurrent, short circuit and overtemperature conditions. Operating temperature range is extended down to -10°C, making it suitable for more demanding application environments.

Class II input
Operation to -10°C
Overvoltage, overtemperature, overcurrent and short circuit protections
Available in multiple fixed and interchangeable AC plug configurations
Output cable available in barrel plug and micro USB connectors

Specifications
Attribute Value
Type Power Adapter
Plug Type Type A
Output Voltage 5 V dc
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240 V ac
Output Current 2A
Maximum Temperature +40°C
Output Connector 2.5 x 5.5 x 11 mm Centre Positive
Input Connector US Plug
Number of Outputs 1
Power Rating 10W
Cable Length 1500mm
Medical Approved Yes
Depth 82mm
Series DA10-M
Length 60mm
Energy Efficiency Level VI
Width 28mm
Minimum Temperature -10°C
Load Regulation ±5%
Standards Met AUGEMS, CB, CCC, CE, CEC2008, CUL/UL, DoE, NRcan, PSE, RCM AS/NZS 60950-1, TUV, UL
72 In stock for delivery within 2 working days
Unit of sale: Each
13.13
(exc. VAT)
16.15
(inc. VAT)
units
Per unit
1 - 4
€13.13
5 - 9
€12.47
10 - 24
€11.82
25 - 49
€11.16
50 +
€10.50
