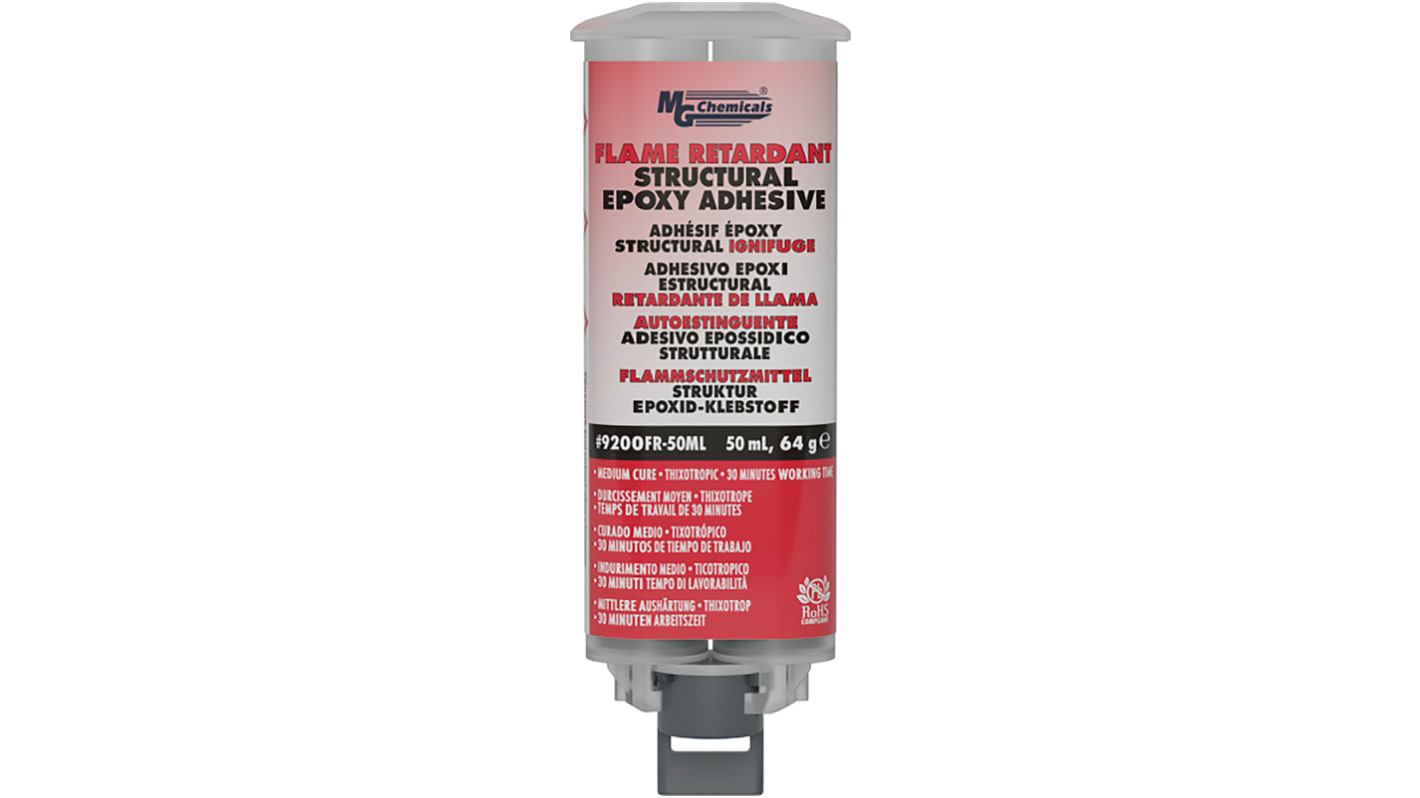

MG Chemical, 50 ml Yellow Dual Cartridge Epoxy Adhesive for Various Materials

  • RS Stock No. 181-0361
  • Mfr. Part No. 9200FR-50ML
  • Manufacturer MG Chemical
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CA
Product Details

9200FR is a toughened, flame retardant, two-part epoxy adhesive, designed to create long-lasting load bearing joints. It adheres strongly to materials that are difficult to bond to, including glass, ceramics, metals, engineered thermoplastics, and thermoset laminates, such as SMC (sheet molding compound) and GRP (glass-reinforced plastics). It creates tough vibration-resistant bonds, and is especially useful for joining dissimilar materials that will experience thermal cycling stresses. This product also provides excellent electrical insulation, and protects against static discharges, thermal shocks, galvanic corrosion, environmental humidity, salt water, fungus, and many harsh chemicals. It is smooth, non-sagging and thixotropic, so it is excellent for use on vertical surfaces and for gap-filling. It is also useful for potting electronics in enclosures with gaps where a non-thixotropic encapsulant would flow through.

Specifications
Attribute Value
Trade Name 9200FR
Adhesive Type Epoxy Adhesive
Material Compatibility Ceramic, Glass, Metal, Plastic
Colour Yellow
Package Type Dual Cartridge
Package Size 50 ml
Cure Time 1.5 h @ +80 °C, 3 h @ +65 °C, 16 h @ +40 °C, 24 h @ +22 °C
Shear Strength 0.7 (ABS) N/mm², 2.3 (Polycarbonate) N/mm², 10 (Aluminium) N/mm², 12 (Copper) N/mm², 13 (Brass) N/mm², 14 (Stainless Steel) N/mm²
Viscosity Measurement 370000 (Part B) cP/s, 380000 (Part A) cP/s
Viscosity Description Low
Maximum Operating Temperature +150°C
Minimum Operating Temperature -40°C
Specific Gravity 1.3
Operating Temperature Range -40 → +150 °C
Temporarily out of stock - back order for despatch when stock is available
Unit of sale: Each
28.42
(exc. VAT)
34.39
(inc. VAT)
units
Per unit
1 - 14
€28.42
15 - 39
€27.25
40 +
€25.11
