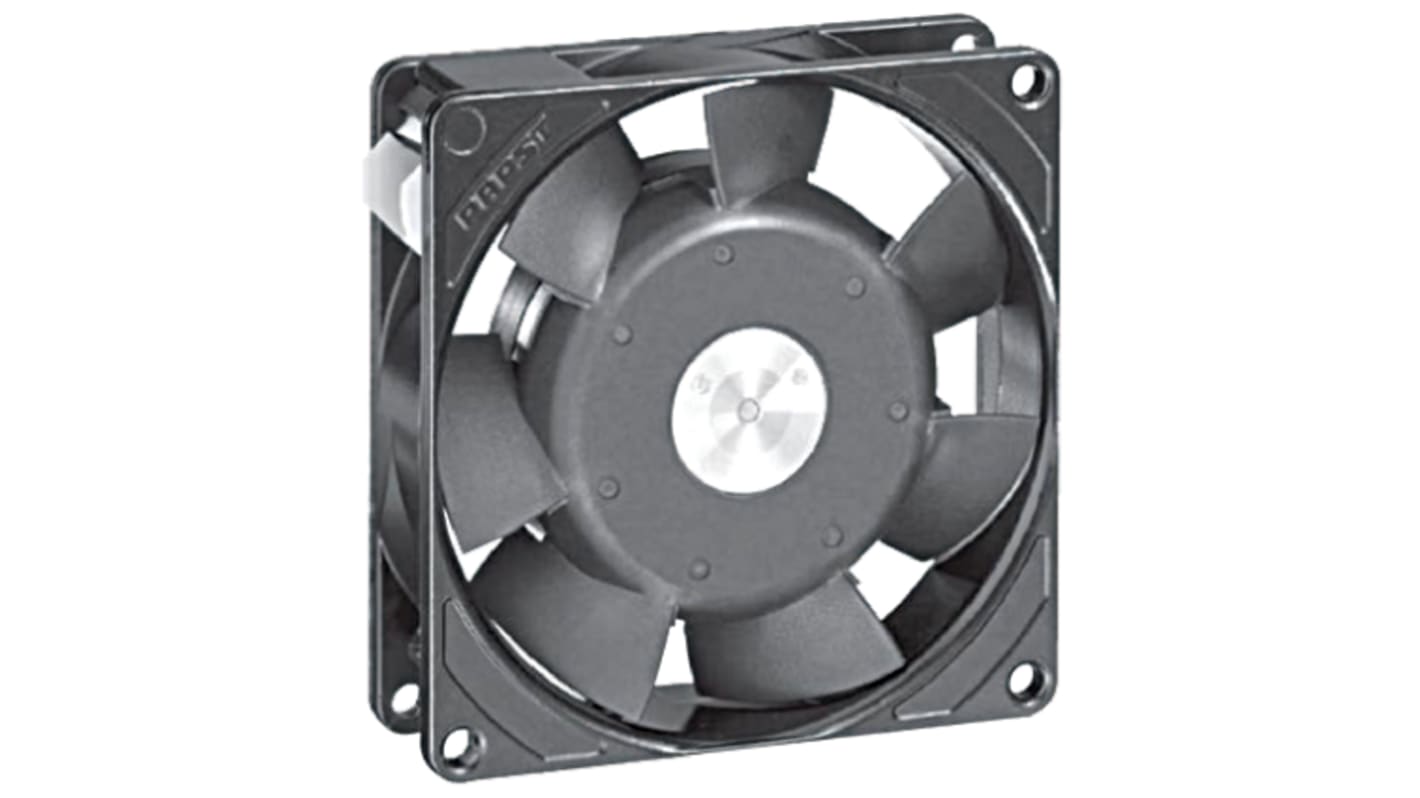

AC Axial Fan, 92 x 92 x 25.4mm, 59m³/h, 11W, 230 V ac (3900 Series)

  • RS Stock No. 482-332
  • Mfr. Part No. 3956
  • Manufacturer ebm-papst
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): HU
Product Details

ebm-papst AC Ball and Sleeve Bearing Axial Fans

ebm-papst AC ball and sleeve bearing axial fans are an ideal solution to a wide range of cooling requirements. Featuring small installation depths, low noise levels and exceptional efficiencies, ebm-papst AC axial fans are particularly suited to moving air through heat exchangers.

Self-starting, industrial frame size fans with over temperature/current protection
Reverse mountable for blowing or extraction

Note

Plug and lead guards, filter/filter elements are available separately. Stock Nos 211-9342, 211-9336, 263-7705, 263-7711, 101-8024, 211-9960, 211-9308 all have flying leads

Approvals

UL; CSA; VDE

Specifications
Attribute Value
Supply Voltage 230 V ac
Dimensions 92 x 92 x 25.4mm
Height 92mm
Width 92mm
Depth 25.4mm
AC or DC Operation AC
Air Flow 59m³/h
Power Consumption 11W
Bearing Type Ball
Noise Level 35dB
Fan Speed 2650rpm
Series 3900
Temporarily out of stock - back order for despatch 09-10-2020, delivery within 2 working days
Unit of sale: Each
48.25
(exc. VAT)
59.35
(inc. VAT)
units
Per unit
1 - 4
€48.25
5 - 9
€43.91
10 - 24
€39.81
25 - 49
€36.19
50 +
€33.78
