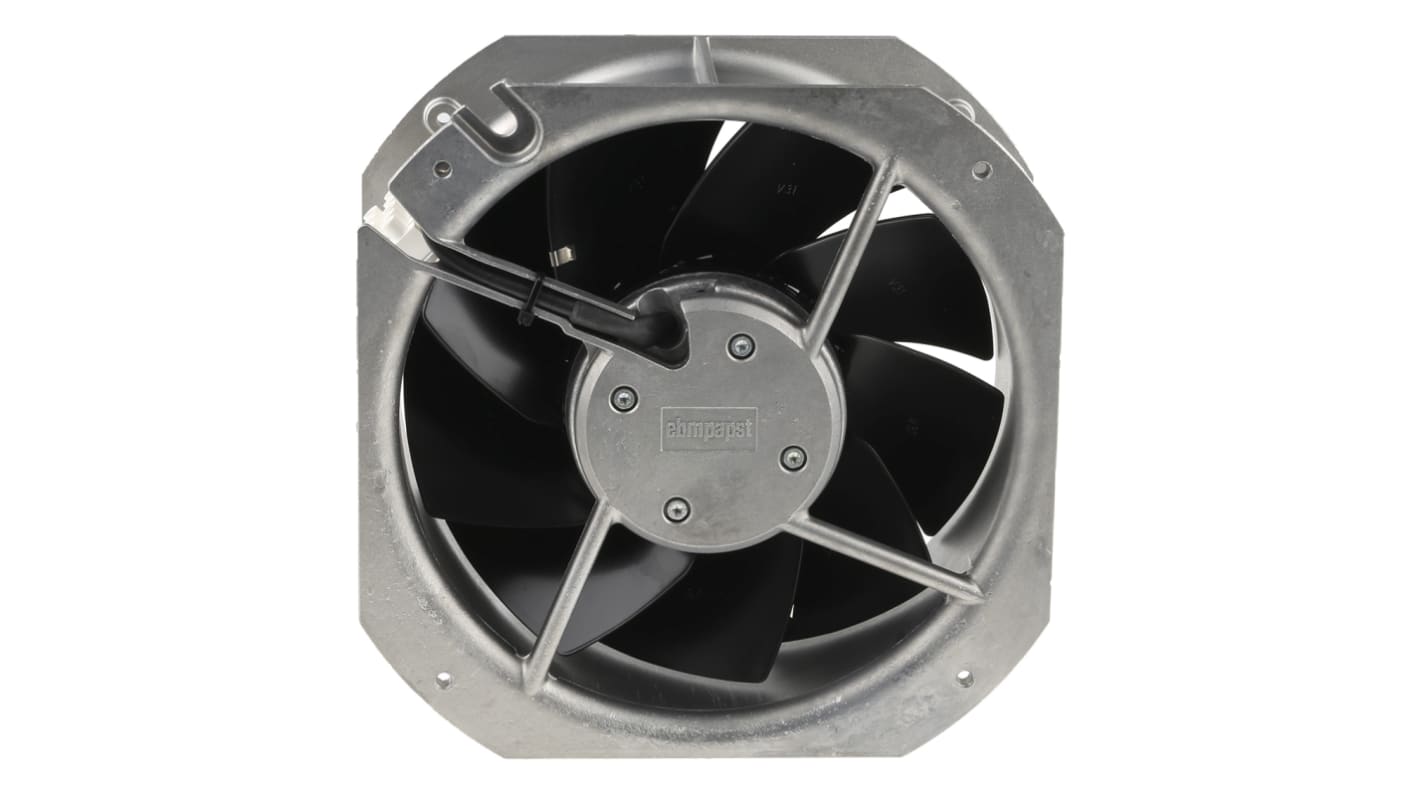

ebm-papst W1G200 Series Axial Fan, 225 x 225 x 80mm, 1095m³/h, 55W, 24 V dc

  • RS Stock No. 360-1921
  • Mfr. Part No. W1G200-HH77-52
  • Manufacturer ebm-papst
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

ebm-papst Standard DC Ball Bearing Fans

ebm-papst standard DC ball bearing fans are suitable for high air performance with moderate pressure build-up. Featuring an all metal construction, ebm-papst standard DC fans are rugged and reliable, with a long operational lifecycle.

All metal construction
Square or round fans equipped for mounting in any position
Can be reverse mounted for extracting or blowing
Polarity and locked motor protection

ebm-papst DC Axial Fan

The ebm-papst DC axial fan is a high-tech cooling solution. It is available in the size of 225mm x 225mm x 80mm size and supply voltage of 24VDC. The fan has 2950rpm motor speed. It has an extended ball bearing life that ensures fault-free use for a significant period of time (57,000hours at 40°C). The ebm-papst DC fans provide a flexible and dependable cooling solution for applications that lets you mount it in any axial position. The fan has a power consumption rating of 55W.

Features and Benefits


Airflow of 1090m³/h
• Fan motor integrated into the impeller hub to form a compact fan unit
• Air intake via struts
• External rotor shaded pole motor
• Expertly designed for maximum efficiency and performance
• Aerodynamic blades for low noise level and increased efficiency
• Choice of bearing types including PAPST sintec sleeve bearings for low noise and low shock sensitivity
• Flanged housings with mounting holes for installation into equipment
• Die cast alloy housing for a robust construction
• Protection from overload by impedance protection

Applications


Catering
• Domestic appliances
• Enclosures
• Fans, motors, and pumps
• Heating and ventilation
• Industrial drives
• Instruments
• Lighting
• Machines and industrial
• Medical
• Power supplies
• Printing
• Telecom
• UV systems
• IP20 rating

Certifications


UL approved
• CSA
• VDE

Approvals

-

Specifications
Attribute Value
Supply Voltage 24 V dc
Dimensions 225 x 225 x 80mm
Height 225mm
AC or DC Operation DC
Power Consumption 55W
Width 225mm
Depth 80mm
Maximum Current 2.29A
Air Flow 1095m³/h
Noise Level 60dB
Fan Speed 2950rpm
Bearing Type Ball
22 In stock for delivery within 2 working days
Unit of sale: Each
344.12
(exc. VAT)
423.27
(inc. VAT)
units
Per unit
1 - 4
€344.12
5 - 9
€301.11
10 - 19
€275.30
20 +
€249.49
