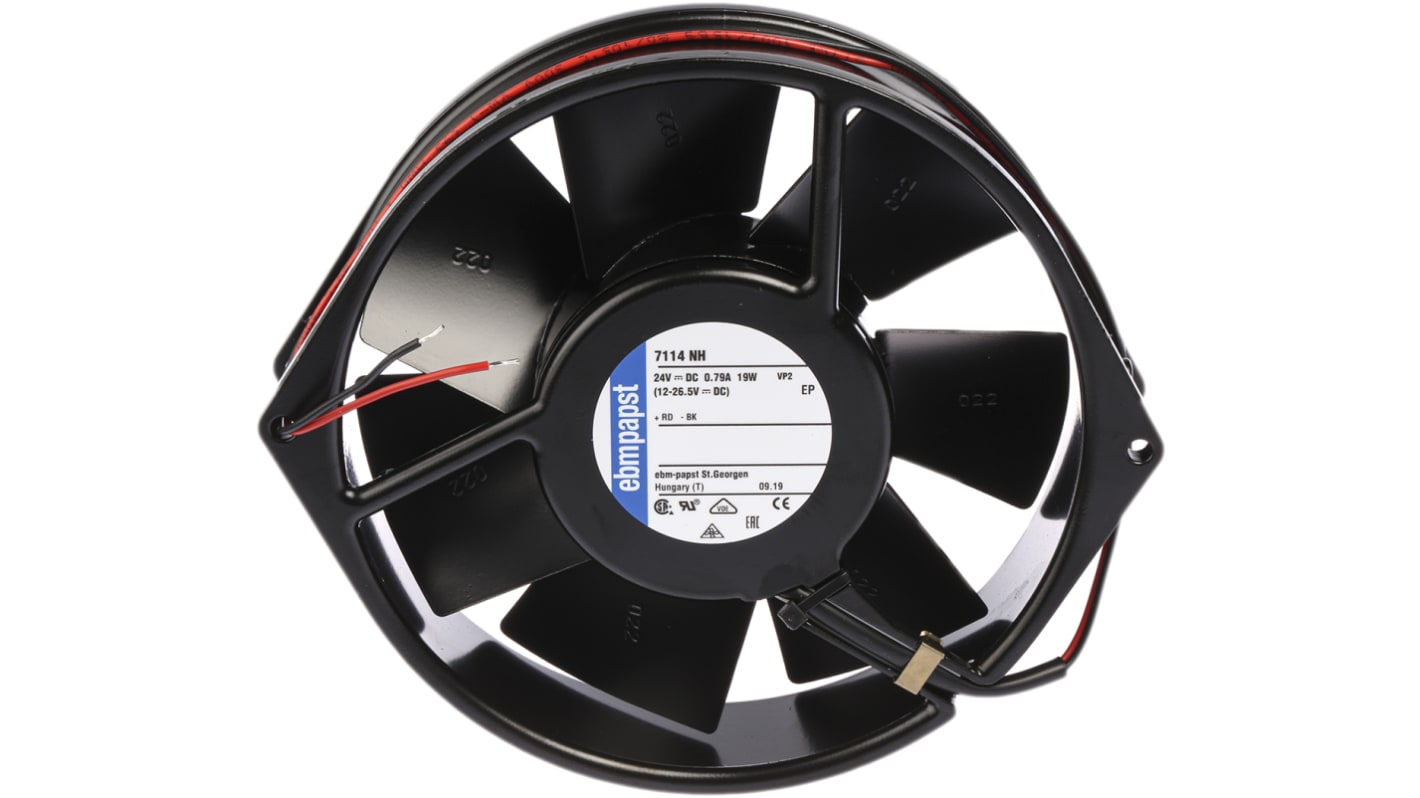

ebm-papst 7114 Series Axial Fan, 150 x 38mm, 360m³/h, 19W, 24 V dc

  • RS Stock No. 826-0843
  • Mfr. Part No. 7114NH
  • Manufacturer ebm-papst
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

DC Axial Fans 150 Ø x 38 mm

The 7100 series of fans from ebm.papst.

Electronic switching motor and external rotor.
Built-in electronic protection against polarity reversal, overload or rotor seizure.
Aluminium housing and impeller, housing with grounding lug for screw M4 x 8 (torx).
Connection via single strands AWG 22, TR 64, bared and tin plated
Air intake struts: Direction of rotation counter clockwise, seen on rotor
Mass: 620 g

Approvals

VDE, UL, CSA

Specifications
Attribute Value
Dimensions 150 x 38mm
Supply Voltage 24 V dc
AC or DC Operation DC
Power Consumption 19W
Depth 38mm
Air Flow 360m³/h
Noise Level 58dB
Fan Speed 3350rpm
Bearing Type Ball
Direction of Curve Backward
151 In stock for delivery within 2 working days
Unit of sale: Each
113.17
(exc. VAT)
136.94
(inc. VAT)
units
Per unit
1 - 4
€113.17
5 - 9
€99.03
10 - 19
€90.54
20 +
€82.05
