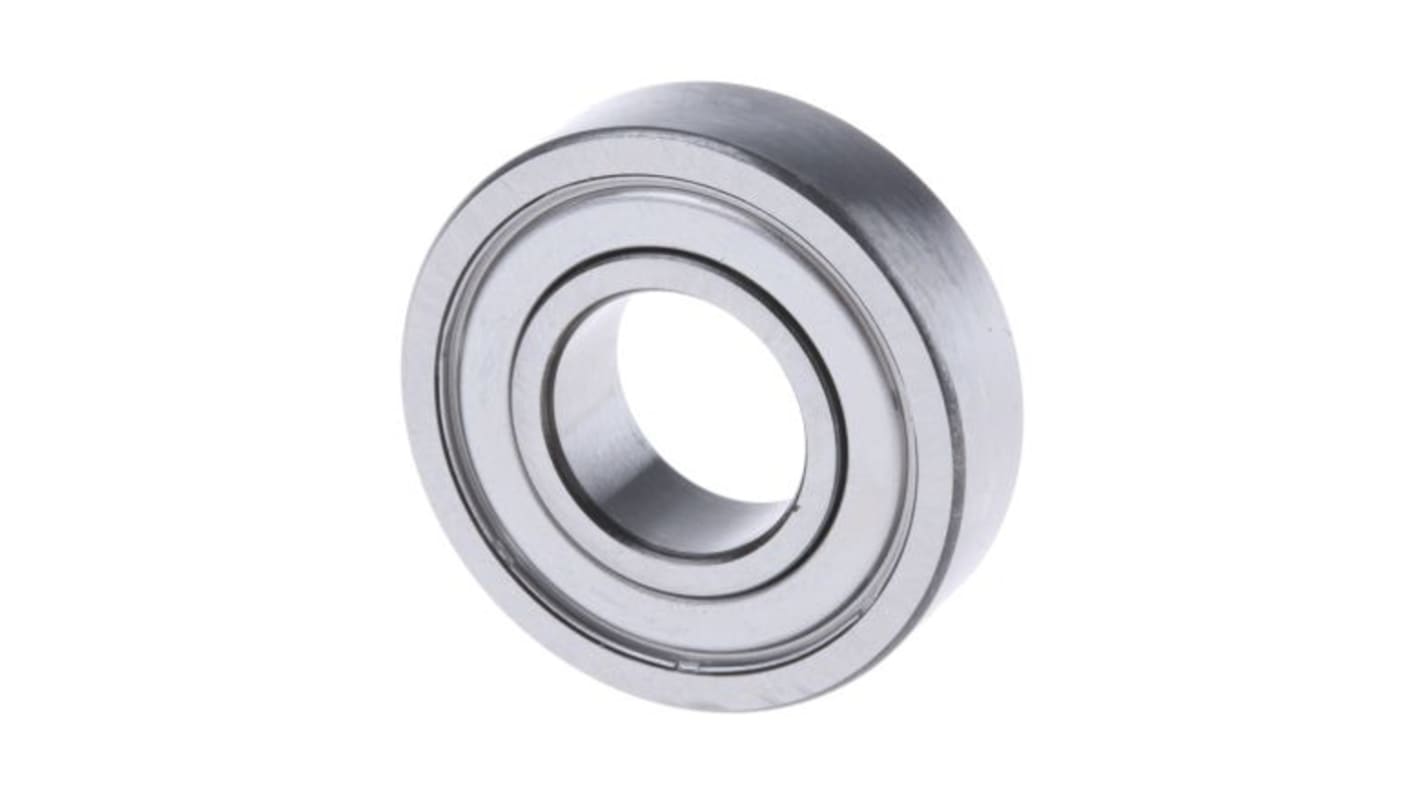

NSK-RHP KLNJ3/8-2ZRY Single Row Deep Groove Ball Bearing- Both Sides Shielded 9.52mm I.D, 22.22mm O.D
- RS Stock No.:
- 746-324
- Mfr. Part No.:
- KLNJ3/8-2ZRY
- Manufacturer:
- NSK-RHP
2 Within 1 working day(s) (IE stock)
18 Within 2 working day(s) (EU stock)
Added
Price Each
€20.82
(exc. VAT)
€25.61
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €20.82 |
| 5 - 9 | €20.00 |
| 10 - 24 | €19.57 |
| 25 + | €19.15 |
- RS Stock No.:
- 746-324
- Mfr. Part No.:
- KLNJ3/8-2ZRY
- Manufacturer:
- NSK-RHP
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
RHP Imperial Ball Bearings - Shielded
Shielded bearings are fitted with two metal dust shields to prevent ingress of dirt and foreign matter.
Primarily intended for applications where the bearing inner ring rotates
If the outer ring rotates there is a danger that grease may be lost from the bearing at high speeds
If the outer ring rotates there is a danger that grease may be lost from the bearing at high speeds
Specifications
Attribute | Value |
|---|---|
| Inside Diameter | 9.52mm |
| Outside Diameter | 22.22mm |
| Race Width | 7.14mm |
| Ball Bearing Type | Single Row Deep Groove Ball Bearing |
| Sealing Arrangement | Both Sides Shielded |
| Bearing Clearance | CN |
| Material | Steel |
| Ball Material | Steel |
| Cage Material | Steel |
| Number of Rows | 1 |
| Static Load Rating | 1.41kN |
| Dynamic Load Rating | 3.46kN |
| Bore Type | Parallel |
| Race Type | Plain |
