10-2446, Breadboard Prototyping Board

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

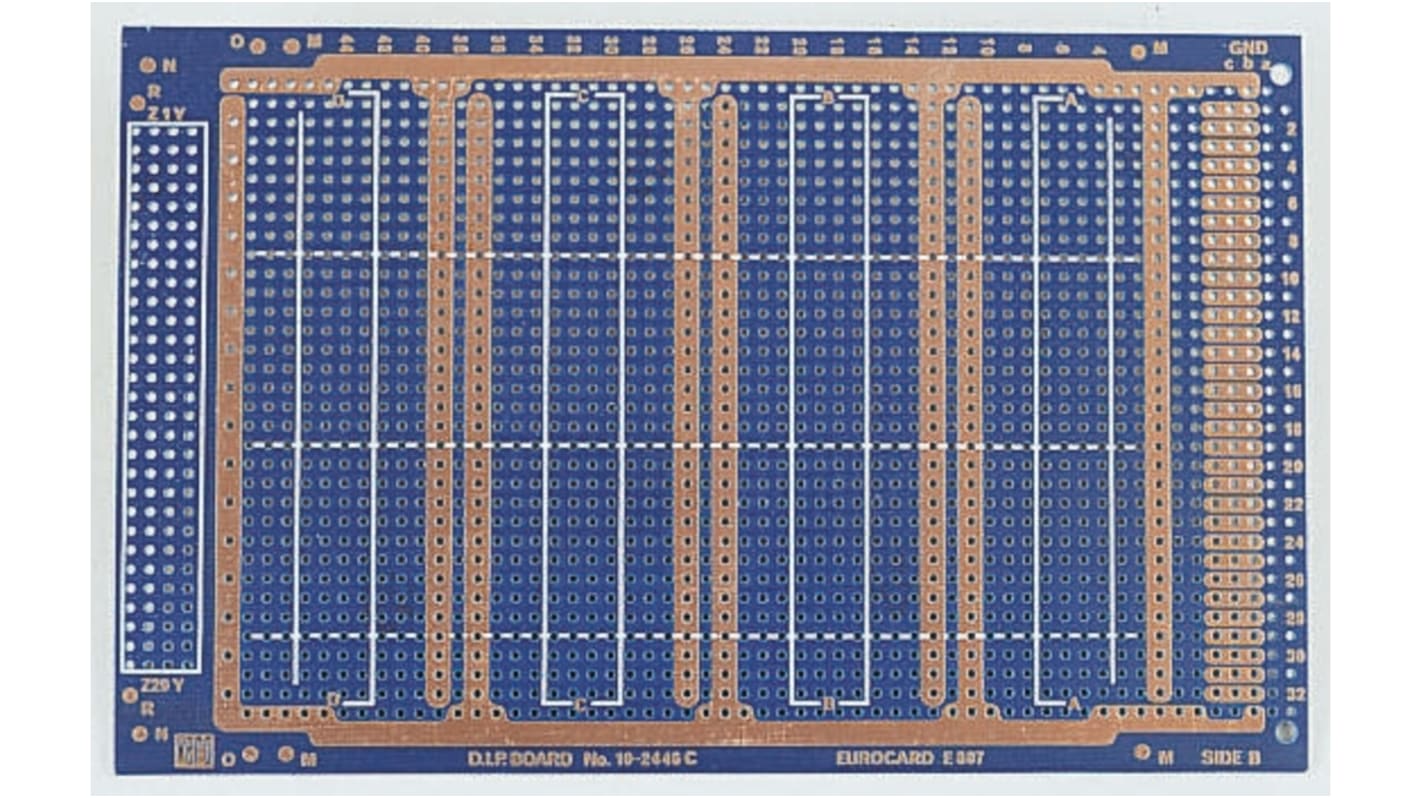

Eurocards, D.I.P. Boards for KM6 system

These boards comply with DIN 41494 Part 5 and can accommodate 8 → 40-pin DIL-ICs with high mounting density/ There are 2 potential conductors on the wiring and mounting sides. DIN 41612 compliant connectors, design B or C, can be mounted on the reverse. Ribbon cables, adapter connectors and control elements can be connected on the front.

DIN Type Matrixboard

Matrix boards with 1mm holes on a 2.54mm pitch.

Specifications
Attribute Value
Type Prototyping Board
Length 100mm
Width 160mm
Temporarily out of stock - back order for despatch 29-11-2019, delivery within 2 working days
Unit of sale: Each
24.67
(exc. VAT)
30.34
(inc. VAT)
units
Per unit
1 - 4
€24.67
5 - 9
€23.44
10 - 39
€22.21
40 +
€20.98
