Agro Progress MS EMC Rapid Series Metallic Nickel Plated Brass Cable Gland, PG29 Thread, 19mm Min, 23mm Max, IP68
- RS Stock No.:
- 220-6301
- Mfr. Part No.:
- A1080 29 230
- Manufacturer:
- Agro
Temporarily out of stock - back order for despatch 30-04-2024, delivery within 2 working days
Added
Price Each
€56.26
(exc. VAT)
€69.20
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €56.26 |
| 5 - 9 | €53.45 |
| 10 + | €50.61 |
- RS Stock No.:
- 220-6301
- Mfr. Part No.:
- A1080 29 230
- Manufacturer:
- Agro
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details

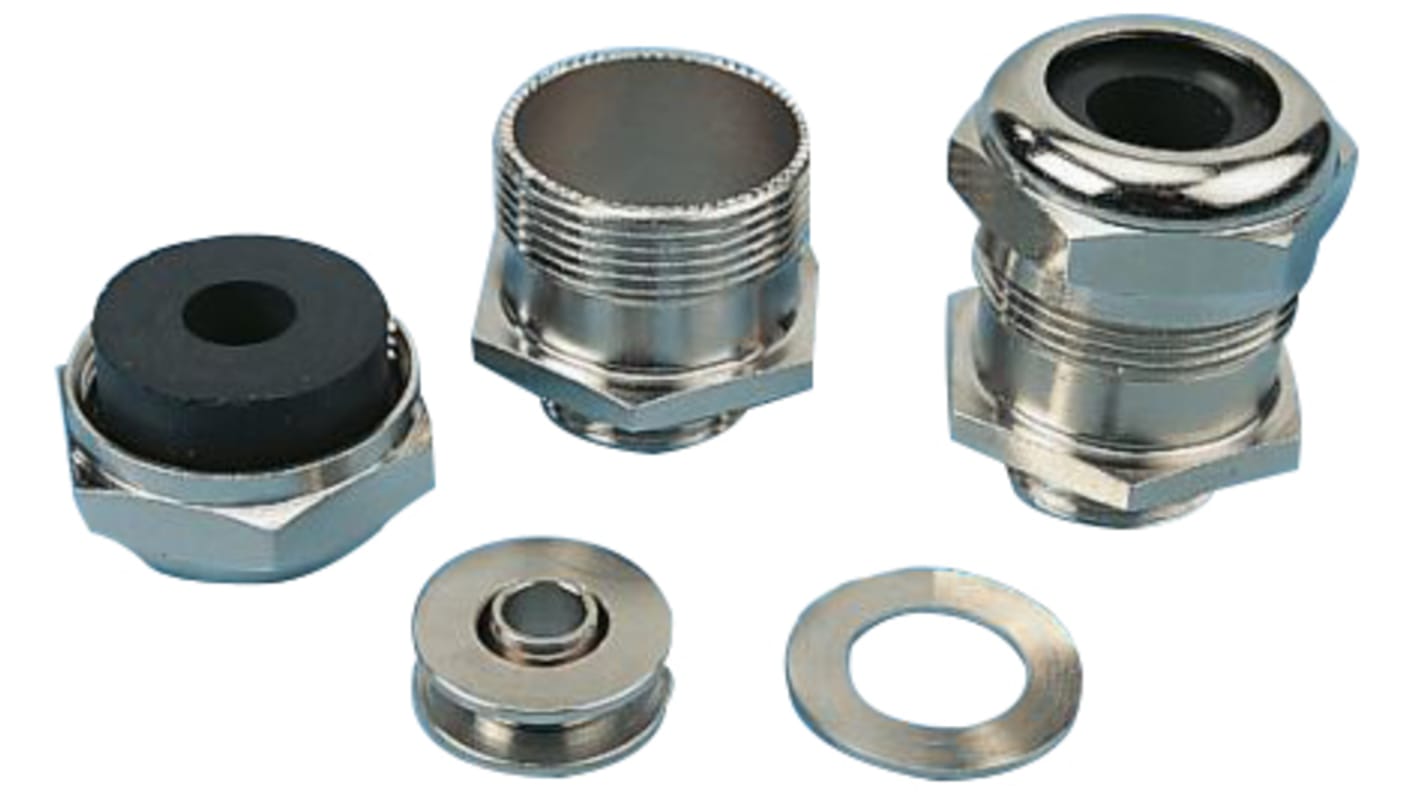

Agro Cable glands for Screened Cables
The Agro cable glands are designed as electromagnetic protection for screened cables.
Magnetic fields, electrical impulses and all interference voltage are directed to the earthing ring by the braid (in accordance with DIN 89345), and subsequently to the threaded connector.
Features and Benefits
Easy installation
Thread size = PG16 to PG36
Tear and immersion resistant.
Nickel plated brass
IP68
Short connection thread PG
One piece sealing insert
Very good shield contact via the contact sleeve with shielding braid ending in the cable gland
Specifications
Attribute | Value |
|---|---|
| Thread Size | PG29 |
| Maximum Cable Diameter | 23mm |
| Minimum Cable Diameter | 19mm |
| Material | Nickel Plated Brass |
| Colour | Metallic |
| Series | Progress MS EMC Rapid |
| IP Rating | IP68 |
| Locknut Included | No |
| Maximum Operating Temperature | +100°C |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +100 °C |
