RS PRO Expandable Braided Nickel Plated Copper Cable Sleeve, 6mm Diameter, 100m Length
- RS Stock No.:
- 181-2013
- Manufacturer:
- RS PRO
2 In stock for delivery within 2 working days
Added
Price 1 Reel of 100 Metre(s)
€554.33
(exc. VAT)
€681.83
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | €554.33 | €5.543 |
| *price indicative | ||
- RS Stock No.:
- 181-2013
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

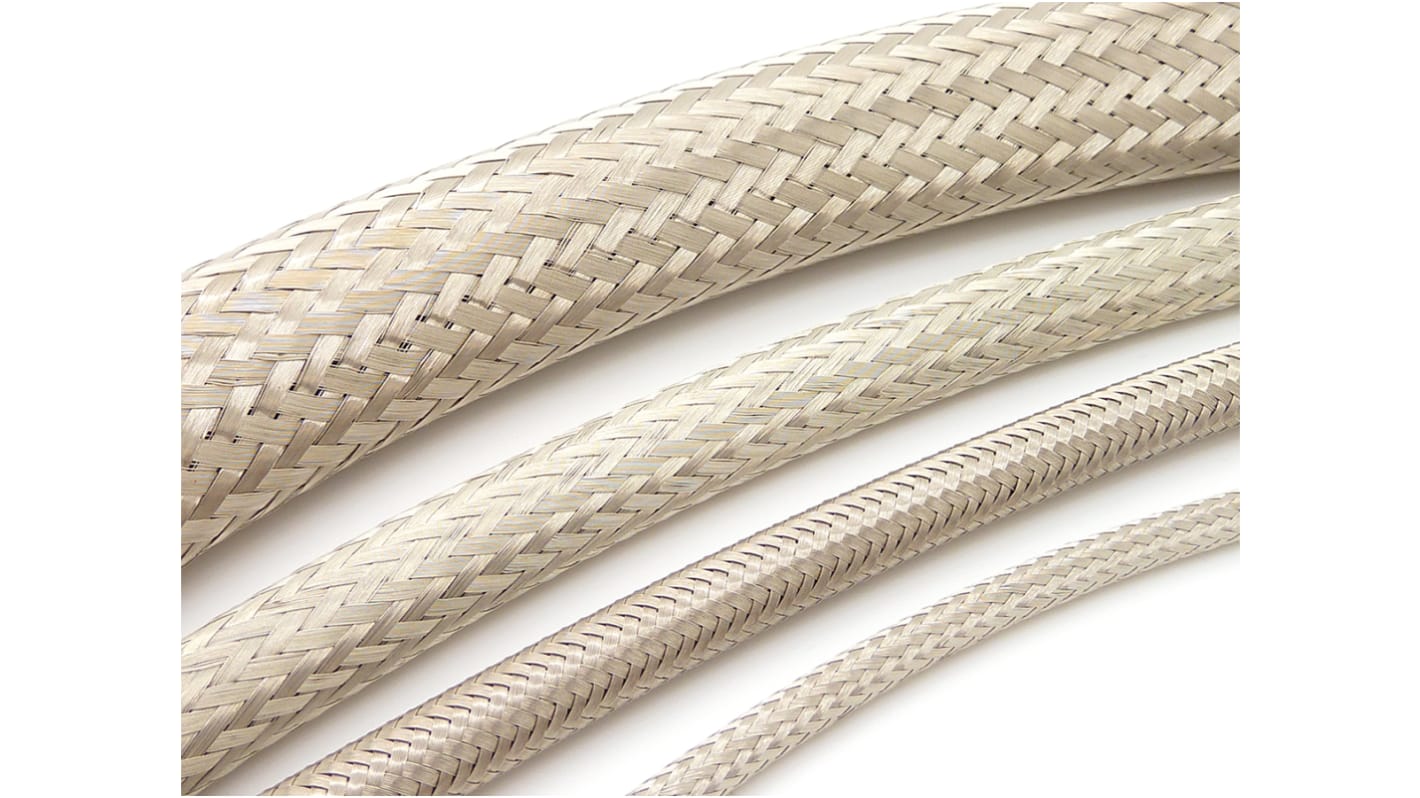

RS PRO Metal Screening Braid
The RS PRO 6mm screening braid provides exceptional protection for wire and cable harnesses from electromagnetic, electrostatic and radio frequency interference. It is a nickel-plated copper braid and is supplied on an internal former to aid installation and maintain the shape and form of the braid in transit and before installation.
Features and Benefits
• 24 carriers
• High expansion ratio
• Operating temperature ranges between -65°C and 260°C
• Up to 99% optical coverage
• High expansion ratio
• Operating temperature ranges between -65°C and 260°C
• Up to 99% optical coverage
Applications
• Electrical insulation and protection
• Industrial electrical network
• Industrial electrical network
Certifications
• ANSI/ESD S20.20:2014
• BS 2848 180T
• BS EN 61340-5-1:2007
• REACH compliant
• BS 2848 180T
• BS EN 61340-5-1:2007
• REACH compliant
Specifications
Attribute | Value |
|---|---|
| Sleeve Diameter | 6mm |
| Material | Nickel Plated Copper |
| Sleeve Length | 100m |
| Braided | Yes |
| Expandable | Yes |
| Minimum Cable Diameter | 4.5mm |
| Maximum Cable Diameter | 9.5mm |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +260°C |
