- RS Stock No.:
- 753-8543
- Mfr. Part No.:
- 151-10914 QM20A-PA66-BK
- Manufacturer:
- HellermannTyton
4 Within 1 working day(s) (IE stock)
15 Within 2 working day(s) (EU stock)
Added
Price 1 Bag of 100
€48.43
(exc. VAT)
€59.57
(inc. VAT)
Bag(s) | Per Bag | Per unit* |
1 - 14 | €48.43 | €0.484 |
15 - 49 | €46.00 | €0.46 |
50 + | €43.59 | €0.436 |
*price indicative |
- RS Stock No.:
- 753-8543
- Mfr. Part No.:
- 151-10914 QM20A-PA66-BK
- Manufacturer:
- HellermannTyton
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

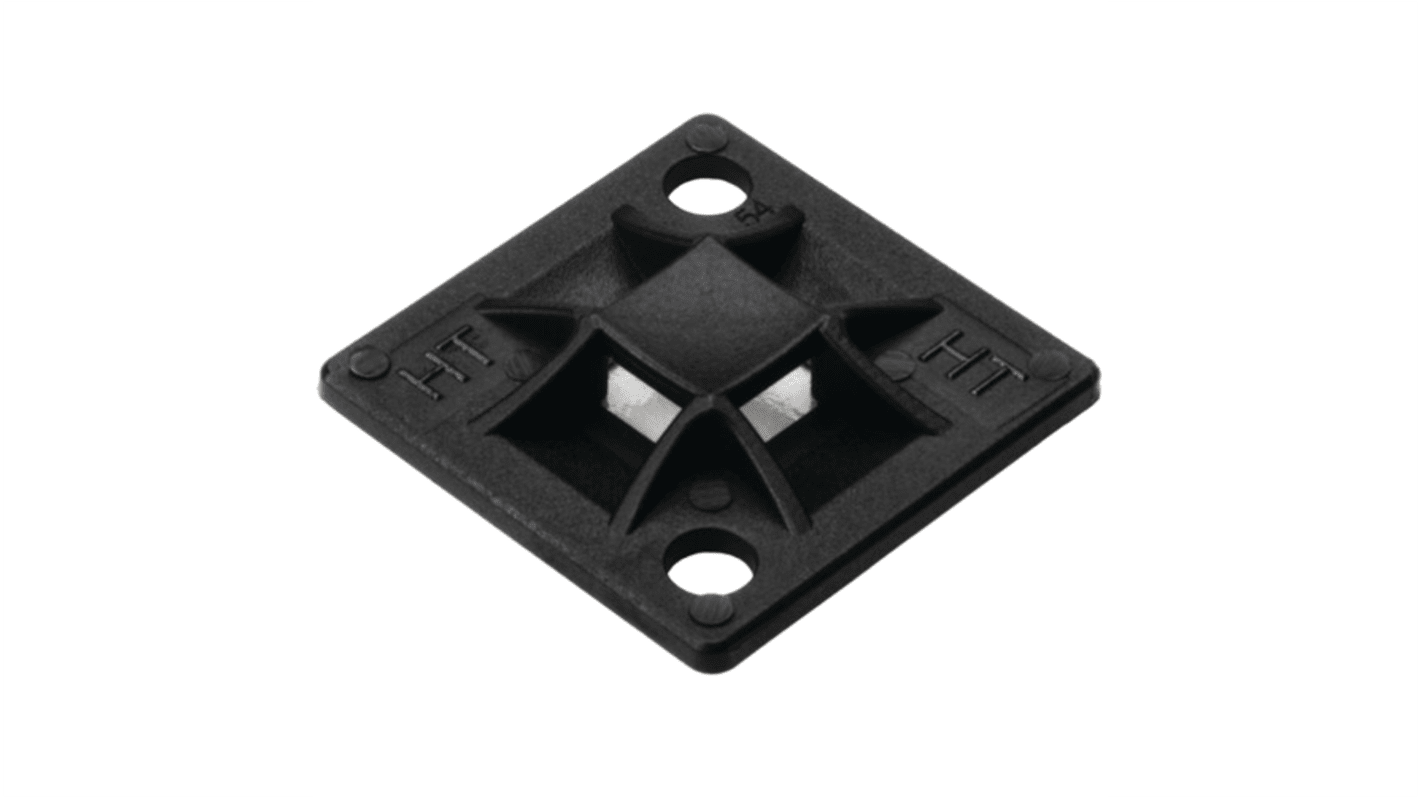

HellermannTyton Cable Tie Mount
The HellermannTyton Q series black cable tie mount is made of nylon66(PA66). It has a fixing hole diameter of 3.1mm, strap width of maximum 4mm, length of 20mm and width of 20mm. The Q-mount allows a 4-way entry for Q-ties and is available in a screwable version that offers a perfect solution with the Q-tie cable ties.
Features and Benefits
Locks cable tie in vertical position, the hands are free to apply cables
Operating temperature ranging between -40°C and 60°C
Adhesive with a high pull-off force
Q-mount base locks the Q-tie in vertical position, your hands are free to apply the cables
Offers a perfect solution with Q-tie cable ties
Operating temperature ranging between -40°C and 60°C
Adhesive with a high pull-off force
Q-mount base locks the Q-tie in vertical position, your hands are free to apply the cables
Offers a perfect solution with Q-tie cable ties
Applications
Automotive industry
Electronic industry
Electronic industry
Specifications
Attribute | Value |
---|---|
Colour | Black |
Cable Tie Width Acceptance | 4mm |
Length | 20mm |
Width | 20 mm |
Fixing Hole Diameter | 3.1mm |
Self Adhesive | Yes |
Material | Polyamide 6.6 (PA66) |
Series | QM |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Quantity | 100 |
