- RS Stock No.:
- 468-4725
- Mfr. Part No.:
- RL90-18/56
- Manufacturer:
- ebm-papst
- RS Stock No.:
- 468-4725
- Mfr. Part No.:
- RL90-18/56
- Manufacturer:
- ebm-papst
Technical data sheets
Legislation and Compliance
Product Details

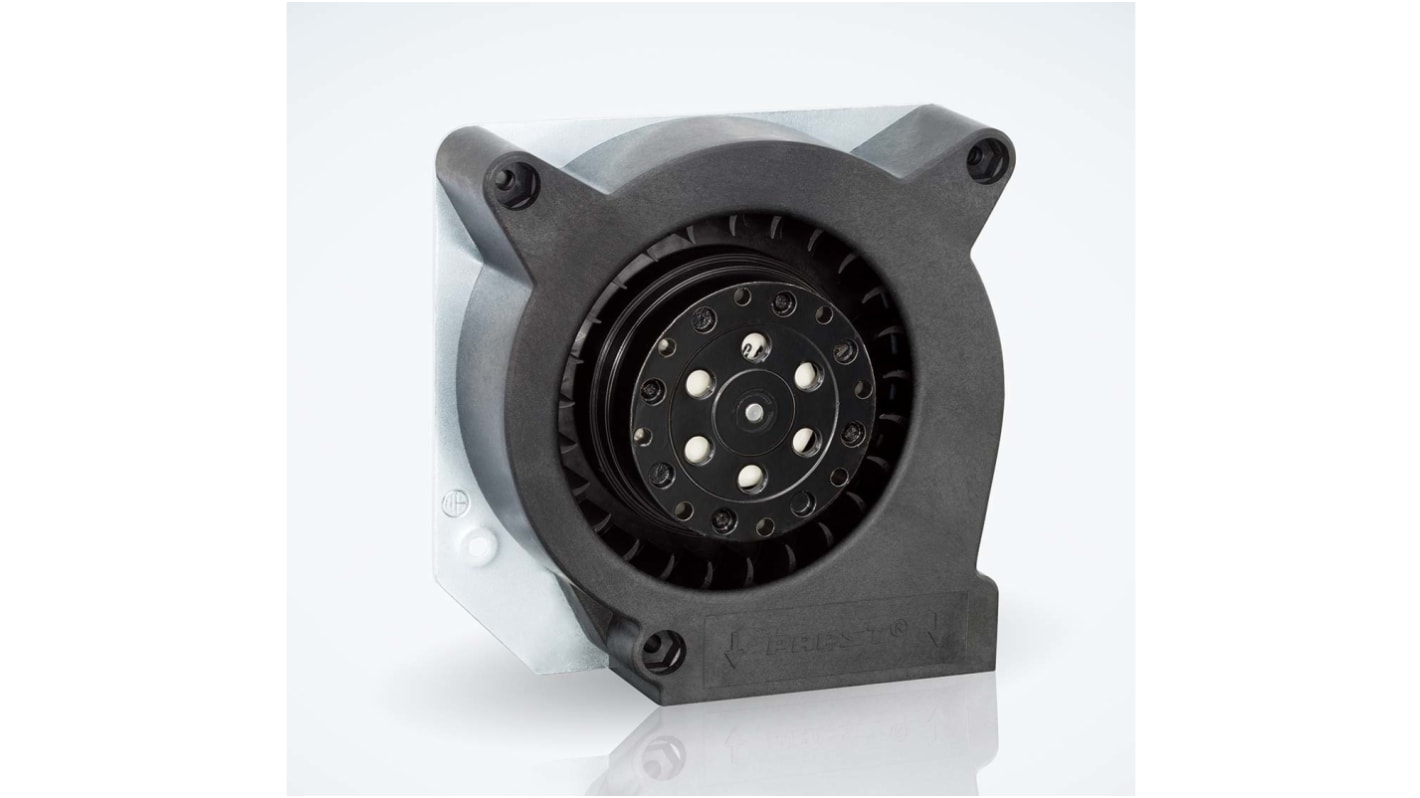

ebm-papst Centrifugal Fan
The ebm-papst centrifugal fan has an airflow of 40m³/h and a supply voltage rating of 230VAC. It is enabled with a speed signal, a ball bearing and a wire leaded power connection. It has a scroll housing made up of fibreglass-reinforced plastic and a fibreglass-reinforced plastic impeller. It is 120.6mm long, 120.6mm wide and 37mm deep. Centrifugal air exhaust discharge through a window in housing direction of airflow with single strands 22AWG, connection leads and the forward-curved impeller. The AC axial compact fan is suitable for high air performance with moderate pressure build-up.
Features and Benefits
Airflow is at right angles to the intake
High static pressure capabilities
Connections are wire ended
Locked rotor protection
Ball bearing type
High temperature low power operation
Protection against reverse polarity and blocked rotor
High static pressure capabilities
Connections are wire ended
Locked rotor protection
Ball bearing type
High temperature low power operation
Protection against reverse polarity and blocked rotor
Applications
Central air conditioning units or building ventilation systems
Automobile
Railway
Electronic products
Medical treatment
Household
Ventilation
Air conditioning
Refrigeration system
Automobile
Railway
Electronic products
Medical treatment
Household
Ventilation
Air conditioning
Refrigeration system
Certifications
UL approved
CSA certified
VDE approved
CE certified
IP54 rated
CSA certified
VDE approved
CE certified
IP54 rated
Specifications
Attribute | Value |
---|---|
Supply Voltage | 230 V ac |
Blower Type | Centrifugal |
AC or DC Operation | AC |
Air Flow | 40m³/h |
Series | RL 90 N |
Height | 120.6mm |
Width | 120.6mm |
Depth | 37mm |
Dimensions | 120.6 x 120.6 x 37mm |
Fan Speed | 2450rpm |
Noise Level | 56dB |
Bearing Type | Ball |
Mounting Hole Spacing | 104.8 x 100.8mm |
IP Rating | IP20 |
Direction of Curve | Radial |
Mounting Hole Diameter | 4.2mm |
Vertical Hole Spacing | 104.8mm |
Horizontal Hole Spacing | 100.8mm |
Termination Type | Lead Wire |
