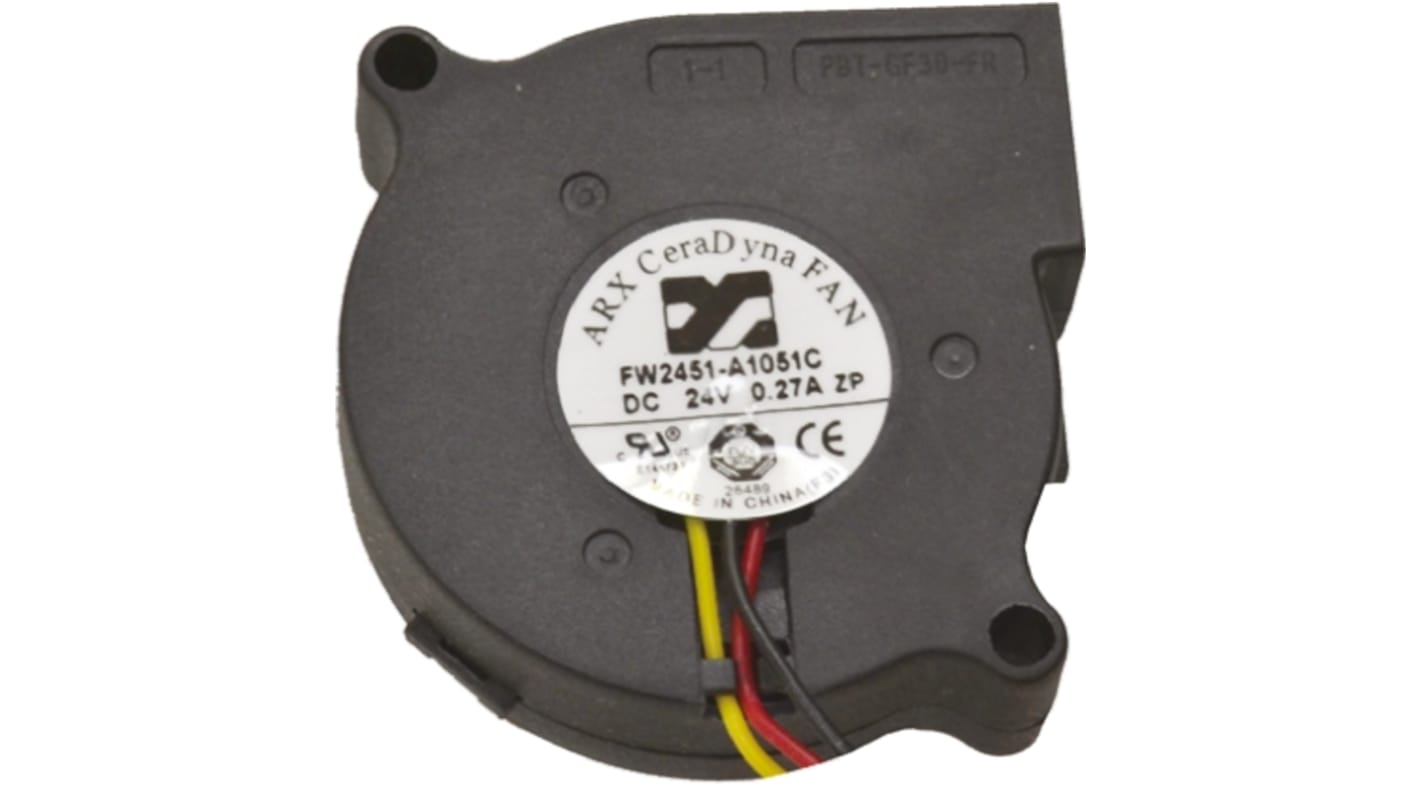

ARX CeraDyna Series Centrifugal Fan, 24 V dc, 6.97m³/h, DC Operation, 51 x 51 x 15mm
- RS Stock No.:
- 787-8960
- Mfr. Part No.:
- FW2451-A1051C2AL
- Manufacturer:
- ARX
996 In stock for delivery within 2 working days
Added
Price Each
€13.71
(exc. VAT)
€16.86
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €13.71 |
| 5 - 11 | €12.78 |
| 12 - 24 | €12.08 |
| 25 - 49 | €11.28 |
| 50 + | €10.29 |
- RS Stock No.:
- 787-8960
- Mfr. Part No.:
- FW2451-A1051C2AL
- Manufacturer:
- ARX
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
ARX Ceramic Blower
The ARX 24VDC ceramic bearing blower is a high tech device constructed using a toughened ceramic material. This is mainly to provide a superior reduction of characteristics in both wear and friction. This blower is quiet and has a long service life. This device will outlast ball bearing blowers at a high speed. Ceramic bearing type provides improved performance. It is resistant to heat and humidity. This system does not use oil as a lubricant for its operation.
Features and Benefits
Self-polishing surface
Resistant to heat and humidity
Low friction
Fan speed is 5500rpm
Airflow is 6.97m³/hour
Static pressure of 0.63in/H2O
Life expectancy of 3,00,000 hours
Resistant to heat and humidity
Low friction
Fan speed is 5500rpm
Airflow is 6.97m³/hour
Static pressure of 0.63in/H2O
Life expectancy of 3,00,000 hours
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 24 V dc |
| Blower Type | Blower |
| AC or DC Operation | DC |
| Air Flow | 6.97m³/h |
| Series | CeraDyna |
| Height | 51mm |
| Width | 51mm |
| Depth | 15mm |
| Dimensions | 51 x 51 x 15mm |
| Fan Speed | 5500rpm |
| Noise Level | 37dB(A) |
| Bearing Type | Sleeve |
| Direction of Curve | Forward |
| Maximum Current | 270mA |
| Static Pressure | 0.63in/H2O |
| Horizontal Hole Spacing | 40.7mm |
| Vertical Hole Spacing | 40.7mm |
| Mounting Hole Diameter | 4.4mm |
| Sensor Type | Open Collector |
| Termination Type | Lead Wire |
