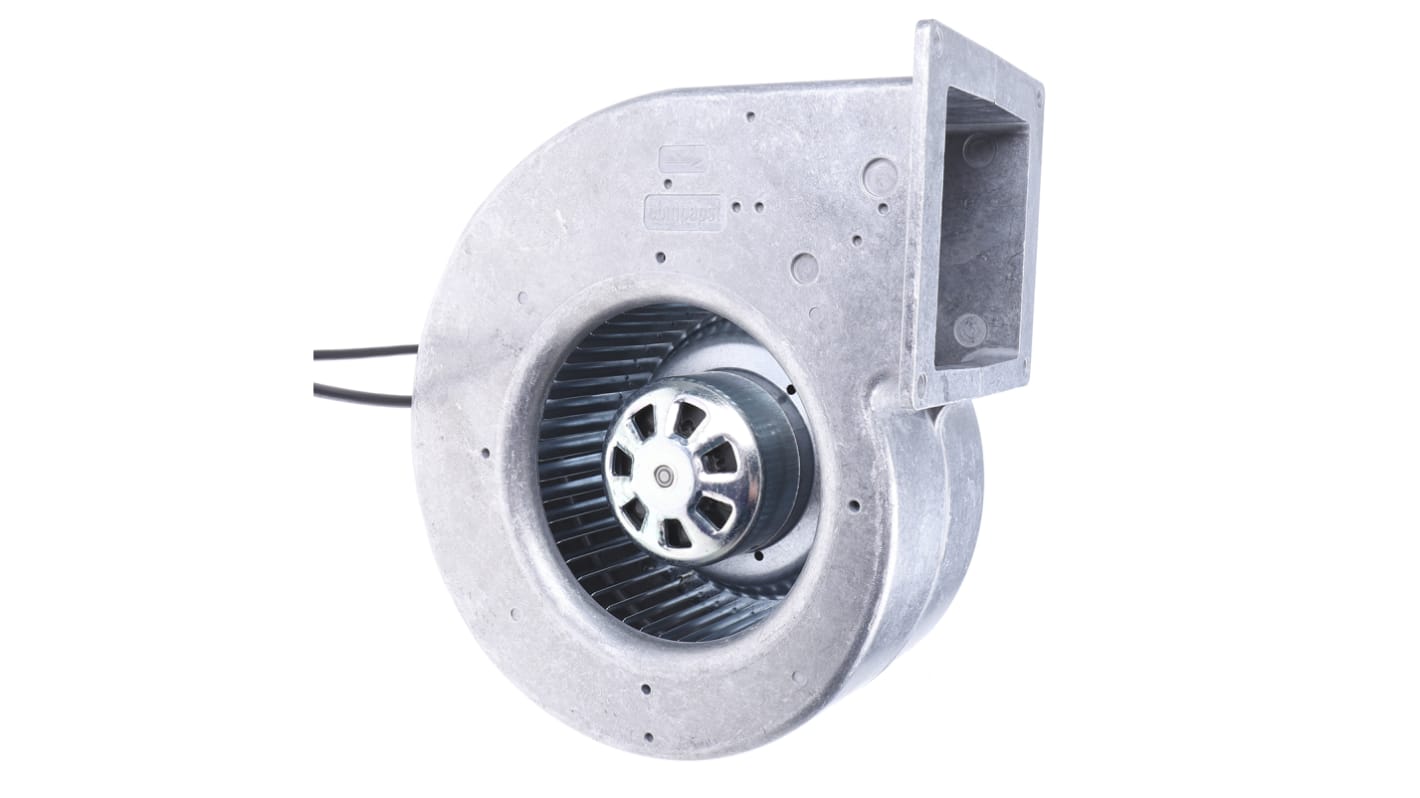

ebm-papst Centrifugal Fan 248.5 x 227 x 130mm, 650m³/h, 200 → 240 V ac AC (G3G Series)

  • RS Stock No. 841-4909
  • Mfr. Part No. G3G146-FK07-02
  • Manufacturer ebm-papst
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

ebm-papst EC Single Inlet Centrifugal Blowers

The ebm-papst EC single inlet centrifugal blower series, with forward curved blades, offer a reliable and versatile solution to a variety of requirements. The scroll housing is open on one side. Characteristic features include high energy efficiency, a low noise level, relatively small air flow with a high increase in static pressure, robust design and space-saving application.

ErP 2015 compliant
Fitted with highly efficient GreenTech EC motor
Intelligent electronics for numerous control functions
Wide voltage range
Robust design and maintenance free operation
Long service life
Suitable for a wide range of high pressure applications

Specifications
Attribute Value
Supply Voltage 200 → 240 V ac
Blower Type Centrifugal
AC or DC Operation AC
Air Flow 650m³/h
Series G3G
Height 248.5mm
Width 227mm
Depth 130mm
Dimensions 248.5 x 227 x 130mm
Fan Speed 2320rpm
Noise Level 70dB
Bearing Type Ball
Mounting Hole Spacing 105 x 115mm
Commutation Type Electronic
Mounting Hole Diameter 6.3mm
Sensor Output Type Open Collector
Horizontal Hole Spacing 115mm
Vertical Hole Spacing 105mm
Direction of Curve Forward
48 In stock for delivery within 2 working days
Unit of sale: Each
537.54
(exc. VAT)
661.17
(inc. VAT)
units
Per unit
1 - 4
€537.54
5 - 9
€470.35
10 - 19
€430.03
20 +
€398.78
