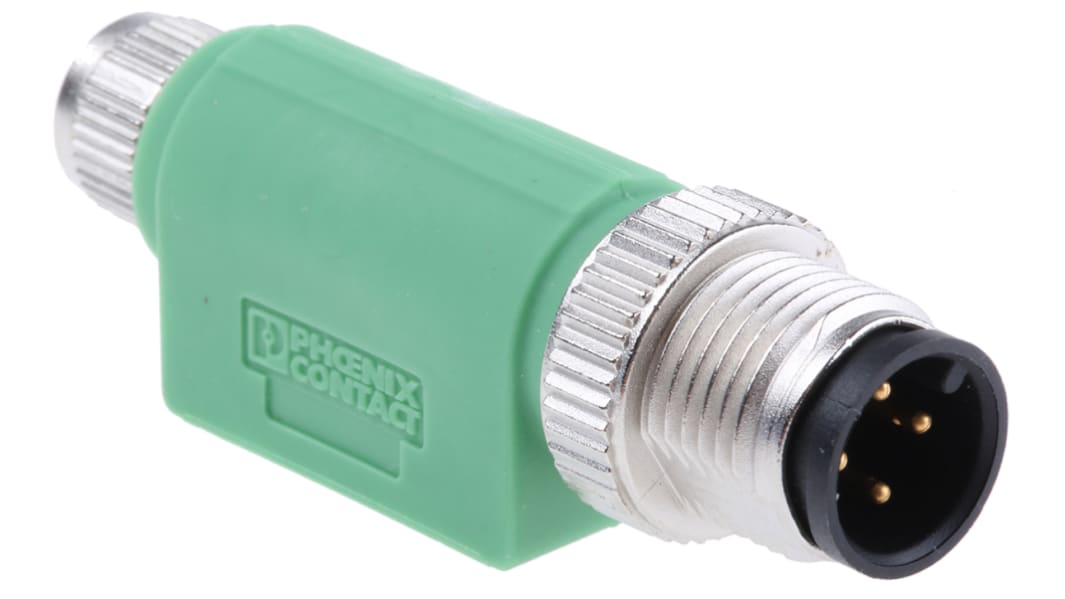

Phoenix Contact 4 Pole M12 Plug to 4 Pole M8 Socket Adapter

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

SAC-3P Straight M8 adapters Phoenix Contact

These SAC-3P adapters from Phoenix Contact are a range of M8 to M12, or M12 to M8 adapters that are perfect for either permanent solutions or quick, field connections. They're a standard coding 'A' and come backed by an excellent IP67 rating when mated with other connectors for versatile uses. Not to mention, they can work in harsh conditions.

The easy plugin system allows effortless connection of sensor and actuator cables to have your systems up and running in a fraction of the time than splicing other circular connectors onto cables. SAC-3P adapters have been built with quality in mind, as the housing is built from durable plastic, with zinc metal knurls holding the connectors in place.

Features and benefits:

  • Provides effortless connection for sensor & actuator cables

  • IP67 rated

  • Made of premium materials to ensure this adapter lasts

  • 60 V rated voltage

  • Brilliant for off-site and on-site applications

Phoenix Contact - PLUSCON field

Specifications
Attribute Value
End 1 M12
End 1 Number of Contacts 4
End 1 Number of Ports 1
End 1 Gender Male
End 2 4 Pin Female M8 (1)
End 1 Size M12
End 2 Number of Contacts 4
End 2 Number of Ports 1
End 2 Gender Female
End 2 Size M8
Current Rating 4A
IP Rating IP65, IP67
Voltage Rating 30 V
Body Orientation Straight
Contact Plating Gold over Nickel
Maximum Operating Temperature +90°C
Contact Material Copper Tin Alloy
Shell Plating Nickel
Minimum Operating Temperature -25°C
Length 50.5mm
54 In stock for delivery within 2 working days
Unit of sale: Each
16.78
(exc. VAT)
20.30
(inc. VAT)
units
Per unit
1 - 14
€16.78
15 - 49
€14.55
50 - 99
€12.61
100 - 249
€11.65
250 +
€10.86
