RS PRO Connector Bracket & Joint Angle Bracket, strut profile 76 x 76 x 38 mm, Groove Size 8mm

  • RS Stock No. 767-5698
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

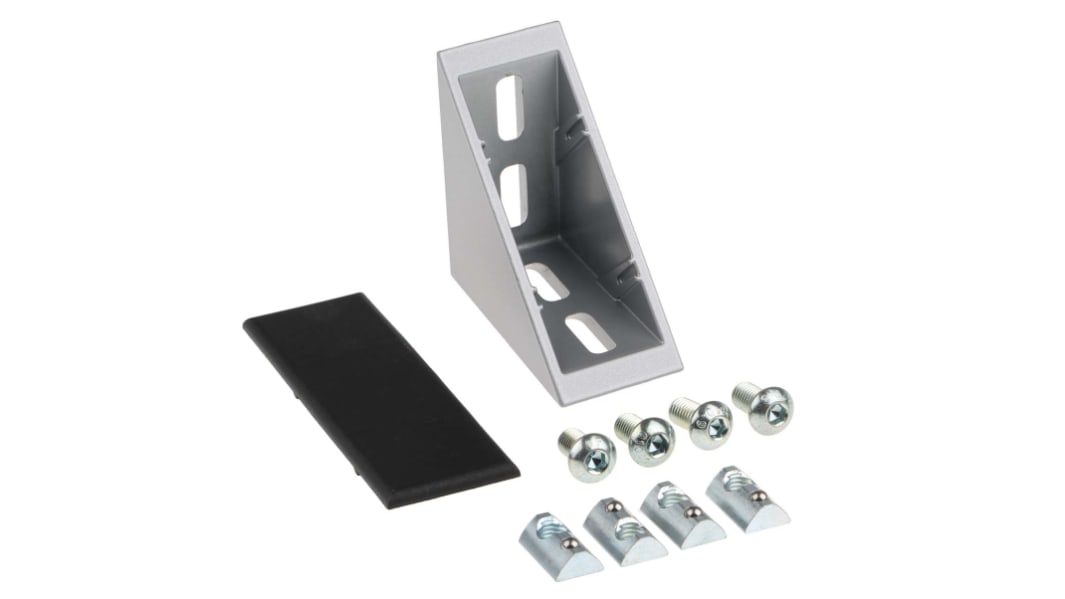

RS PRO Angle Bracket with Cap Set

RS PRO offers this great connector bracket and joint angle to fit 40 x 40 x 40 mm strut profiles with a groove size of 8 mm. These connecting sets provide the angle bracket to secure structural profiles along with a decorative cap. The angle bracket components are compatible with a range of profiles.

Application

The brackets have a centre lug to enable rapid and precise assembly with protection against turning. Guide tabs ensure proper alignment in the profiles T-slot. The tabs can easily be removed if a cross connection of profiles.

Features and Benefits

Allows for a sturdy connection without profile end finishing Can be easily removed and reused
Die-Cast Zinc construction for hard wearing uses

Compatible Strut Profiles

RS PRO Aluminium Strut - 80x80 mm, 8 mm Groove, 2000 mm Length - 8508505

RS PRO Aluminium Strut - 80x80 mm, 8 mm Groove, 3000 mm Length - 8508509

RS Structural System Profile Accessories

RS Structural System Profile Accessories include Cube Connectors, T-slot Nuts, Ball Catches, Turn Locks, Self Tapping Screws, Earthing Terminals, Cover Caps, and many other items. RS Structural System Profile Accessories are entirely compatible with Item Profile 6 and Profile 8 structural system components. RS Profile accessories are suitable for general workplace furniture system construction, offering light-weight, strong, easily interchangeable elements for a variety of profile types. The RS Structural System Profile Accessories form part of a modular system of components that may be constructed to form a wide variety of furniture structures, such as guarding enclosures, work benches, general enclosures, and other workplace fixtures.

Specifications
Attribute Value
Structural Element Type Connector Bracket & Joint
Connector Type Connection Angle
Fits Groove Size 8mm
Fits Strut Profile 40 mm
Product Family RS Structural System
Material Die Cast Zinc
Product System 40
18 Within 1 working day(s) (IE stock)
475 Within 2 working day(s) (EU stock)
Unit of sale: Each
11.68
(exc. VAT)
14.37
(inc. VAT)
units
Per unit
1 - 4
€11.68
5 - 9
€11.33
10 +
€10.96
