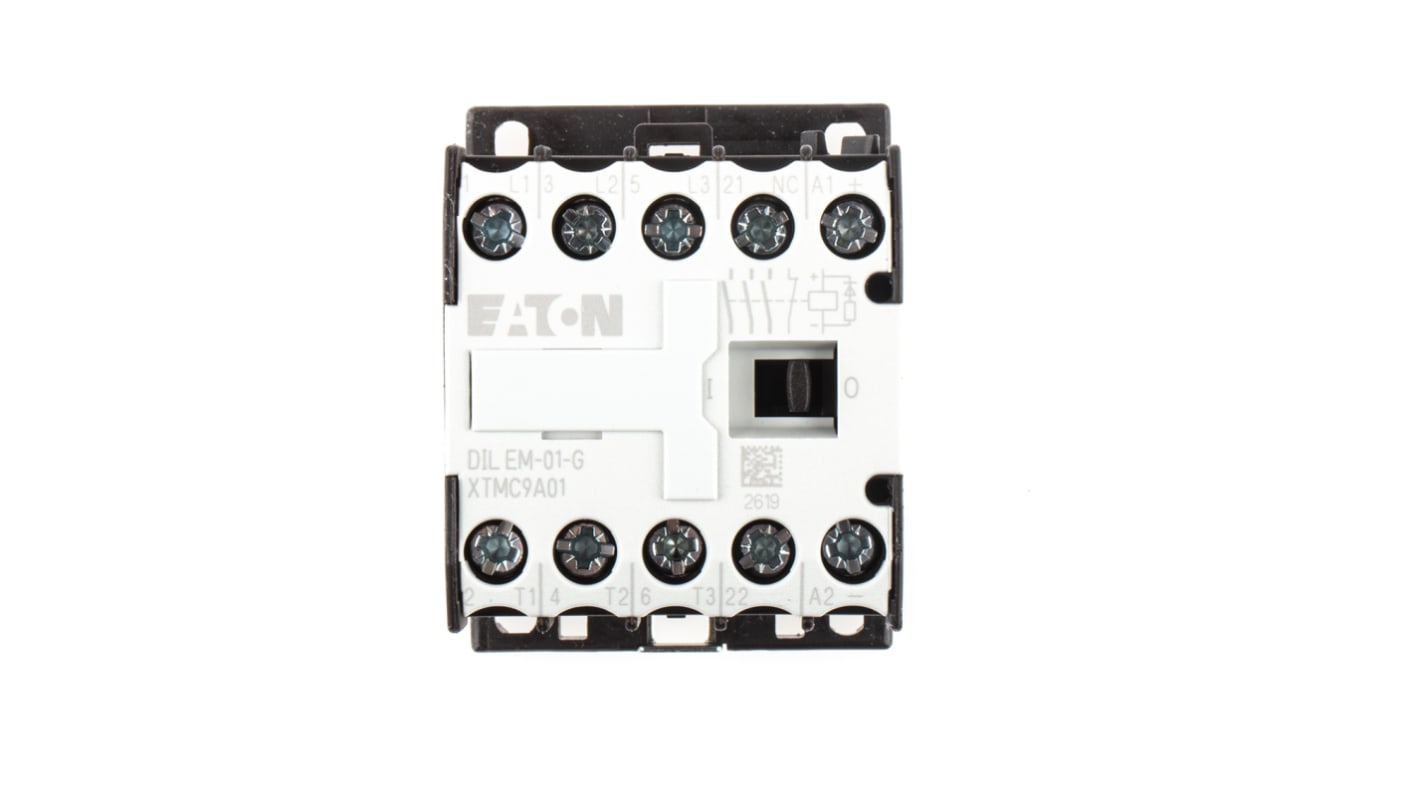

Eaton Contactor, 24 V dc Coil, 3-Pole, 9 A, 4 kW, 3NO, 400 V ac
- RS Stock No.:
- 467-9341
- Mfr. Part No.:
- 010343 DILEM-01-G(24VDC)
- Manufacturer:
- Eaton
3 Within 1 working day(s) (IE stock)
124 Within 2 working day(s) (EU stock)
Added
Price Each
€51.60
(exc. VAT)
€63.47
(inc. VAT)
| Units | Per unit |
| 1 + | €51.60 |
- RS Stock No.:
- 467-9341
- Mfr. Part No.:
- 010343 DILEM-01-G(24VDC)
- Manufacturer:
- Eaton
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Eaton Contactor, 9A Contact Current Rating, 24V DC Coil Voltage - DILEM Series - 010343 DILEM-01-G(24VDC)
For reliable long-term performance, choose this contactor from Eaton to switch your power supply control unit. It's an electrical multitasker and is equally at home managing industrial automation, motor operations or mechanical engineering tasks. Three poles boost its connection potential, while an auxiliary contact helps to give backup when you need it. Thanks to its contact voltage rating of 400V AC, this contactor does the job in high-power settings. Because it has screw terminals, you can install it speedily without the need for specialist tools.
Features & Benefits
• IP20 rating indicates it's touch-proof and resistant to dust or small objects over 12mm
• Compact dimensions of 58 (L) x 83 (D) x 45mm (W), so it's a space-saving choice
• Mechanical lifespan of up to 20 million operations for long-term performance
• Compact dimensions of 58 (L) x 83 (D) x 45mm (W), so it's a space-saving choice
• Mechanical lifespan of up to 20 million operations for long-term performance
Can I use this contactor in harsh industrial conditions?
Yes. This unit operates in a broad temperature range between -25°C and +40°C, so it's suitable for use in harsh industrial conditions.
What's the maximum operating frequency I'll get?
This device handles up to 9,000 operations per hour, so it's suitable for demanding tasks that call for regular switching.
Note
Eaton formerly known as Moeller
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 24 V dc |
| Number of Poles | 3 |
| Contact Voltage Rating | 400 V ac |
| Contact Current Rating | 9 A |
| Range | xStart |
| Series | Eaton Moeller |
| Power Rating | 4 kW |
| Normal State Configuration | 3NO |
| Auxiliary Contact Configuration | 1NC |
| Number Of Auxiliary Contacts | 1 |
| Terminal Type | Screw |
| Width | 45mm |
| Length | 58mm |
| Depth | 83mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +40°C |
| Pole and Throw Configuration | 3P |
| Mounting Style | DIN Rail Mount |
| Control Voltage | 24 V dc |
