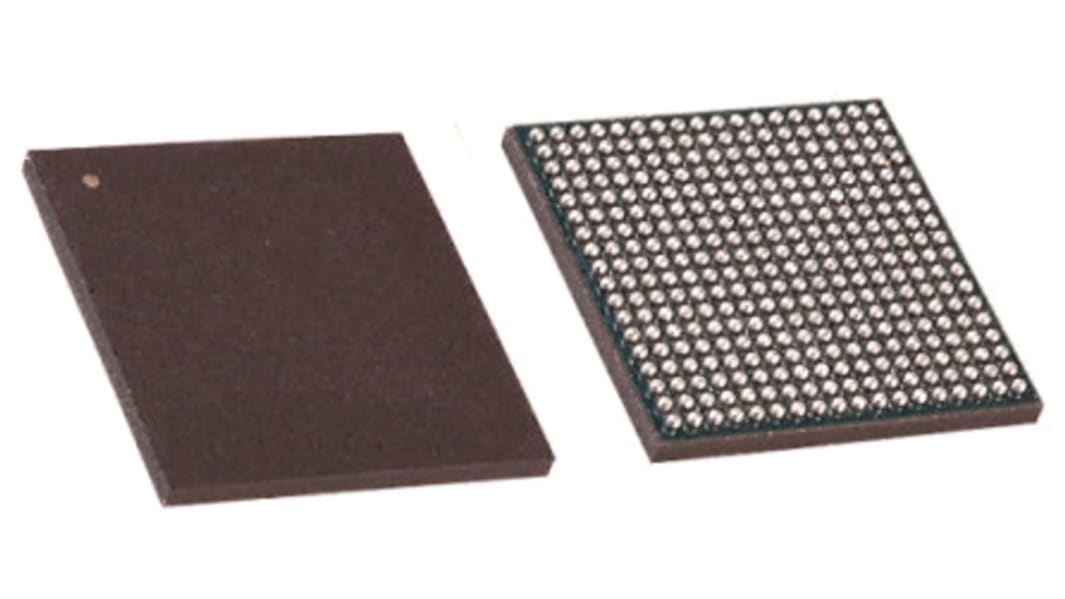

Altera 5M1270ZF324C5N, CPLD MAX V Flash 980 Cells, 271 I/O, 1270 Labs, 10ns, ISP, 324-Pin FBGA
- RS Stock No.:
- 830-3619
- Mfr. Part No.:
- 5M1270ZF324C5N
- Manufacturer:
- Altera
Temporarily out of stock - back order for despatch 12-11-2024, delivery within 2 working days
Added
Price Each
€23.33
(exc. VAT)
€28.70
(inc. VAT)
| Units | Per unit |
| 1 + | €23.33 |
- RS Stock No.:
- 830-3619
- Mfr. Part No.:
- 5M1270ZF324C5N
- Manufacturer:
- Altera
Technical data sheets
Legislation and Compliance
Product Details
MAX V device CPLD, Altera
Low-power, and non-volatile CPLD architecture
Instant-on (0.5ms or less) configuration time
Standby current as low as 25μA and fast power-down/reset operation
Fast propagation delay and clock-to-output times
Internal oscillator
Instant-on (0.5ms or less) configuration time
Standby current as low as 25μA and fast power-down/reset operation
Fast propagation delay and clock-to-output times
Internal oscillator
Specifications
Attribute | Value |
|---|---|
| Family Name | MAX V |
| Number of Macro Cells | 980 |
| Number of User I/Os | 271 |
| Memory Type | Flash |
| Number of Logic Blocks/Elements | 1270 |
| In System Programmability | In System |
| Mounting Type | Surface Mount |
| Package Type | FBGA |
| Minimum Operating Temperature | 0 °C |
| Pin Count | 324 |
| Maximum Operating Temperature | +85 °C |
| Propagation Delay | 10ns |
| Individual Output Enable Control | Yes |
| Dimensions | 19 x 19 x 1.25mm |
| Height | 1.25mm |
| Length | 19mm |
| Maximum Operating Supply Voltage | 1.89 V |
| Minimum Operating Supply Voltage | 1.71 V |
| Re-programmability Support | Yes |
| Width | 19mm |
| Propagation Delay Test Condition | 10pF |
