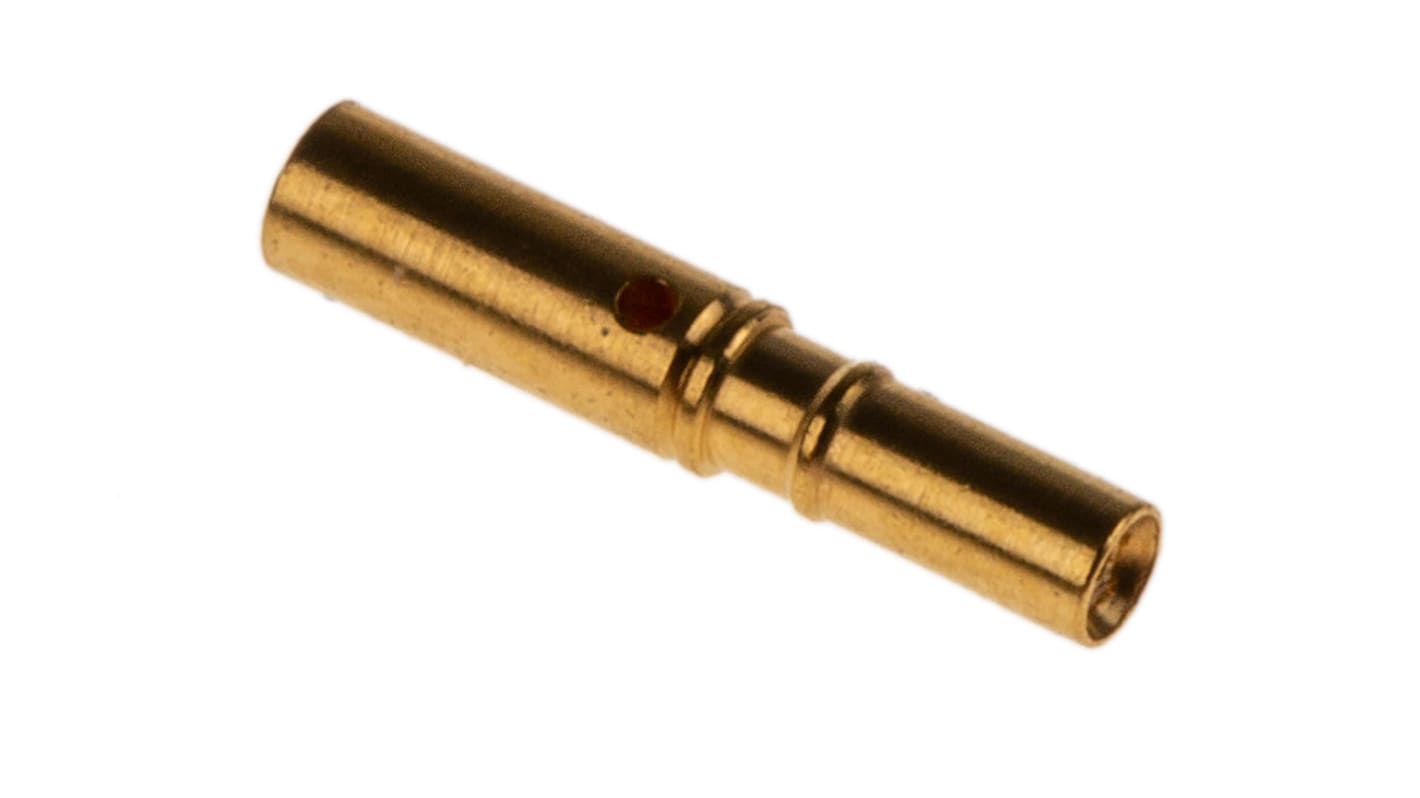

HARWIN, Datamate Female Crimp Terminal Contact 24AWG M80-0130005

  • RS Stock No. 511-658
  • Mfr. Part No. M80-0130005
  • Manufacturer HARWIN
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Harwin Datemate L-Tek Series Female Crimp Contacts

Datemate L-Tek series female crimp contacts for use in Datemate L-Tek series female crimp housings. These female crimp contacts are gold plated and are rear insertable into the connector. Stock number 511-654 is a large bore contact and accepts a wire size of 22 AWG. Stock number 511-658 is a small bore contact with a small bore indent groove that accepts a wire size range of 24 to 28 AWG.
For crimp tool see stock number 314-7604
For contact insertion and removal tool see stock number 511-759

2.0mm Datamate Series

The Datamate range is ideal for applications where safety is key, the application is subject to high loads of vibration, shock and acceleration or operates in harsh environments. These Datamate connectors are highly durable and can withstand high numbers of mating cycles without any degradation in performance. This performance is made possible by Harwin’s use of High Reliability four finger Beryllium Copper contacts in the Datamate range. These contacts feature a 4 finger clip to ensure integrity of connection under the most severe conditions.

Polarised mouldings
High reliability connector system
The L-Tek Datamate connectors are available with or without Latches.
Mates with known industry equivalents
Suited for COTS applications
Complies with BS9525-F0033/MIL C 55302/CEC 75101-008

Specifications
Attribute Value
Gender Female
For Use With Datamate L-Tek, J-Tek and Mix-Tek Connector Housings
Series Datamate
Termination Method Crimp
Maximum Wire Size mm² 0.2mm²
Contact Plating Gold
Minimum Wire Size AWG 28AWG
Contact Material Beryllium Copper
Maximum Wire Size AWG 24AWG
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C
