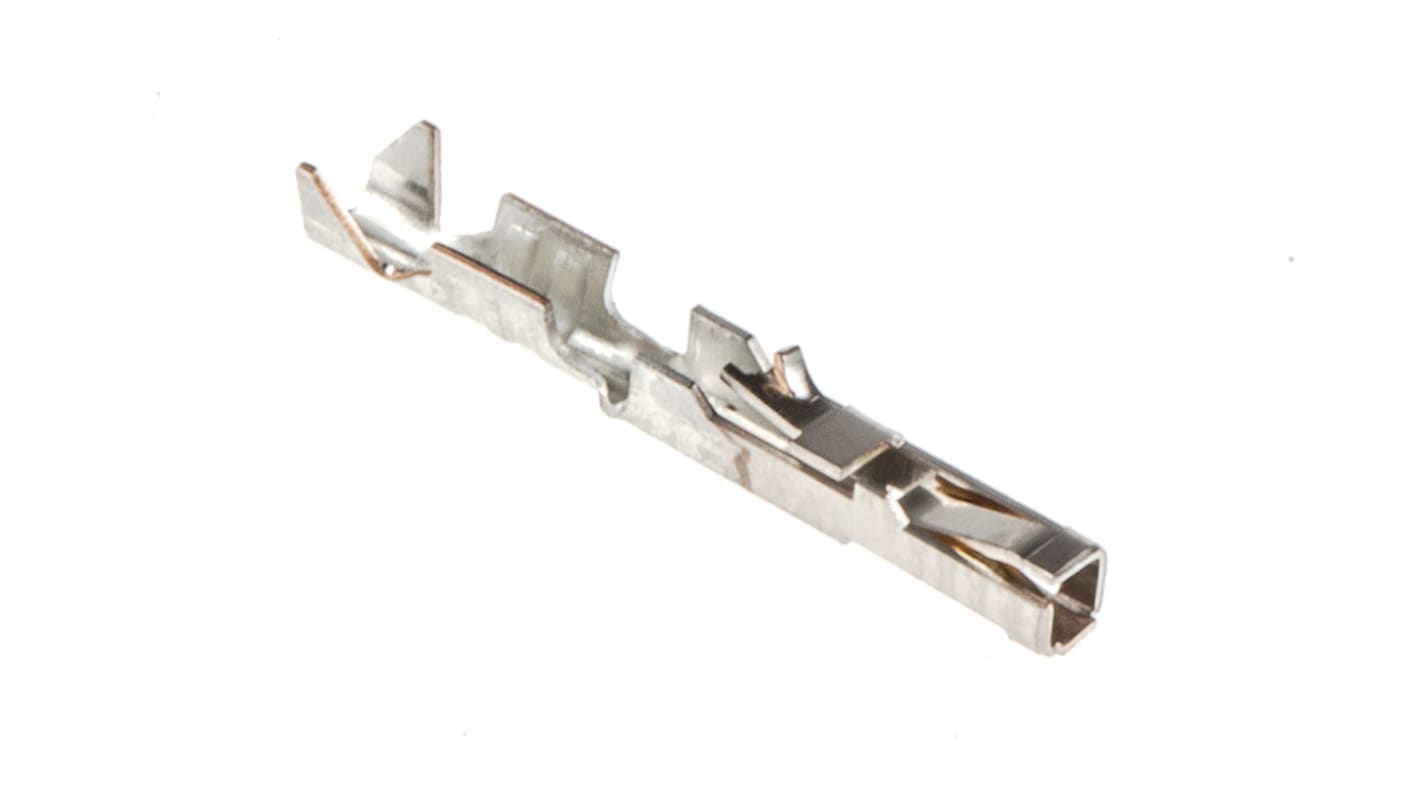

90119-2110 Molex C-GRID III Female Crimp Terminal Contact 22AWG

  • RS Stock No. 360-6869
  • Mfr. Part No. 90119-2110
  • Manufacturer Molex
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IE
Product Details

Molex C-Grid III Crimp Terminals - 90119 Series

C-Grid III 90119 series female crimp terminals for use in C-Grid III 90156, 90123, 90142, 90143 and 90160 series crimp housings. These C-Grid III crimp receptacles terminals have a box design and a uniform locking system that enables them to be used inside different housing styles. The contacts are made from phosphor bronze with a choice of gold or tin plating and suitable for use with wire size ranges of 24-22 AWG or 28-26 AWG.
For suitable crimp tools see stock number 781-2728 for 24-22 AWG terminals and 781-2737 for 28-26 AWG terminals. An extraction tool (stock number 360-6897) and an insertion tool (stock number 360-6881) are also available.

Features:

• Current Rating: 3A max
• Working Voltage: 350 Vac/dc max
• Contact Plating: Selective Gold over Nickel or Tin over Nickel
• Insulation Material Headers: 15% Glass-filled Polyester (PBT)
• Housing: Polyphenylene Oxide
• Header Pin Size: 0.64 square mm
• Recommended PCB Hole Diameter: 1mm

Application:

• Consumer Electronics
• Commercial Vehicles

C-Grid III Crimp Terminal, 22-24 AWG, Reel, 0.38μm Selective Gold (Au)

2.54mm Molex C-Grid III Range

Specifications
Attribute Value
Gender Female
For Use With C-Grid III Connector Housing
Series C-Grid III
Minimum Wire Size mm² 0.2mm²
Termination Method Crimp
Maximum Wire Size mm² 0.35mm²
Contact Plating Gold
Minimum Wire Size AWG 24AWG
Maximum Wire Size AWG 22AWG
Contact Material Phosphor Bronze
Series Number 90119
300 Within 1 working day(s) (IE stock)
25100 Within 2 working day(s) (EU stock)
Unit of sale: Each (In a Pack of 100)
0.241
(exc. VAT)
0.296
(inc. VAT)
units
Per unit
Per Pack*
100 - 900
€0.241
€24.10
1000 - 2900
€0.172
€17.20
3000 +
€0.155
€15.50
*price indicative
