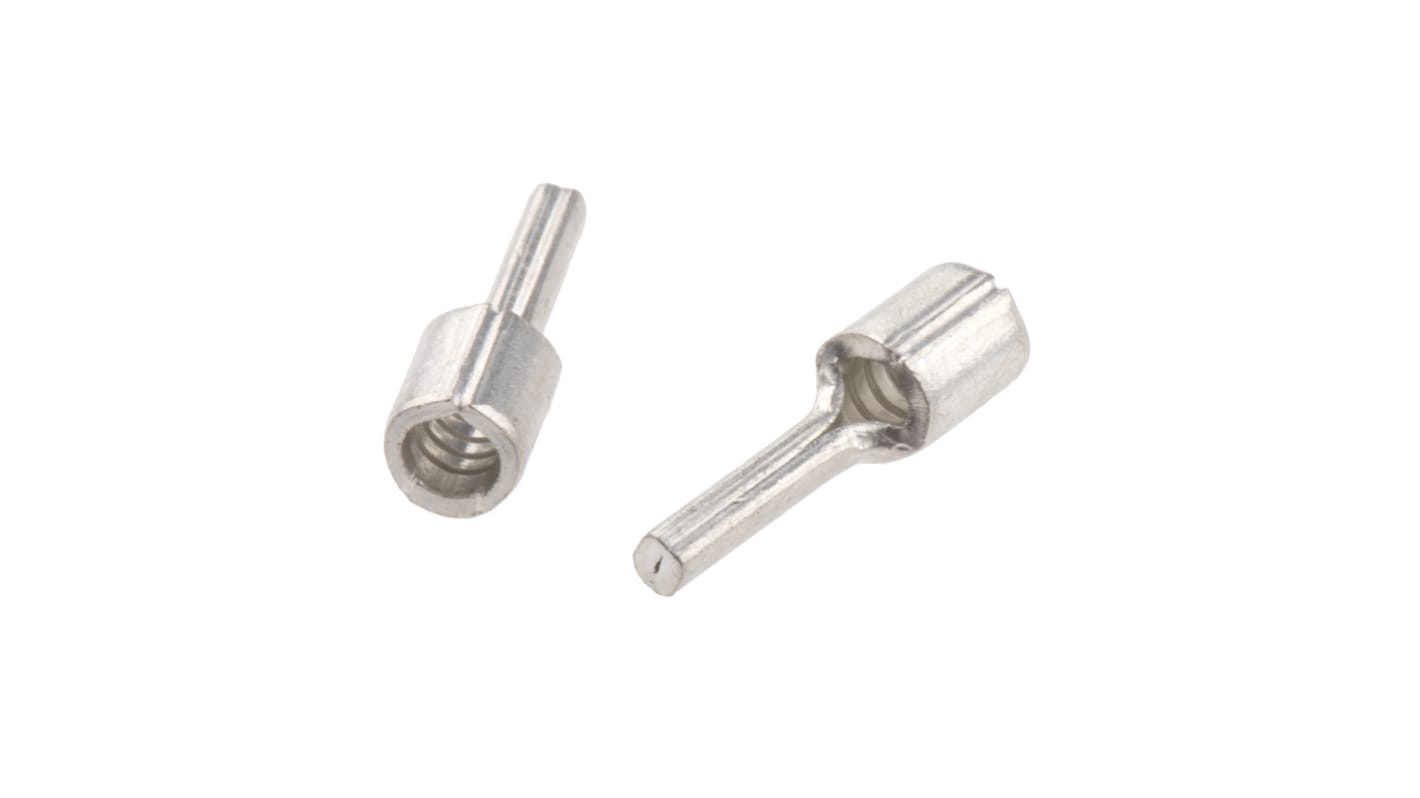

RS PRO Uninsulated Crimp Pin Connector, 1.5mm² to 2.5mm², 16AWG to 14AWG, 1.9mm Pin Diameter, 9mm Pin Length

  • RS Stock No. 809-2350
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

RS Uninsulated Crimp Wire Pin Terminals

Uninsulated crimp wire pin terminals made from copper with a brazed seam. These non-insulated crimp wire pin terminals are available with a variety of wire sizes.

Specifications
Attribute Value
Insulation Uninsulated
Minimum Wire Size mm² 1.5mm²
Maximum Wire Size mm² 2.5mm²
Overall Length 13.8mm
Minimum Wire Size AWG 16AWG
Maximum Wire Size AWG 14AWG
Shrouded/Unshrouded Unshrouded
Pin Diameter 1.9mm
Pin Length 9mm
Contact Material Copper
3500 In stock for delivery within 2 working days
Unit of sale: Each (In a Pack of 100)
0.058
(exc. VAT)
0.071
(inc. VAT)
units
Per unit
Per Pack*
100 - 400
€0.058
€5.80
500 - 2400
€0.049
€4.90
2500 +
€0.044
€4.40
*price indicative
