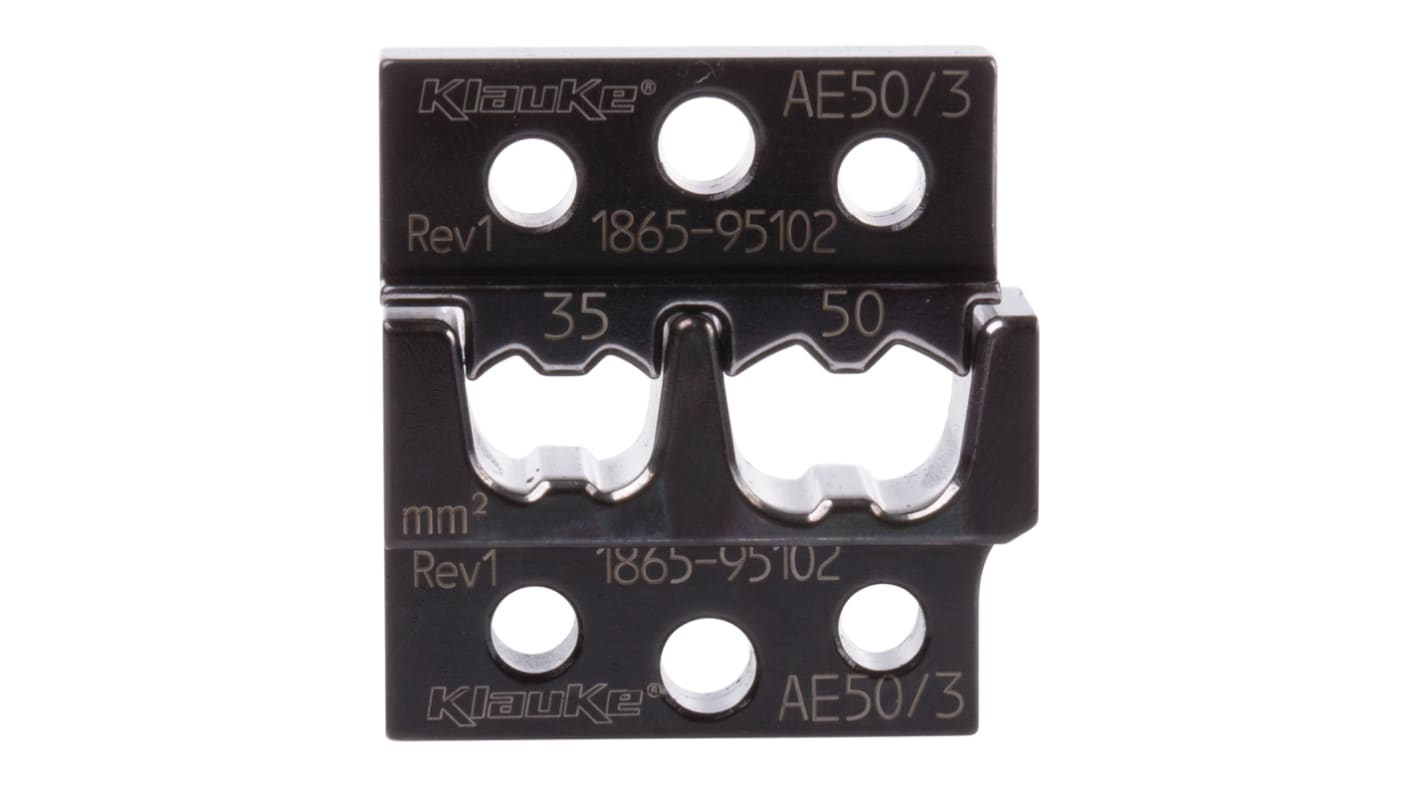

Klauke Crimp Die Set, Open Barrel Terminal, Coaxial Type Cable End Sleeve

  • RS Stock No. 908-2890
  • Mfr. Part No. AE50/3
  • Manufacturer Klauke
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

Klauke EK50ML Die Sets

A range of crimp dies for the Klauke EK50ML electromechanical micro crimp tool. The Klauke 50 series of crimp dies are available for various connector types.Including bootlace ferrules, tubular terminals and DIN terminals.
Part number 908-2880 suitable for DIN terminals 0.5 mm – 10.00 mm²
Part number 908-2884 suitable for receptacles 0.25 mm – 6.00 mm²
Part number 908-2896 suitable for bootlace ferrules 0.14 mm -10.00 mm²
Part number 908-2893 suitable for bootlace ferrules 10.00 mm – 25.00 mm²
Part number 908-2890 suitable for bootlace ferrules 35.00 mm – 50.00 mm²
Part number 908-2900 suitable for tubular terminals 4.00 mm – 10.00 mm²
Part number 908-2903 suitable for tubular terminals 10.00 mm – 16.00 mm²
Part number 908-2907 suitable for tubular terminals 16.00 mm – 25.00 mm²

Specifications
Attribute Value
Crimp Connector Type Open Barrel Terminal
Minimum Wire Size mm² 35mm²
Maximum Wire Size mm² 50mm²
Terminal Insulation Uninsulated
Number of Contacts 6
Coaxial Type Cable End Sleeve
Number of Ports 6
Series Number 50
Temporarily out of stock - back order for despatch 10-09-2020, delivery within 2 working days
Unit of sale: Each
80.91
(exc. VAT)
99.52
(inc. VAT)
units
Per unit
1 +
€80.91
