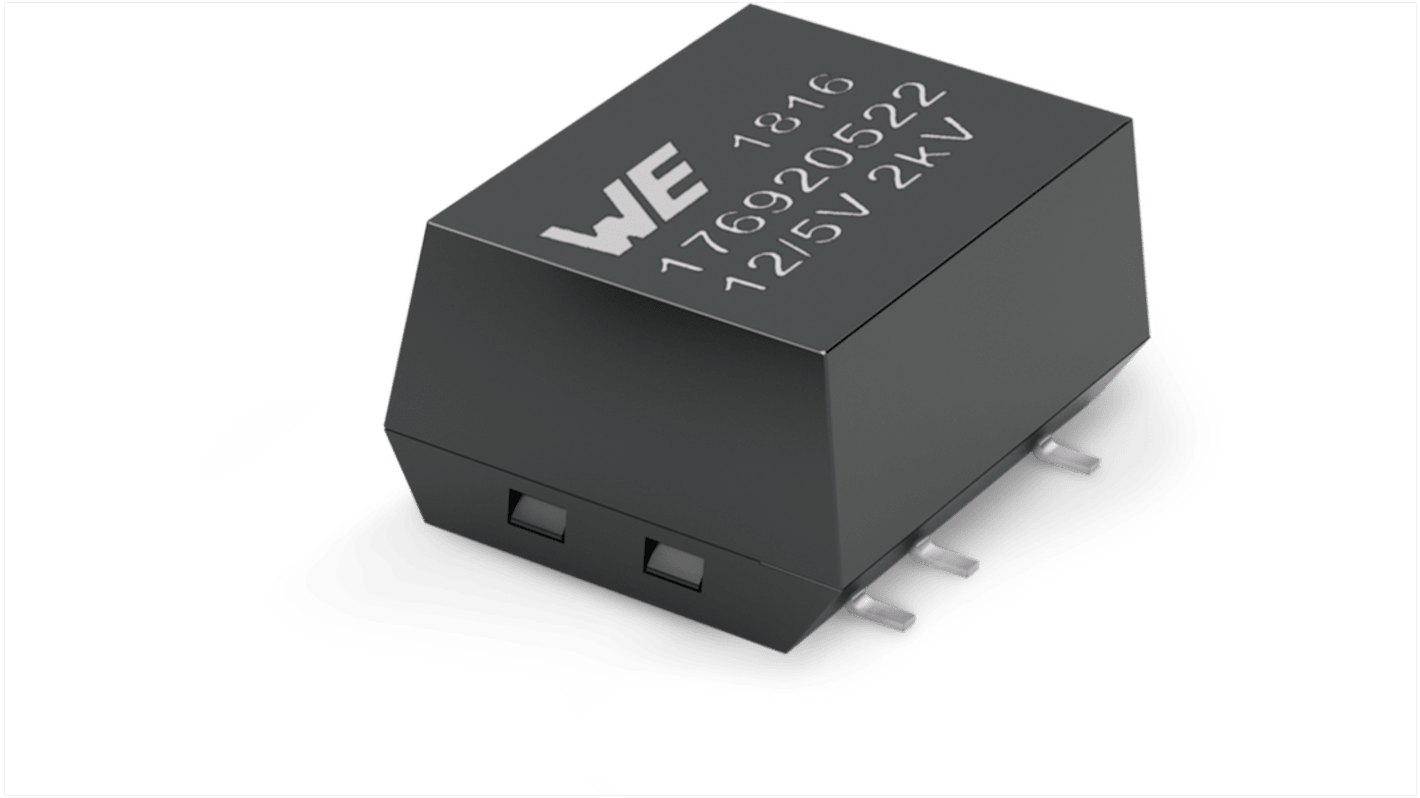

Wurth Elektronik 176920522, 1-Channel, Isolated, Un-Regulated DC-DC Converter, 200mA 8-Pin, SMT
- RS Stock No.:
- 206-9439
- Mfr. Part No.:
- 176920522
- Manufacturer:
- Wurth Elektronik
Temporarily out of stock - back order for despatch 02-05-2025, delivery within 2 working days
Added
Price Each (On a Reel of 500)
€6.073
(exc. VAT)
€7.47
(inc. VAT)
| Units | Per unit | Per Reel* |
| 500 + | €6.073 | €3,036.50 |
| *price indicative | ||
- RS Stock No.:
- 206-9439
- Mfr. Part No.:
- 176920522
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
Product Details
The Wurth Elektronik FISM series unregulated MagI3C power module is a functional isolated, fully integrated DC/DC converter. The module integrates the switching power stage, control circuitry, transformer and capacitors, all in one package.
2kV DC functional isolation
RoHS & REACh compliant
Low output voltage ripple
Operating ambient temperature range - 40°C to 100°C
RoHS & REACh compliant
Low output voltage ripple
Operating ambient temperature range - 40°C to 100°C
Specifications
Attribute | Value |
|---|---|
| Minimum Output Voltage | 5 V |
| Maximum Output Voltage | 12 V |
| Minimum Input Voltage | 3.3 V |
| Maximum Input Voltage | 12 V |
| Minimum Output Current | 200mA |
| Converter Type | Isolated, Un-Regulated |
| Number of Outputs | 1 |
| Output Type | Fixed |
| Package Type | SMT |
| Pin Count | 8 |
