Time Electronics Resistance Decade Box, Resistance Resolution 10mΩ, Absolute Maximum Resistance Measurement 12kΩ, UKAS
- RS Stock No.:
- 537-7620
- Mfr. Part No.:
- 1067
- Manufacturer:
- Time Electronics
3 In stock, please allow up to 5 working days for delivery
Added
Price Each
€1,326.49
(exc. VAT)
€1,631.58
(inc. VAT)
| Units | Per unit |
| 1 + | €1,326.49 |
- RS Stock No.:
- 537-7620
- Mfr. Part No.:
- 1067
- Manufacturer:
- Time Electronics
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details

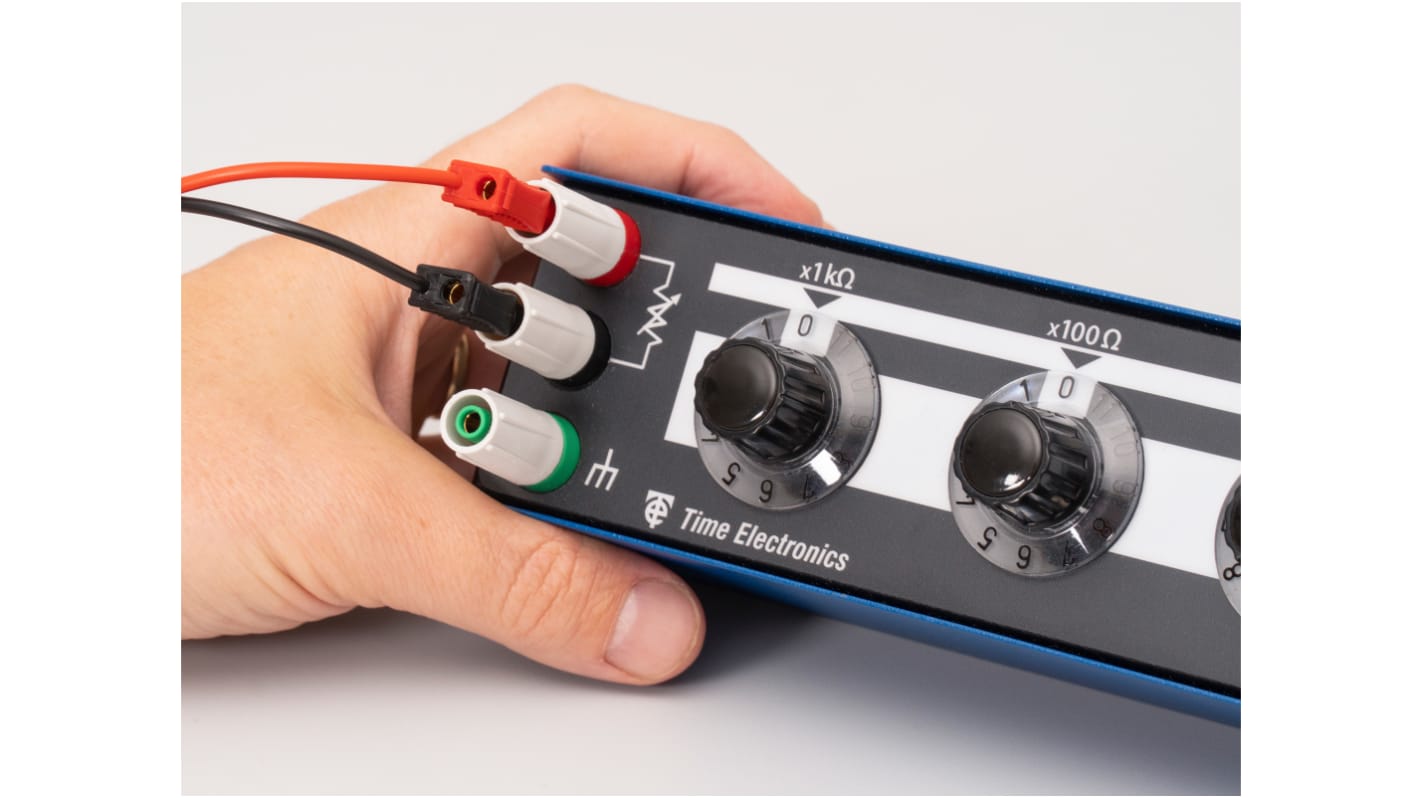

1067 Precision Decade Resistance Box
Suitable for wide range of simulation work, particularly simulating and calibrating precision RTD sensors and temperature indicators/meters that use resistive sensors. The construction ensures residual end resistance is as low and stable as possible. Multiple self-wiping silver alloy contacts are used for each position for high performance and long life.
6 Digit Resolution
0.01Ω - 10KΩ, 0.01Ω steps
0.01% Accuracy
Better than 20 ppm/year stability
Fully screened metal case, low thermal emf terminals
0.01Ω - 10KΩ, 0.01Ω steps
0.01% Accuracy
Better than 20 ppm/year stability
Fully screened metal case, low thermal emf terminals
Specifications
Attribute | Value |
|---|---|
| Decade Box Type | Resistance |
| Calibrated | UKAS |
| Resistance Resolution | 10mΩ |
| Best Maximum Resistance Accuracy | ±0.01% |
| Residual Resistance | 10mΩ |
| Power Rating | 0.35W |
| Temperature Coefficient | ±10 ppm/°C, ±20ppm/°C |
| Dimensions | 87 x 355 x 63mm |
| Length | 87mm |
| Width | 355mm |
| Minimum Resistance Measurement | 10mΩ |
| Absolute Maximum Resistance Measurement | 12kΩ |
| Weight | 1.1kg |
| Height | 63mm |
| Minimum Inductance | 10mΩ |
