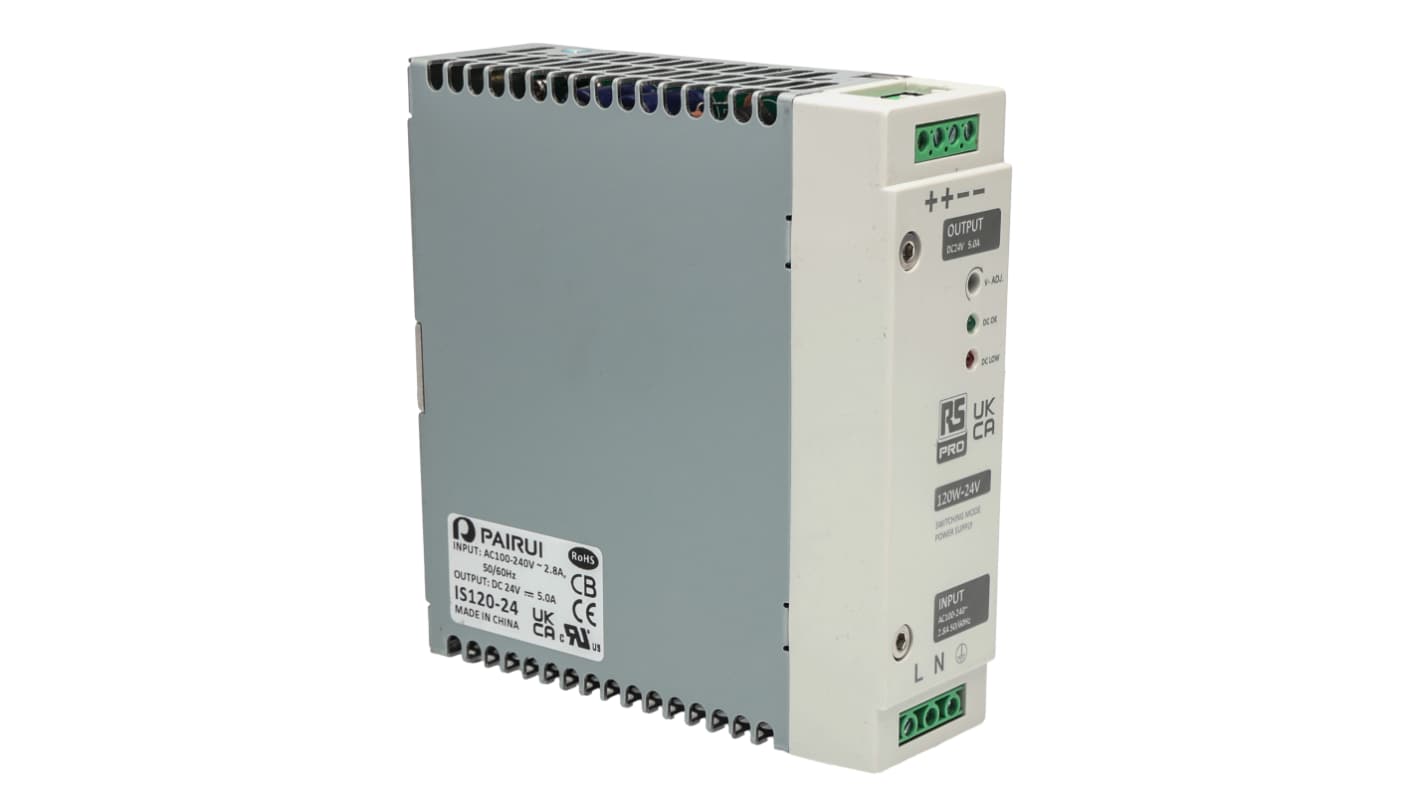

RS PRO Switched Mode DIN Rail Power Supply, 230V ac, 24V dc dc Output, 5A Output, 120W
- RS Stock No.:
- 136-8319
- Manufacturer:
- RS PRO
17 Within 1 working day(s) (IE stock)
2916 Within 2 working day(s) (EU stock)
Added
Price Each
€49.01
(exc. VAT)
€60.28
(inc. VAT)
| Units | Per unit |
| 1 + | €49.01 |
- RS Stock No.:
- 136-8319
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Switch Mode - RS Pro
Specifications
Attribute | Value |
|---|---|
| Type | Switched Mode |
| Output Voltage | 24V dc |
| Output Current | 5A |
| AC or DC Output Voltage | dc |
| Input Voltage | 230V ac |
| Power Rating | 120W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 130mm |
| Width | 40mm |
| Depth | 125mm |
| Special Features | 100% Full Load Burn-In Test, 3-Years Warranty, Compact Size, Cooling by Free Air Convection, LED Indicator for DC Low, LED Indicator for DC Power On |
| Ripple And Noise | 120mV |
| Minimum Temperature | -25°C |
| Output Voltage Adjustment Range | 23 → 28V |
| Load Regulation | 3% |
| Maximum Temperature | +70°C |
| Standards Met | CB, CE, cUL, cULus Recognised, FCC, UL |
| Mounting Type | DIN Rail Mount |
| MTBF | 200kh |
