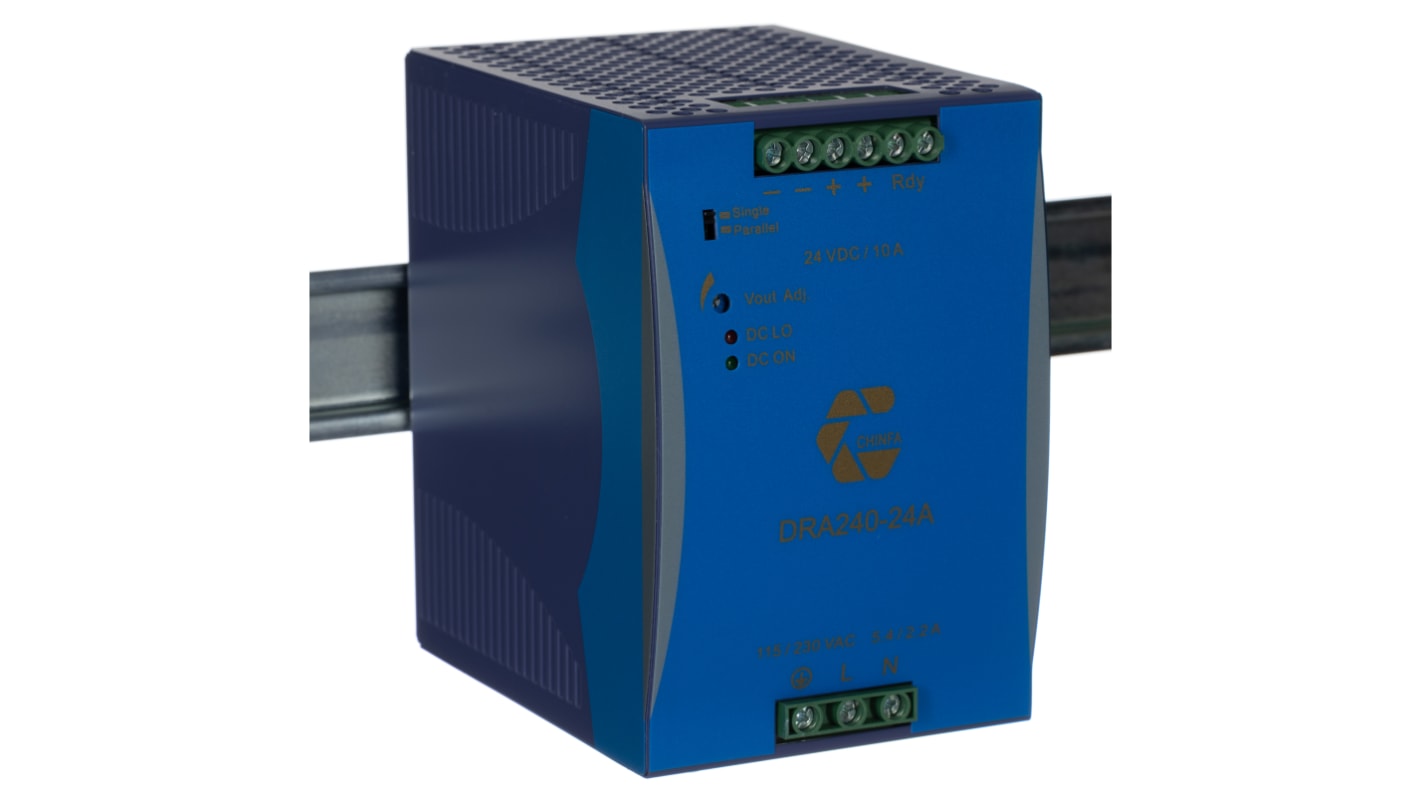

Chinfa DRA240 Switch Mode DIN Rail Power Supply, 90 → 264V ac ac Input, 24V dc dc Output, 10A Output, 240W
- RS Stock No.:
- 789-4013
- Mfr. Part No.:
- DRA240-24A
- Manufacturer:
- Chinfa
1 Within 1 working day(s) (IE stock)
377 Within 2 working day(s) (EU stock)
Added
Price Each
€132.89
(exc. VAT)
€163.45
(inc. VAT)
| Units | Per unit |
| 1 + | €132.89 |
- RS Stock No.:
- 789-4013
- Mfr. Part No.:
- DRA240-24A
- Manufacturer:
- Chinfa
Technical data sheets
Legislation and Compliance
Product Details
CHINFA DIN Rail Power Supply
The CHINFA DIN Rail DRA series switch mode power supply has a universal input voltage ranging between 115VAC and 240VAC and adjustable DC output voltage. The switch mode technology provides a compact design, high efficiency and low residual ripple. The rated output current is 10A at 24VDC output voltage. This power supply is especially designed for industrial control systems, process automation and industrial applications requiring stabilised DC voltage.
Features and Benefits
High efficiency of 89%
Internal input filter
MTBF is 423000 hours
Operation temperature ranging between -40°C and 71°C
Power rating is up to 240W
Regulated outputs
Ripple factor and noise is 100mV
Screw terminal connection
Short circuit protection
Internal input filter
MTBF is 423000 hours
Operation temperature ranging between -40°C and 71°C
Power rating is up to 240W
Regulated outputs
Ripple factor and noise is 100mV
Screw terminal connection
Short circuit protection
Applications
Electromagnetic drives
Factory automation
Industrial controls
Instrumentation
Factory automation
Industrial controls
Instrumentation
Certifications
CE certified
cUL
TUV
UL approved
cUL
TUV
UL approved
Specifications
Attribute | Value |
|---|---|
| Type | Switch Mode |
| Output Voltage | 24V dc |
| Output Current | 10A |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 90 → 264V ac |
| Power Rating | 240W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 125mm |
| Width | 123.6mm |
| Depth | 124mm |
| Series | DRA240 |
| Load Regulation | ±1% |
| MTBF | 423000h |
| Ripple And Noise | 100mV |
| Minimum Temperature | -40°C |
| Mounting Type | DIN Rail Mount |
| Maximum Temperature | +71°C |
| Standards Met | EN 55032, EN 61558-1, EN 61558-2-16, EN 62368-1, UL 508, UL 62368-1 |
