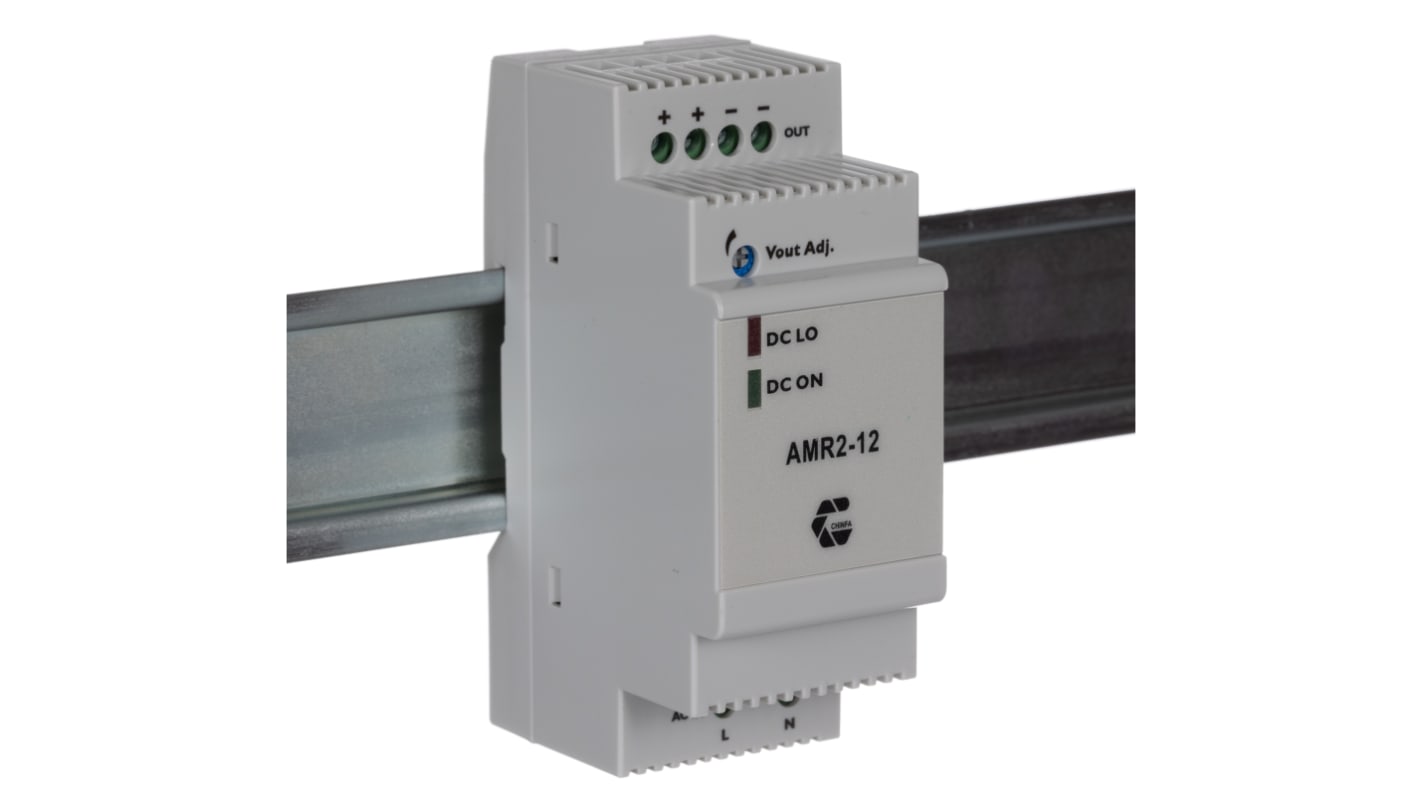

Chinfa AMR2 Switch Mode DIN Rail Power Supply, 90 → 264V ac ac Input, 12V dc dc Output, 2A Output, 24W

RS Stock No.:: 789-4035
Mfr. Part No.:: AMR2-12
Manufacturer:: Chinfa

Chinfa AMR2 Switch Mode DIN Rail Power Supply, 90 → 264V ac ac Input, 12V dc dc Output, 2A Output, 24W

116 In stock for delivery within 2 working days

Added

Price Each

€37.49

(exc. VAT)

€46.11

(inc. VAT)

Units	Per unit
1 +	€37.49

RS Stock No.:: 789-4035
Mfr. Part No.:: AMR2-12
Manufacturer:: Chinfa

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

CHINFA DIN Rail Power Supply

The CHINFA DIN Rail AMR2 series switch-mode power supply has a universal input voltage ranging between 90VAC and 264VAC/120VDC and 375VDC. This is a cost-effective power supply that is specifically designed with uncompromised quality and reliability for high-performance. Its output current rating is 2A at 12VDC output voltage.

Features and Benefits

High efficiency of 84%
Internal input filter
MTBF is 789000 hours
Operating temperature ranging between -40°C and 71°C
Power rating is up to 24W
Regulated output
Ripple factor and noise is 50mV
Short circuit protection

Applications

Building control systems
Electromagnetic drives
Factory automation
Industrial controls
Instrumentation

Certifications

CE certified
cUL
TUV
UL approved

Specifications

Attribute	Value
Type	Switch Mode
Output Voltage	12V dc
Output Current	2A
AC or DC Input Voltage	ac
AC or DC Output Voltage	dc
Input Voltage	90 → 264V ac
Power Rating	24W
Electrical Phase	1
Number of Outputs	1
Height	91mm
Width	56.5mm
Depth	57mm
Series	AMR2
Ripple And Noise	50mV
Minimum Temperature	-40°C
Mounting Type	DIN Rail Mount
Standards Met	EN 55032, EN 62368-1, UL 62368-1, UL508
Maximum Temperature	+71°C
Load Regulation	±1%
MTBF	798000h
