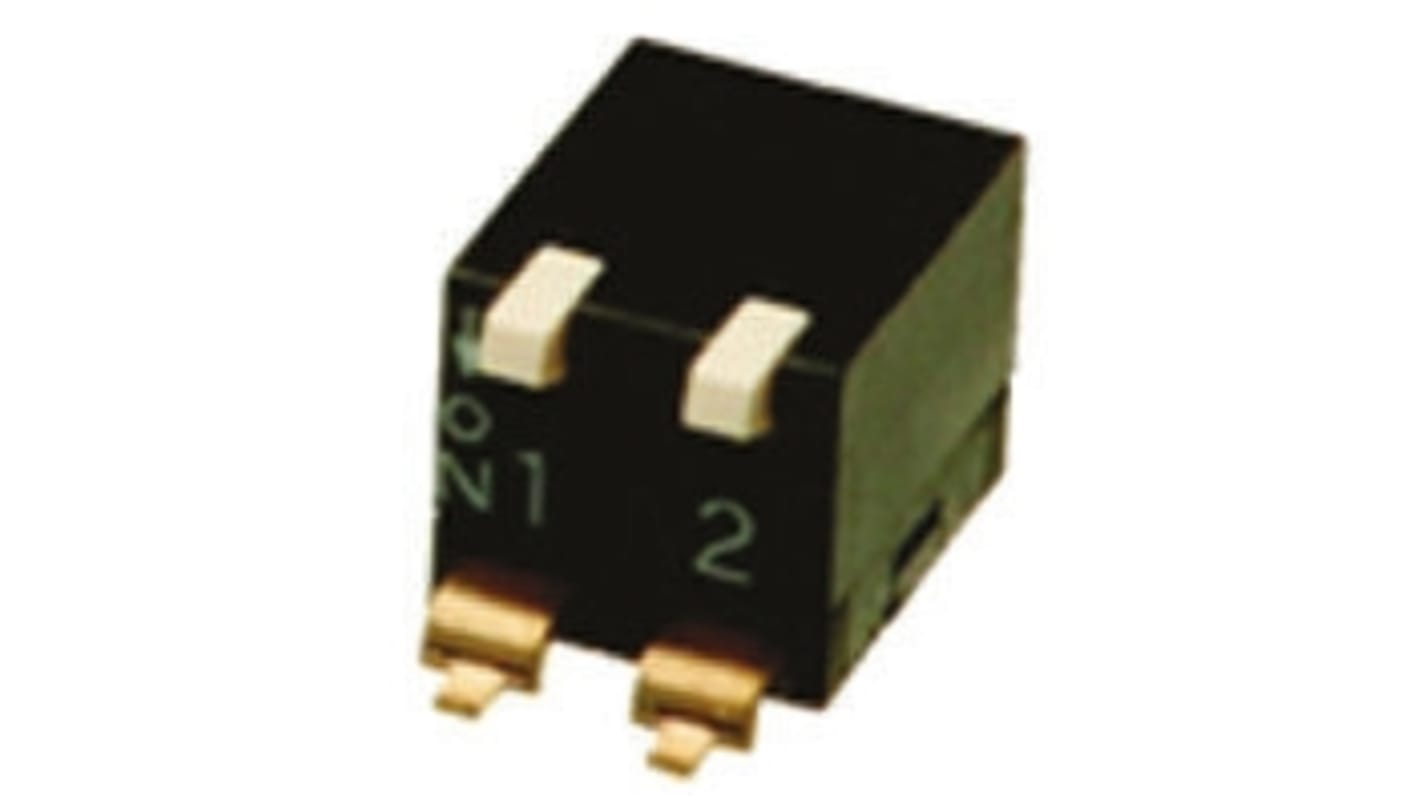

2 Way Surface Mount DIP Switch SPST, Lever Actuator

  • RS Stock No. 707-7372
  • Mfr. Part No. A6SR2104
  • Manufacturer Omron
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Low Profile Piano Type DIL Switch - A6T & A6S Series

Low profile of 5mm and 2.54 pitch.
End stackable design
Gold-plated twin contact and a slide-type self cleaning mechanism ensure high reliability
Operating force: 0.3 to 7.8 N

Specifications
Attribute Value
Contact Configuration SPST
Contact Current Rating 25 mA@ 24 V dc
Contact Material Gold Plated
Number of Positions 2
Mounting Type Surface Mount
Actuator Type Lever
Package Style DIP
Mechanical Life 1000Operations
Maximum Operating Temperature +70°C
Minimum Operating Temperature -20°C
Operating Temperature Range -20 → +70°C
55 In stock for delivery within 2 working days
Unit of sale: Each
3.70
(exc. VAT)
4.55
(inc. VAT)
units
Per unit
1 - 49
€3.70
50 - 99
€3.38
100 - 249
€1.88
250 - 499
€1.81
500 +
€1.77
