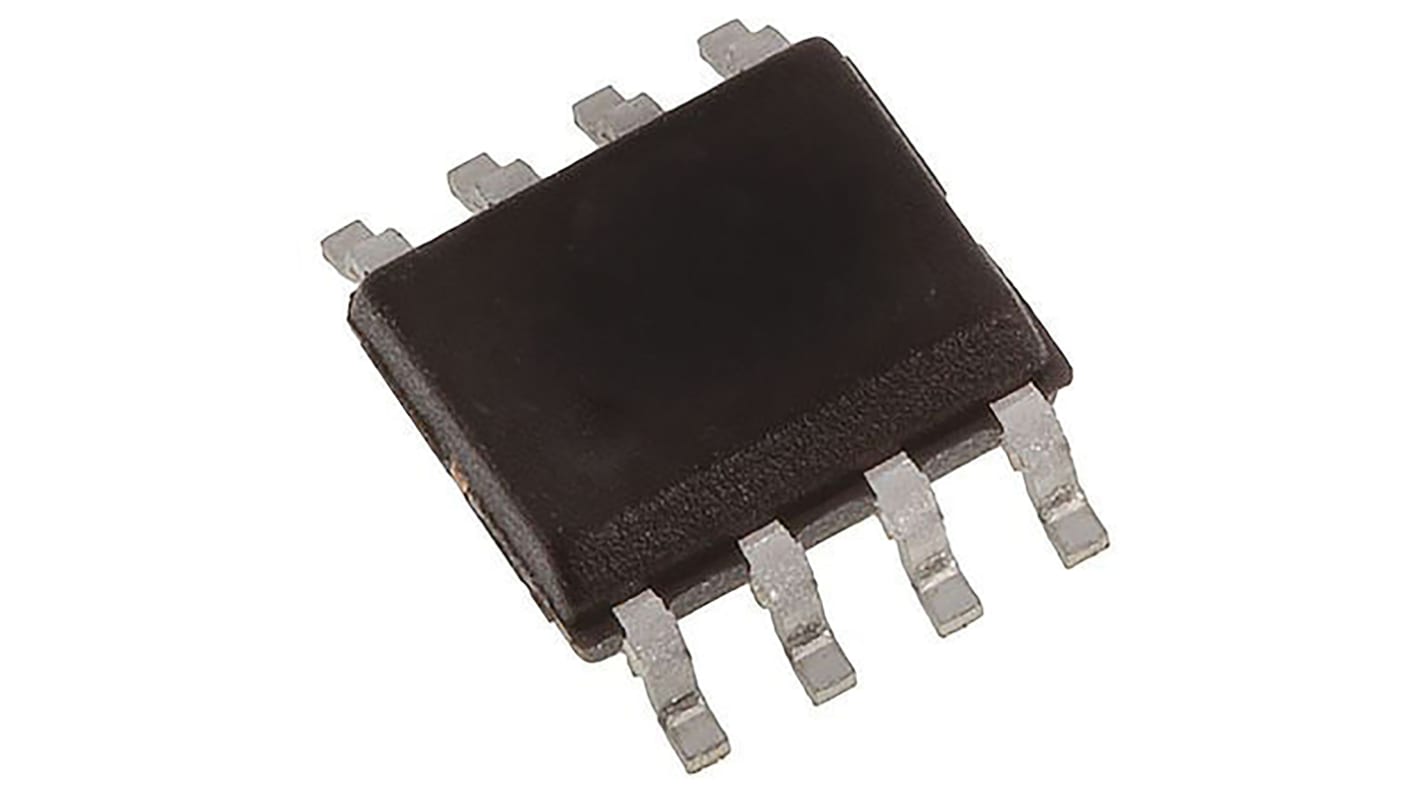

Microchip 24LC32A/SN, 32kbit Serial EEPROM Memory, 900ns 8-Pin SOIC Serial-I2C
- RS Stock No.:
- 823-1249
- Mfr. Part No.:
- 24LC32A/SN
- Manufacturer:
- Microchip
1080 In stock for delivery within 2 working days
Added
Price Each (In a Pack of 20)
€0.427
(exc. VAT)
€0.525
(inc. VAT)
| Units | Per unit | Per Pack* |
| 20 - 20 | €0.427 | €8.54 |
| 40 - 80 | €0.417 | €8.34 |
| 100 + | €0.405 | €8.10 |
| *price indicative | ||
- RS Stock No.:
- 823-1249
- Mfr. Part No.:
- 24LC32A/SN
- Manufacturer:
- Microchip
Technical data sheets
Legislation and Compliance
Product Details
24AA32A/24LC32A I²C™ Serial EEPROM
Microchip’s 24AA32A/24LC32A family of devices are 32 Kbit I²C™ Serial EEPROMs available in a variety of package, temperature and power supply variants.
Features
Single Supply with Operation down to 1.7V for 24AA32A Devices, 2.5V for 24LC32A Devices
Low-Power CMOS Technology: Active current 1 mA (typical), Standby current 1 μA (typical)
2-Wire Serial Interface, I2C™ Compatible
Schmitt Trigger Inputs for Noise Suppression
Output Slope Control to Eliminate Ground Bounce
100 kHz and 400 kHz Clock Compatibility
Page Write Time 5 ms max.
Self-Timed Erase/Write Cycle
32-Byte Page Write Buffer
Hardware Write-Protect
ESD Protection >4,000V
More than 1 Million Erase/Write Cycles
Data Retention >200 Years
Low-Power CMOS Technology: Active current 1 mA (typical), Standby current 1 μA (typical)
2-Wire Serial Interface, I2C™ Compatible
Schmitt Trigger Inputs for Noise Suppression
Output Slope Control to Eliminate Ground Bounce
100 kHz and 400 kHz Clock Compatibility
Page Write Time 5 ms max.
Self-Timed Erase/Write Cycle
32-Byte Page Write Buffer
Hardware Write-Protect
ESD Protection >4,000V
More than 1 Million Erase/Write Cycles
Data Retention >200 Years
EEPROM Serial Access - Microchip
Specifications
Attribute | Value |
|---|---|
| Memory Size | 32kbit |
| Interface Type | Serial-I2C |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Organisation | 4k x 8 bit |
| Minimum Operating Supply Voltage | 2.5 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Programming Voltage | 2.5 → 5.5V |
| Number of Bits per Word | 8bit |
| Dimensions | 4.9 x 3.9 x 1.5mm |
| Minimum Operating Temperature | 0 °C |
| Number of Words | 4 |
| Maximum Random Access Time | 900ns |
| Data Retention | >200yr |
| Maximum Operating Temperature | +70 °C |
