Abus Brass Euro Cylinder Lock, 45 x 45mm (61mm)

  • RS Stock No. 124-1505
  • Mfr. Part No. E60NP 45/45 KD
  • Manufacturer ABUS
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

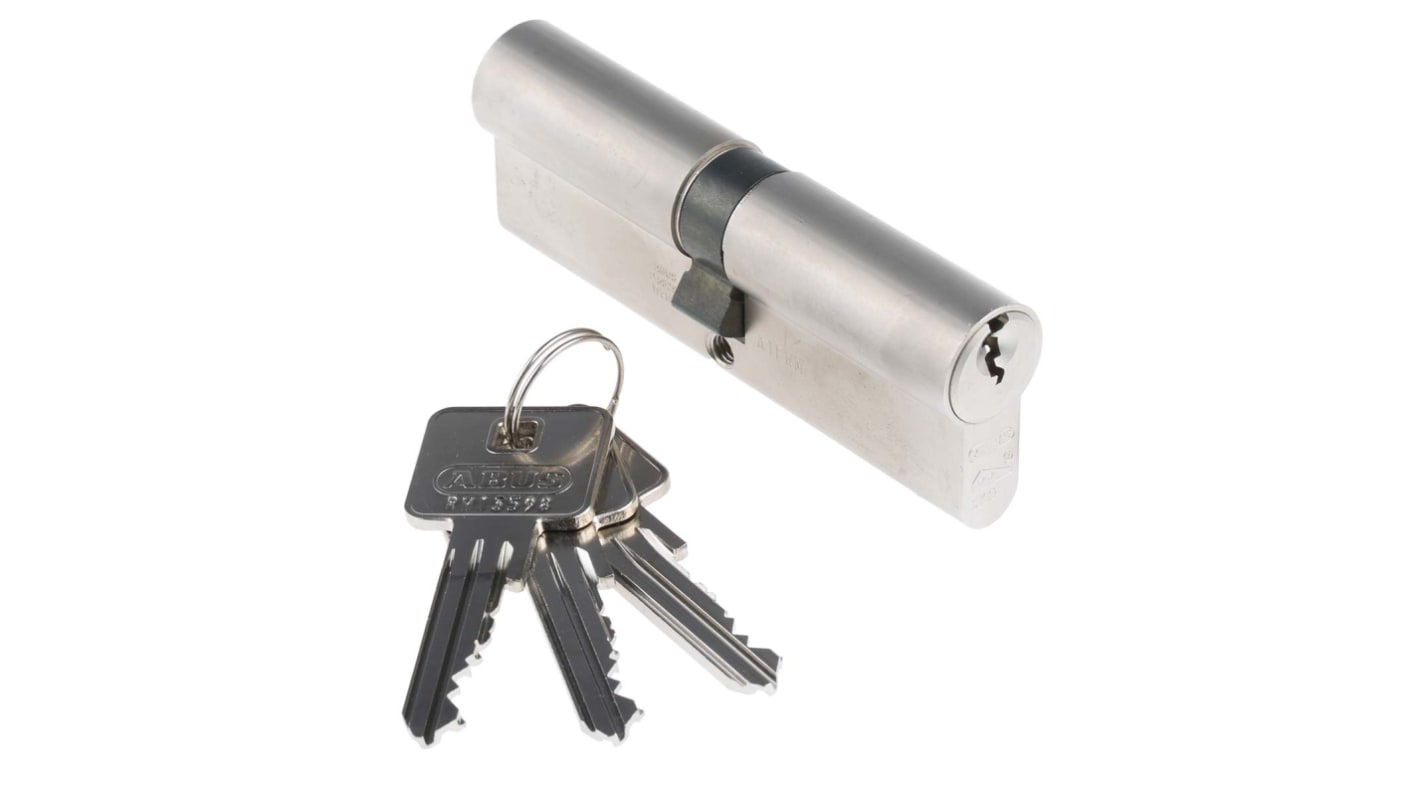

ABUS Euro Cylinder Locks E60NP Double Cylinder

The E60 euro profile double cylinder locks from ABUS have precision, mushroom pin and paracentric keyway which offer comprehensive anti-pick protection. They also they have a hardened steel anti-drill spring and pin protection with 6 anti-drill pins in every keyway. For emergency and convenience, the outside key can operate the lock with the internal key still in place.

Features and Benefits

Door cylinder according to DIN EN 1303, DIN 18252, ISO 9001:2008 Three hardened steel pins on both sides of the cylinder body, two hardened steel pins in the plug and three hardened bottom/top pins per cylinder side
Long key neck, perfect for door fittings with cylinder protection
Nickel Pearl dull matt brass finish
The cylinder can be operated from the outside even when a key is already inserted on the inside
6-pin cylinder

Product Application Information

The ABUS double cylinder lock has been designed for use in main entrance doors and apartment doors.

How to measure a euro profile cylinder

Section A length: Distance from one end of the cylinder to the centre cam
Section B length: Distance from the other end of the cylinder to the centre cam
Overall length: Both distances added together

ABUS Double Cylinder E60NP 45/45

45 mm/45 mm
Total length: 90 mm

Specifications
Attribute Value
Cylinder Lock Type Euro
Size 45 x 45mm
Material Brass
Finish Dull Matt Brass, Nickel Pearl
Overall Length 61mm
Section A Length 45mm
Section B Length 45mm
3 In stock for delivery within 2 working days
Unit of sale: Each
33.09
(exc. VAT)
40.70
(inc. VAT)
units
Per unit
1 +
€33.09
