Vent-Axia Silhouette 100B Silhouette Rectangular Ceiling Mounted, Panel Mounted, Wall Mounted Extractor Fan, 75m³/h,
- RS Stock No.:
- 884-0966
- Mfr. Part No.:
- Silhouette 100B
- Manufacturer:
- Vent-Axia
2 Within 1 working day(s) (IE stock)
19 Within 2 working day(s) (EU stock)
Added
Price Each
€82.76
(exc. VAT)
€101.79
(inc. VAT)
| Units | Per unit |
| 1 + | €82.76 |
- RS Stock No.:
- 884-0966
- Mfr. Part No.:
- Silhouette 100B
- Manufacturer:
- Vent-Axia
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

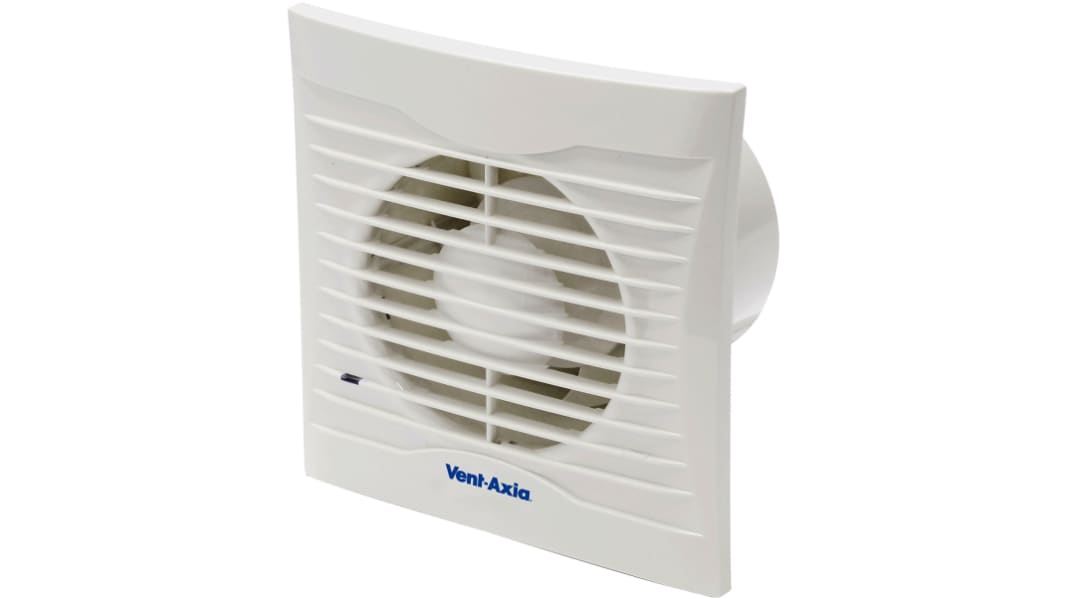

Vent-Axia Fan
The Vent-Axia silhouette extractor fan has an airflow of 75m³/h. It is a high tech, single-speed extractor unit and blends in with the wall surface to provide an unobtrusive installation. The fan is designed for vertical or horizontal application. It has an FID performance of 21ltr/second. It can be ceiling/ panel mounted and connected to an appropriate duct running to the outside.
It is available with a face diameter of 115mm, face height of 160mm, face width of 160mm and depth of 97mm.
It is available with a face diameter of 115mm, face height of 160mm, face width of 160mm and depth of 97mm.
Features and Benefits
Wall mount
Downstream airflow guide vanes for improved pressure development
Noise level of 38dB(A)
Ceiling mounted, panel mounted, wall mounted
Back draught shutter
Safety extra low voltage design
Unobtrusive Installation
Screw termination
Downstream airflow guide vanes for improved pressure development
Noise level of 38dB(A)
Ceiling mounted, panel mounted, wall mounted
Back draught shutter
Safety extra low voltage design
Unobtrusive Installation
Screw termination
Applications
Bathrooms
Toilets
Toilets
Certifications
IPX4 rated for fan
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
Specifications
Attribute | Value |
|---|---|
| Function | Extraction |
| Fan Type | Extractor |
| Air Flow | 75m³/h |
| Noise Level | 38dB(A) |
| Mounting | Ceiling Mounted, Panel Mounted, Wall Mounted |
| Face Diameter | 115mm |
| Face Dimensions | 160 x 160mm |
| Depth | 97mm |
| Face Height | 160mm |
| Face Width | 160mm |
| Duct Size | 100mm |
| Supply Voltage | 230 V ac |
| Series | Silhouette |
| Special Features | Backdraught Shutter, Safety Extra Low Voltage Design, Unobtrusive Installation |
| Configuration | Rectangular |
| Termination Type | Screw |
