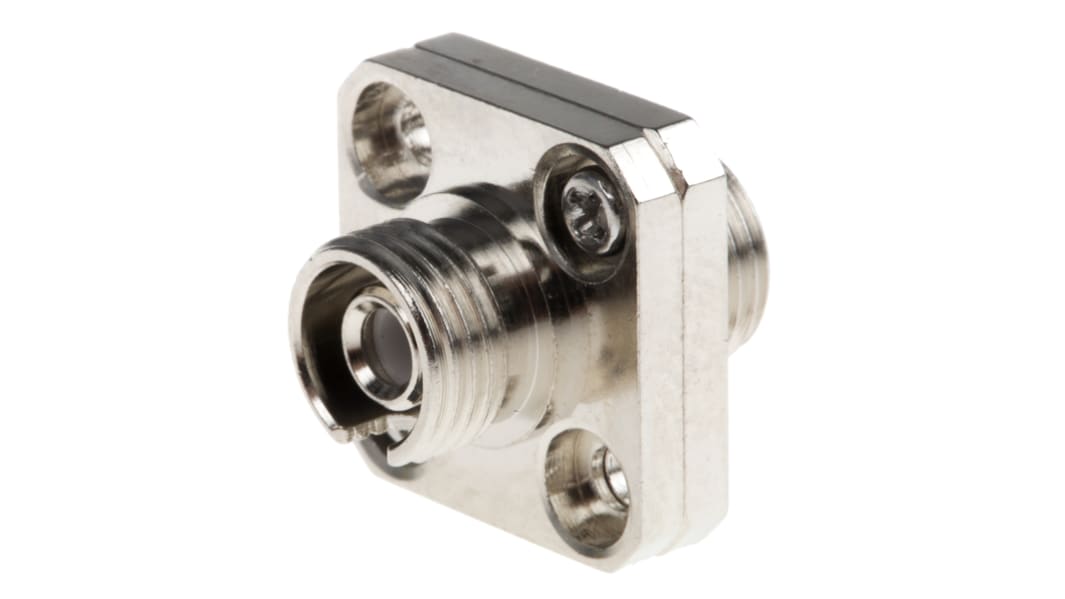

Amphenol Socapex FC to PC Single Mode Simplex Fibre Optic Connector, 0.15dB Insertion Loss

  • RS Stock No. 167-2842
  • Mfr. Part No. 944 120 6000
  • Manufacturer Amphenol
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

FC/PC connectors for single-mode fibres

FC/PC connector with one-piece metal body and precision ceramic end fitting in zirconium oxide, for single-mode fibres with external diameters of 125 μm, 2.8 mm wired.
Screw locking; plug indexing.
Return spring ensures physical contact between optical faces.
Fully compatible with NTT standard.

Specifications
Attribute Value
Connector Type FC to PC
Single/Multimode Single Mode
Simplex/Duplex Simplex
Insertion Loss 0.15dB
Housing Material Zirconium Dioxide
Connector Type A FC
Connector Type B PC
8 In stock for delivery within 2 working days
Unit of sale: Each
31.90
(exc. VAT)
39.24
(inc. VAT)
units
Per unit
1 - 14
€31.90
15 - 49
€29.67
50 +
€28.39
