General Purpose Foot Switch, Thermoplastic Momentary 2 X SPST N/O 3 A 24V IPX7

  • RS Stock No. 808-6992
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

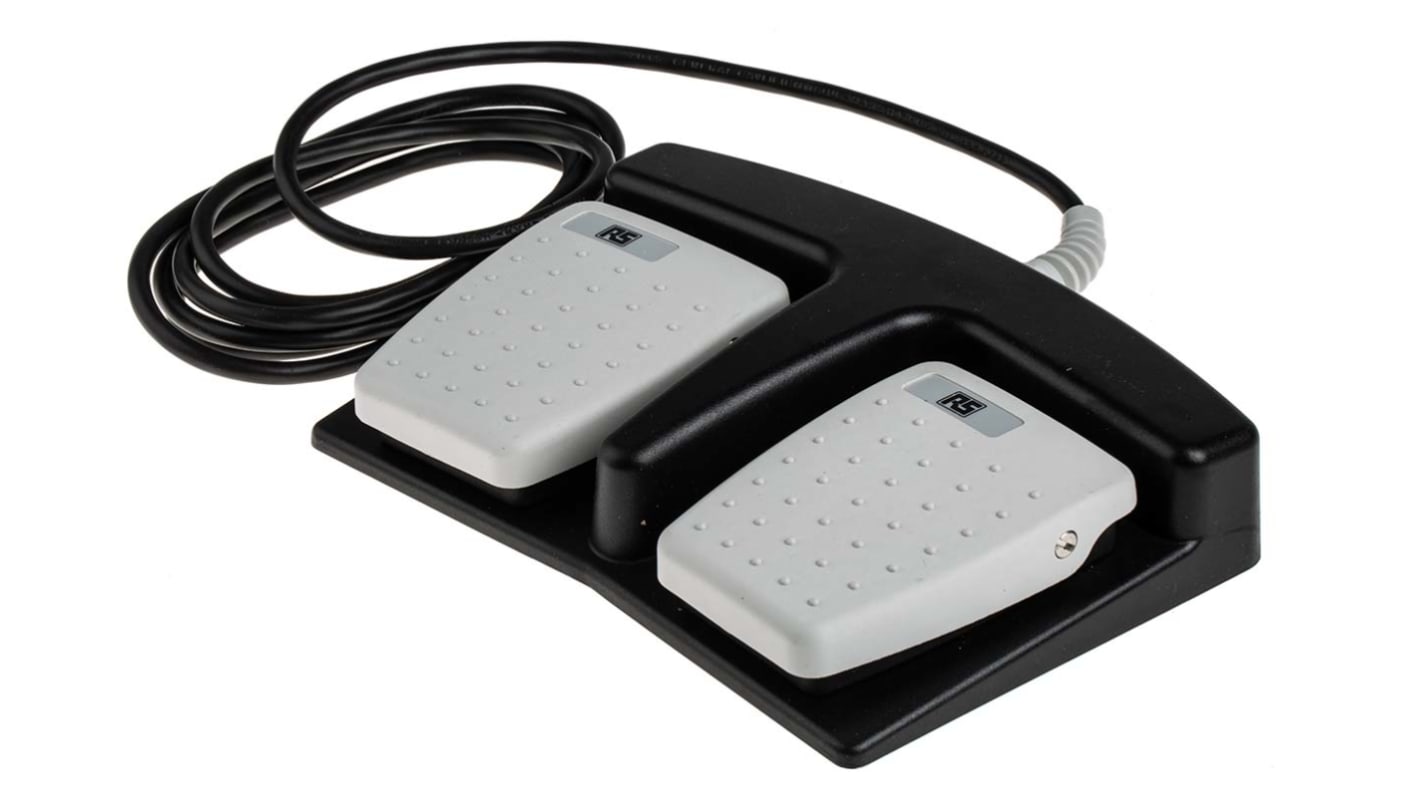

RS Double Pedal Waterproof Industrial Footswitch

This range of double pedal waterproof foot switches from RS is created with a tough, glass filled plastic body providing an IPX7 level of ingress protection and low profile enclosure, making it perfect for use within harsh industrial environments. These foot switches are designed to be waterproof allowing a wider applications in surroundings where contact with water is likely.

Waterproof switch
Low profile enclosure
Double pedal normally open contacts
Straight 2 meter cable
IPX7 rating

Specifications
Attribute Value
Contact Configuration Double Pole Single Throw (DPST)
Switch Operation Momentary
Case Material Thermoplastic
Contact Voltage Rating AC 24V
Contact Voltage Rating DC 24V
Contact Current Rating 3 A
Switch Environment General Purpose
IP Rating IPX7
Contact Material Silver
Standards Met ANSI/AAMI ES60601-1:2005/(R)2012, CSA C22.2 No. 60601-1:14, EN 60601-1:2006, EN 60950, UL 60601-1:2005, UL File No E353500
Colour Black, Grey
Height 42mm
Dimensions 150 x 207 x 42mm
Length 150mm
Width 207mm
21 In stock for delivery within 2 working days
Unit of sale: Each
88.28
(exc. VAT)
108.58
(inc. VAT)
units
Per unit
1 +
€88.28
