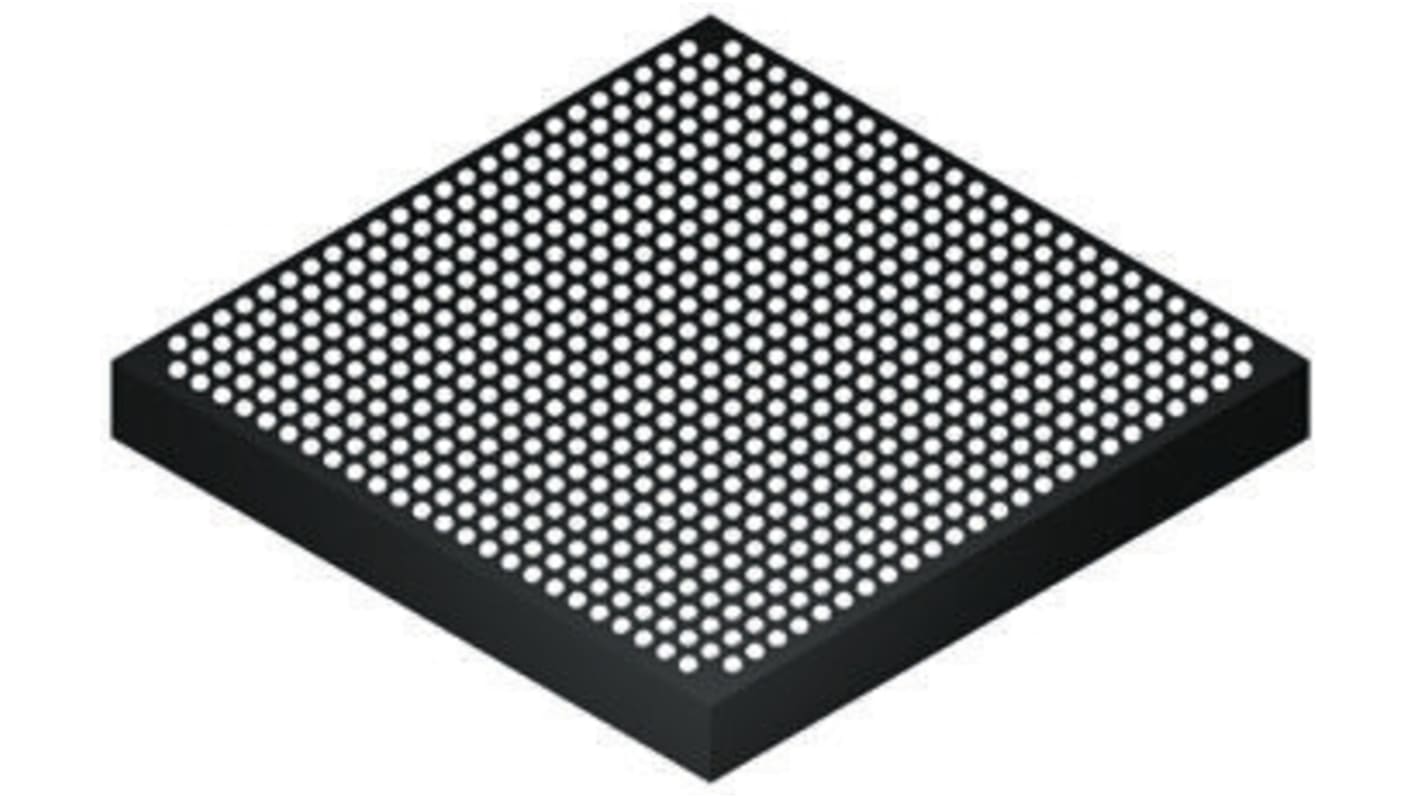

Altera FPGA 5AGXBA1D6F27C6N, Arria V 75000 Cells, 463 kbit, 8000 kbit, 672-Pin FBGA
- RS Stock No.:
- 790-7006
- Mfr. Part No.:
- 5AGXBA1D6F27C6N
- Manufacturer:
- Altera
Temporarily out of stock - back order for despatch when stock is available
Added
Price Each
€210.72
(exc. VAT)
€259.19
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €210.72 |
| 5 + | €207.96 |
- RS Stock No.:
- 790-7006
- Mfr. Part No.:
- 5AGXBA1D6F27C6N
- Manufacturer:
- Altera
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- KR
Product Details
Field Programmable Gate Arrays, Altera
An FPGA is a semiconductor device consisting of a matrix of Configurable Logic Blocks (CLBs) connected through programmable interconnects. The user determines these interconnections by programming SRAM. A CLB can be simple (AND, OR gates, etc) or complex (a block of RAM). The FPGA allows changes to be made to a design even after the device is soldered into a PCB.
Specifications
Attribute | Value |
|---|---|
| Family Name | Arria V |
| Number of Logic Cells | 75000 |
| Dedicated DSP | Yes |
| Number of Registers | 13208 |
| Number of Multipliers | 480 (18 x 18) |
| Mounting Type | Surface Mount |
| Package Type | FBGA |
| Pin Count | 672 |
| Number of RAM Bits | 463 kbit, 8000 kbit |
| Dimensions | 27 x 27 x 3mm |
| Height | 3mm |
| Length | 27mm |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +85 °C |
| Width | 27mm |
| Minimum Operating Supply Voltage | 1.07 V |
| Maximum Operating Supply Voltage | 1.13 V |
