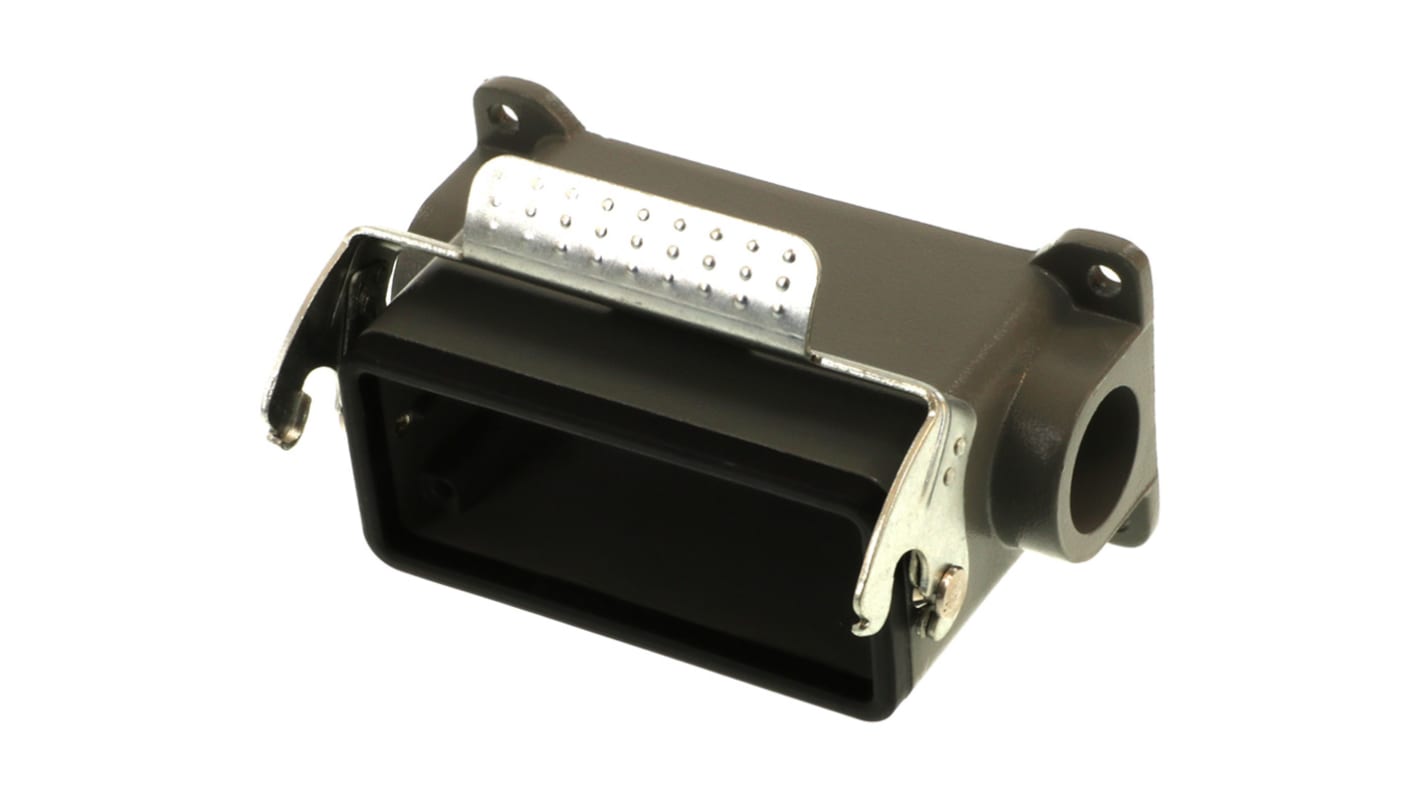

Molex 93601 Heavy Duty Power Connector Housing, M25 Thread, Side Entry

RS Stock No.:: 250-2068
Mfr. Part No.:: 936012549
Manufacturer:: Molex

Molex 93601 Heavy Duty Power Connector Housing, M25 Thread, Side Entry

Bulk discount available

Subtotal (1 unit)*

€26.03

(exc. VAT)

€32.02

(inc. VAT)

In Stock

46 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	€26.03
10 - 99	€25.20
100 - 249	€24.16
250 - 499	€23.11
500 +	€21.87

*price indicative

RS Stock No.:: 250-2068
Mfr. Part No.:: 936012549
Manufacturer:: Molex

Molex 93601 Series Heavy Duty Power Connector Housing, 500V Voltage Rating, size 16B Component size - 936012549

This heavy duty power connector housing is designed for robust applications in industrial settings. With a surface mount style and an IP66 rating, it offers high protection against dust and water ingress. Compatible with size 16B inserts, it features a reliable M25 thread for secure connections. Constructed from die-cast aluminium, this connector housing ensures durability and strength under varying environmental conditions.

Features & Benefits

• IP66 rating for excellent dust and water resistance
• Single lever design simplifies operation and connection
• Die-cast aluminium housing withstands rugged environments
• M25 thread size provides secure and robust mounting
• Compatible with various size 16B inserts for versatility
• Aluminium alloy ensures lightweight yet durable performance

Applications

• Utilised in automation setups for effective power connections
• Suited for use in electrical and mechanical equipment
• Integrates with industrial enclosures for optimal performance
• Ideal for outdoor installations where weather resistance is critical

Which materials are used for the housing and lever?

The housing is made from die-cast aluminium, while the lever is constructed from galvanised steel, ensuring resilience in demanding applications.

What is the maximum voltage rating of this connector housing?

It is rated for a maximum voltage of 500V, making it suitable for high-power applications.

How does the IP66 rating benefit installation in outdoor environments?

The IP66 rating provides robust protection against water and dust, ensuring dependable operation even in harsh outdoor conditions.

Can this connector housing accommodate different insert types?

Yes, it is specifically designed to work with various size 16B inserts, enhancing its usability across multiple applications.

What is the net weight of this connector housing?

The housing has a net weight of 309.2 grams, making it manageable for various installation needs.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Series	93601
	Type	STD
	Thread Size	M25
	Mounting Type	Surface Mount
	Size	16B
	Body Orientation	Side Entry
	Contact Material	Aluminium Alloy

	Select all
	Brand Molex
	Series 93601
	Type STD
	Thread Size M25
	Mounting Type Surface Mount
	Size 16B
	Body Orientation Side Entry
	Contact Material Aluminium Alloy
