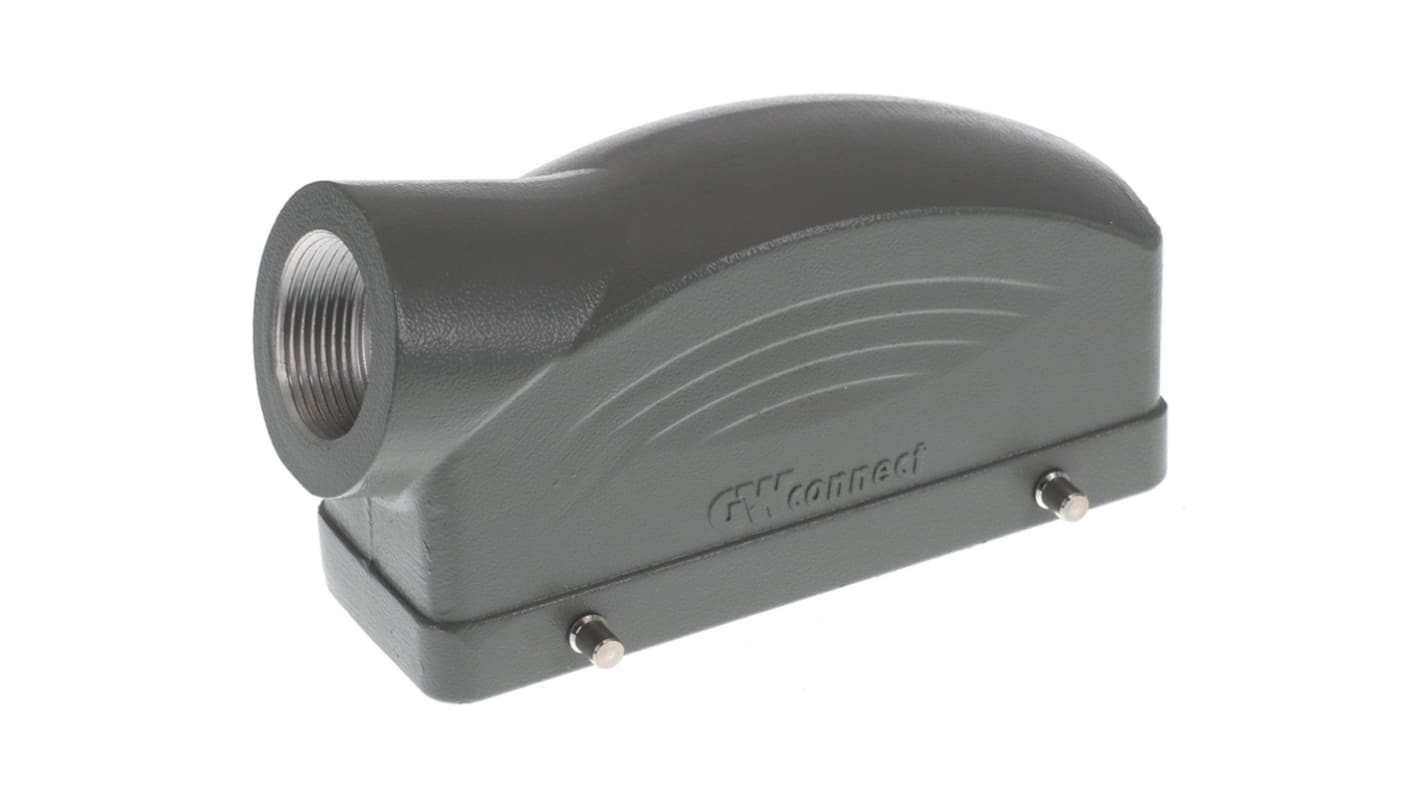

Molex 93601 Heavy Duty Power Connector Hood, Pg21 Thread

RS Stock No.:: 250-2113
Mfr. Part No.:: 936013737
Manufacturer:: Molex

Molex 93601 Heavy Duty Power Connector Hood, Pg21 Thread

Bulk discount available

Subtotal (1 unit)*

€14.02

(exc. VAT)

€17.24

(inc. VAT)

In Stock

14 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	€14.02
10 - 99	€13.57
100 - 249	€13.01
250 - 499	€12.46
500 +	€11.78

*price indicative

RS Stock No.:: 250-2113
Mfr. Part No.:: 936013737
Manufacturer:: Molex

Molex 93601 Series Heavy Duty Power Connector Hood, IP66 Protection Rating, 500V Voltage Rating - 936013737

This heavy duty power connector hood falls under the category of industrial connectors, specifically designed for robust environments. Featuring a straight body orientation and a Pg21 thread size, this connector hood is made of die-cast aluminium and includes four pegs for secure attachment. With an IP66 rating, it is well-suited for challenging outdoor applications.

Features & Benefits

• IP66 rating provides protection against dust and water ingress
• Designed for a maximum voltage of 500V for high power requirements
• Durable aluminium alloy construction ensures long-lasting performance
• Double lever mechanism permits secure and easy mating
• Side entry offers flexibility in cable routing
• Standardised design accommodates various size 24B inserts

Applications

• Used with size 24B S-D and S-DD inserts
• Ideal for automation and electrical
• Suitable for mechanical industry environments
• Utilised in outdoor electrical installations

What materials are used in this connector hood and why are they important?

The hood is constructed from die-cast aluminium, offering increased durability and resistance to corrosion. This material choice ensures longevity, especially in harsh environments.

How does the IP66 rating affect its usability in different settings?

The IP66 rating indicates the hood's high level of protection against dust and powerful water jets, making it suitable for both indoor and outdoor applications where exposure to moisture is a concern.

Can this connector hood be used with other brands of inserts?

While it is primarily designed for size 24B inserts, compatibility with other brands may depend on dimensional specifications. Always verify the insert dimensions to ensure a proper fit.

What is the maximum voltage capacity of this connector hood?

It can handle a maximum voltage of 500V, catering to applications that require significant power without compromising safety.

How does the double lever mechanism enhance the connection process?

The double lever design allows for a secure connection with minimal effort, ensuring that the components remain firmly mated even under vibration or movement.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Type	STD
	Series	93601
	Thread Size	Pg21
	Size	24B
	Contact Material	Aluminium Alloy

	Select all
	Brand Molex
	Type STD
	Series 93601
	Thread Size Pg21
	Size 24B
	Contact Material Aluminium Alloy
