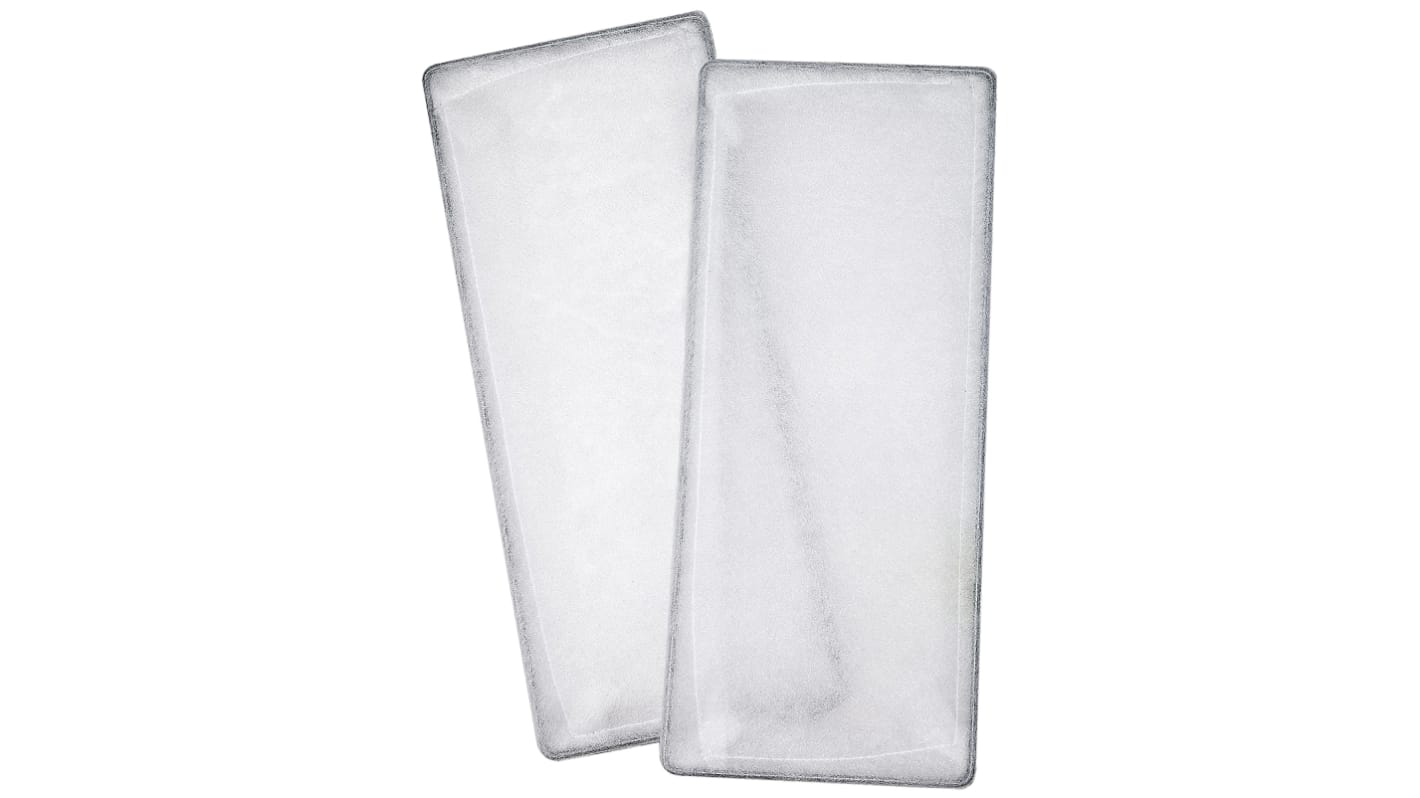

Camfil Fan Coil Filter, Synthetic Media, G3 Grade

  • RS Stock No. 880-2485
  • Mfr. Part No. 1062.51.46
  • Manufacturer Camfil
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

Fan Coil Filters

Camfil polyester fan coil filters, light and robust, ultra-compact size and reversible. Fan coil filters are designed to prevent the build-up of dust and dirt on heating / cooling coils in ventilation systems.

Type: Coarse dust removal
Frame: metal with downstream support
Media: Polyester fibre
EN779:2012 efficiency: G3
Maximum continuous operating temperature: 70 °C

Approvals

EN779:2012

Camfil HVAC Air Filters

Specifications
Attribute Value
Filter Type Fan Coil
Filter Grade G3
Maximum Air Flow 990m³/h
Initial Pressure Drop 25Pa
Case Material Metal
Media Material Synthetic
Series Fan Coil Filters
Actual Height 660mm
Actual Width 205mm
1 In stock for delivery within 2 working days
Unit of sale: 1 Pack of 10
35.62
(exc. VAT)
43.81
(inc. VAT)
Pack(s)
Per Pack
Per unit*
1 +
€35.62
€3.562
*price indicative
