Bulgin C13 Right Angle Cable Mount IEC Socket, 10A, 250 V ac

  • RS Stock No. 293-5891
  • Mfr. Part No. PX0588
  • Manufacturer Bulgin
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Rewireable IEC Sockets (C13)

From Bulgin, this re-wireable cable mounting sockets is available straight, right angle and bottom entry styles. These sockets have a contact resistance of <10mΩ, and an insulation resistance of >10⁴MΩ. Operating temperature is -40°C to +70°C. Max pin temperature 65°C. Kite mark licence no. 6745.

Note

Retaining clips for straight connectors available separately: RS stock nos.195-928 and 211-0935

Approvals

UL listed recognised component, CSA certified, VDE, IMQ (except PX0588), BSI

//media.rs-online.com/t_line/L449281-01.gif

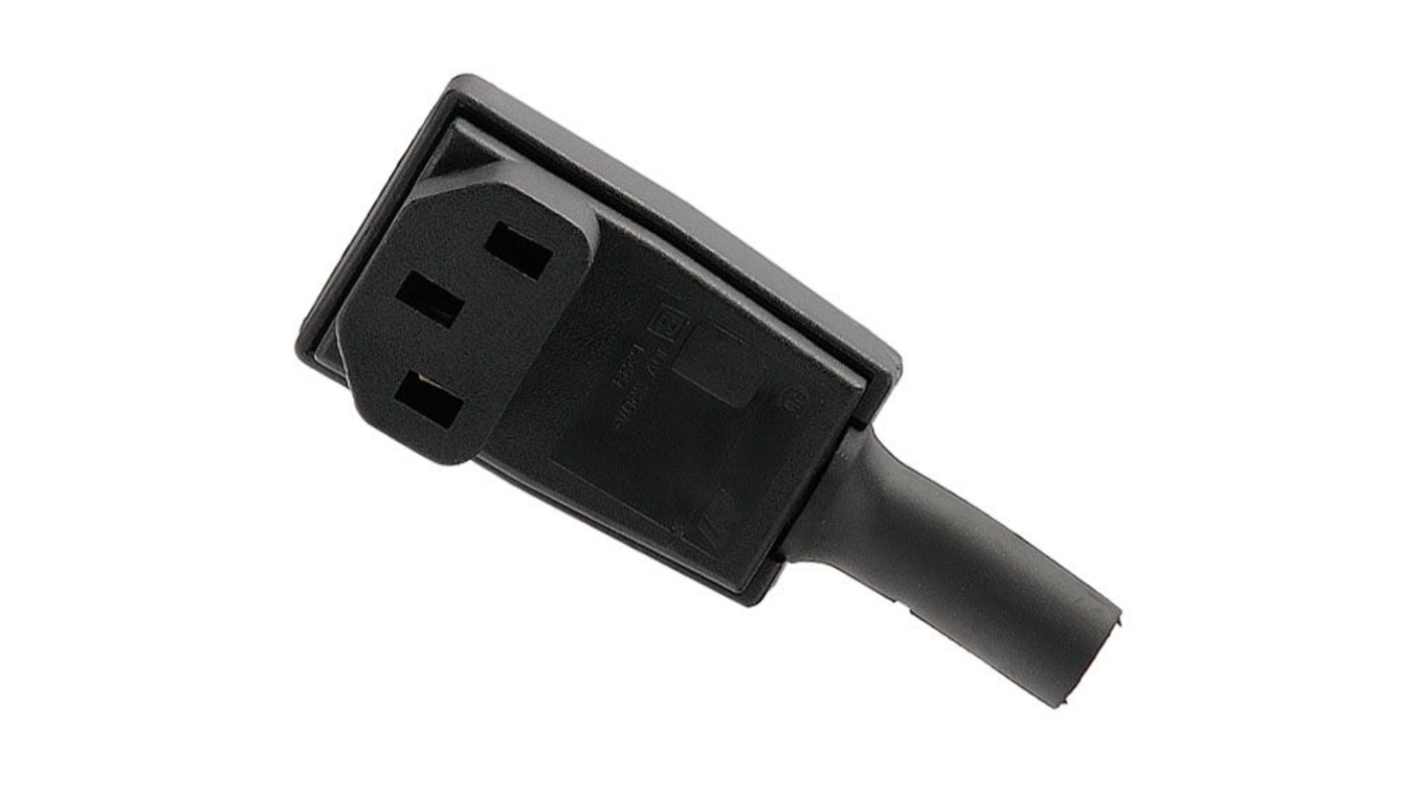

Bulgin IEC Angled Female Connector

From Bulgin these connectors are perfect for using with most mains powered equipment and cable applications are therefore are extremely useful and versatile.

This black nylon, angled female connector is ideal for cable mounting and allows for easy access if any rewiring is necessary.

Features and Benefits

• Angled female connector
• Cable mounting
• Rewireable
• Screw terminals
• Black nylon

Approvals

UL recognised component; CSA certified; VDE; NEMKO; BSI

Specifications
Attribute Value
IEC Connector Type C13
Mounting Type Cable Mount
Gender Female
Current Rating 10A
Body Orientation Right Angle
Termination Method Screw
Number of Fuses None
Voltage Rating 250 V ac
Rewireable Yes
Shuttered No
Stock check temporarily unavailable - call for stock availability
Unit of sale: Each
5.63
(exc. VAT)
6.81
(inc. VAT)
units
Per unit
1 - 9
€5.63
10 - 24
€5.42
25 - 49
€5.17
50 +
€4.94
