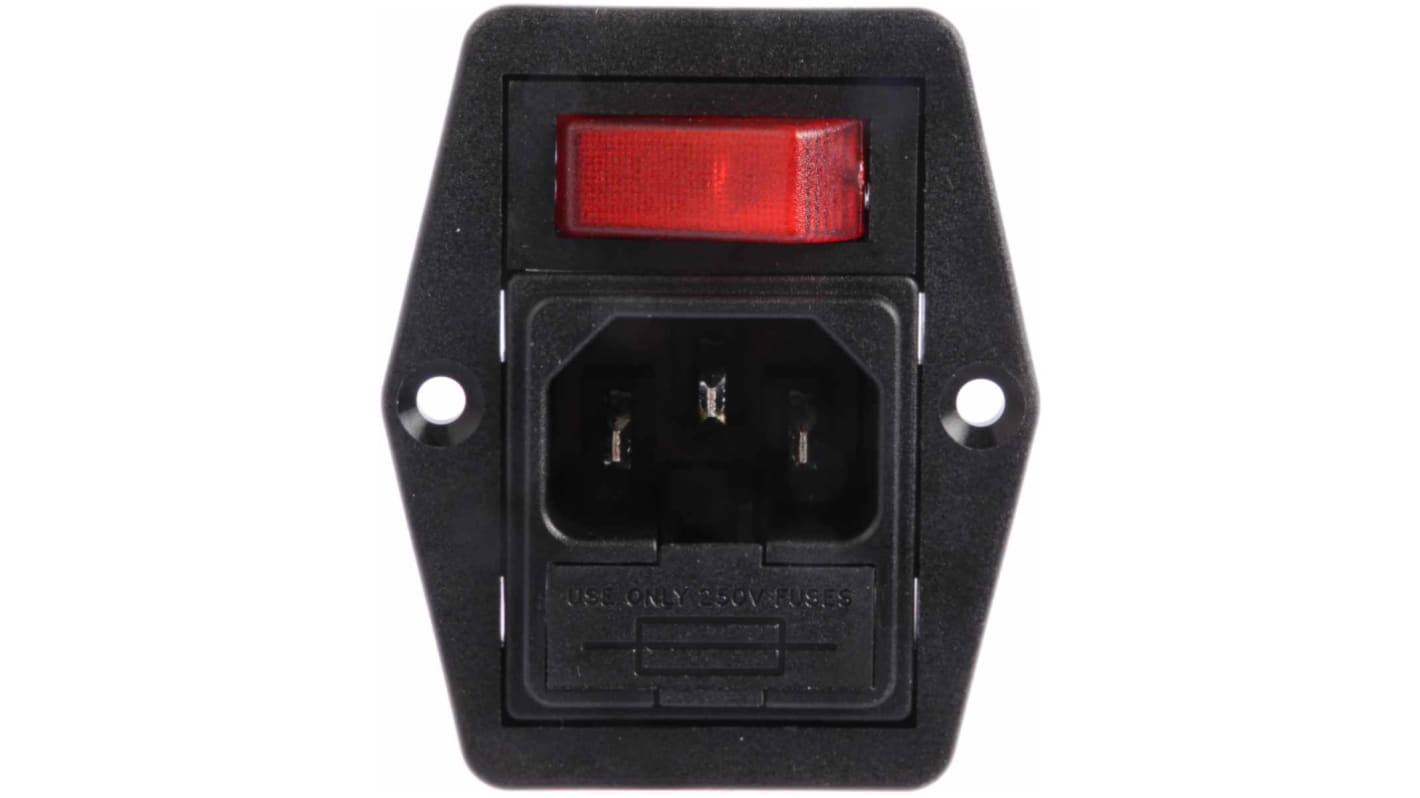

Bulgin C14 Panel Mount IEC Plug Male, 10A, 250 V ac

  • RS Stock No. 352-1847
  • Mfr. Part No. BVB01/Z0000/02
  • Manufacturer Bulgin
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TN
Product Details

10A Flange Fixing IEC 320 Plug

Horizontal flange mount IEC fused and switched inlets
Available in single pole and double pole
Red neon indicated version
Fuse drawer protected to PC2, IEC 127//6

Note

These Chassis Plugs all accept 5 x 20mm fuses

Approvals

UL listed, CSA certified, VDE, IMQ, SEMKO, SEV

Approvals

UL listed; CSA certified; VDE; SEMKO; IMQ; SEV

Specifications
Attribute Value
IEC Connector Type C14
Mounting Type Panel Mount
Gender Male
Current Rating 10A
Body Orientation Straight
Termination Method Tab
Voltage Rating 250 V ac
50 Within 1 working day(s) (IE stock)
578 Within 2 working day(s) (EU stock)
Unit of sale: Each
7.71
(exc. VAT)
9.48
(inc. VAT)
units
Per unit
1 - 9
€7.71
10 - 24
€7.39
25 - 49
€7.08
50 +
€6.77
