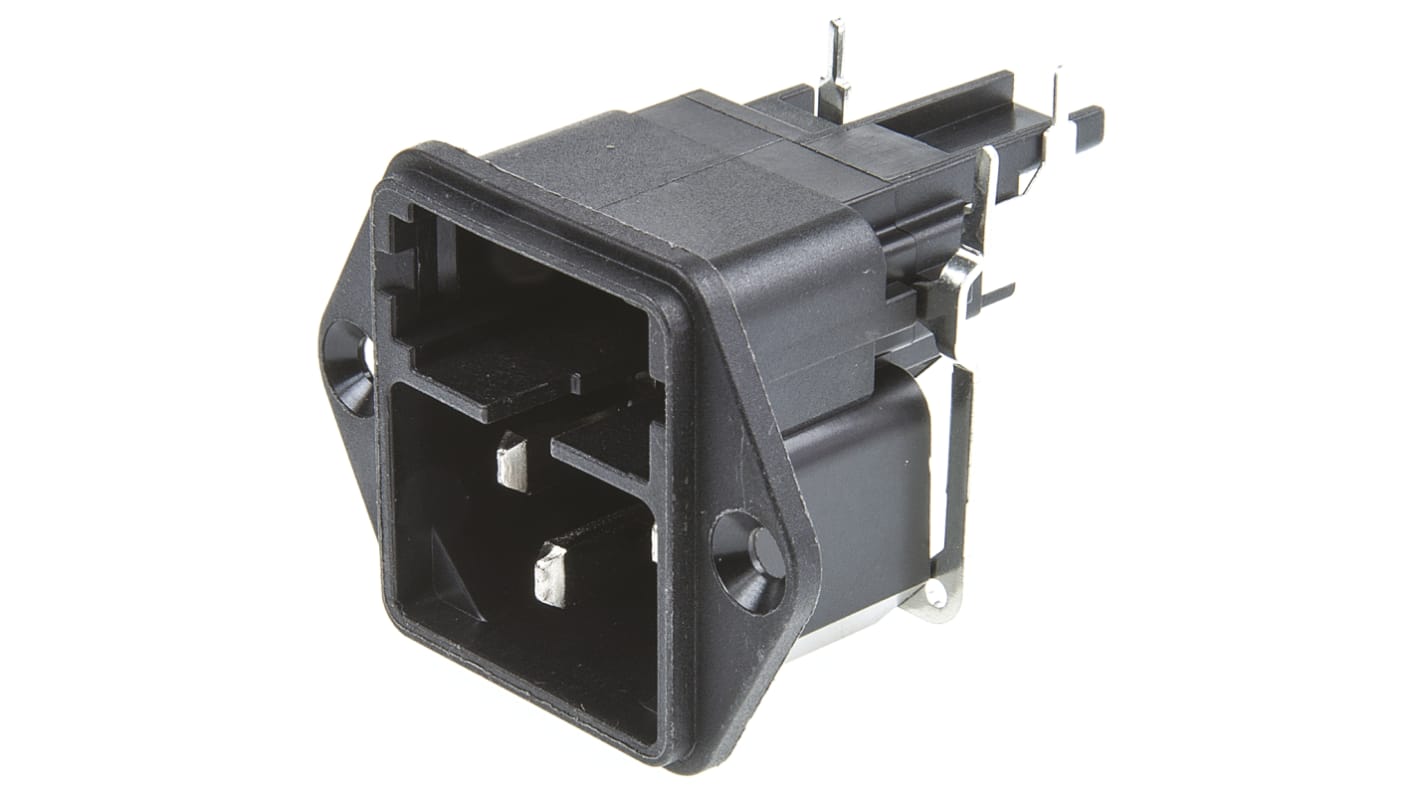

Schurter C14 Right Angle Panel Mount IEC Plug Male, 10A, 250 V ac, Fuse Size 5 x 20mm

  • RS Stock No. 730-0461
  • Mfr. Part No. 4301.3211
  • Manufacturer Schurter
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

10A Screw Mount IEC Inlet with Fuseholder (C14)

A range of screw-on mount IEC appliance inlets with 1 or 2 pole fuseholder for PCB mounting. Removal of the plug is necessary for fuse link replacement. The fuse drawer meets the requirements of medical standard IEC/EN 60601-1 and the fuseholder is accessible from the front of the equipment.

Black thermoplastic housing
Qualified for use in equipment according to IEC/EN 60950

Note

Fuse drawer to be ordered separately
1 pole fuse holder is stock number 498-2653 which fits IEC inlet Stock number 730-0461
2 pole fuse holder is stock number 500-6211 which fits IEC inlet Stock number 730-0470

Chassis/PCB Plugs - Fused

Note

These fused plugs accept 5 x 20mm fuses

Specifications
Attribute Value
IEC Connector Type C14
Mounting Type Panel Mount
Gender Male
Current Rating 10A
Body Orientation Right Angle
Termination Method Screw Down
Switch Type None
Number of Fuses 1
Voltage Rating 250 V ac
Fuse Size 5 x 20mm
25 In stock for delivery within 2 working days
Unit of sale: Each
4.76
(exc. VAT)
5.85
(inc. VAT)
units
Per unit
1 - 9
€4.76
10 - 24
€4.59
25 - 49
€4.39
50 +
€4.20
