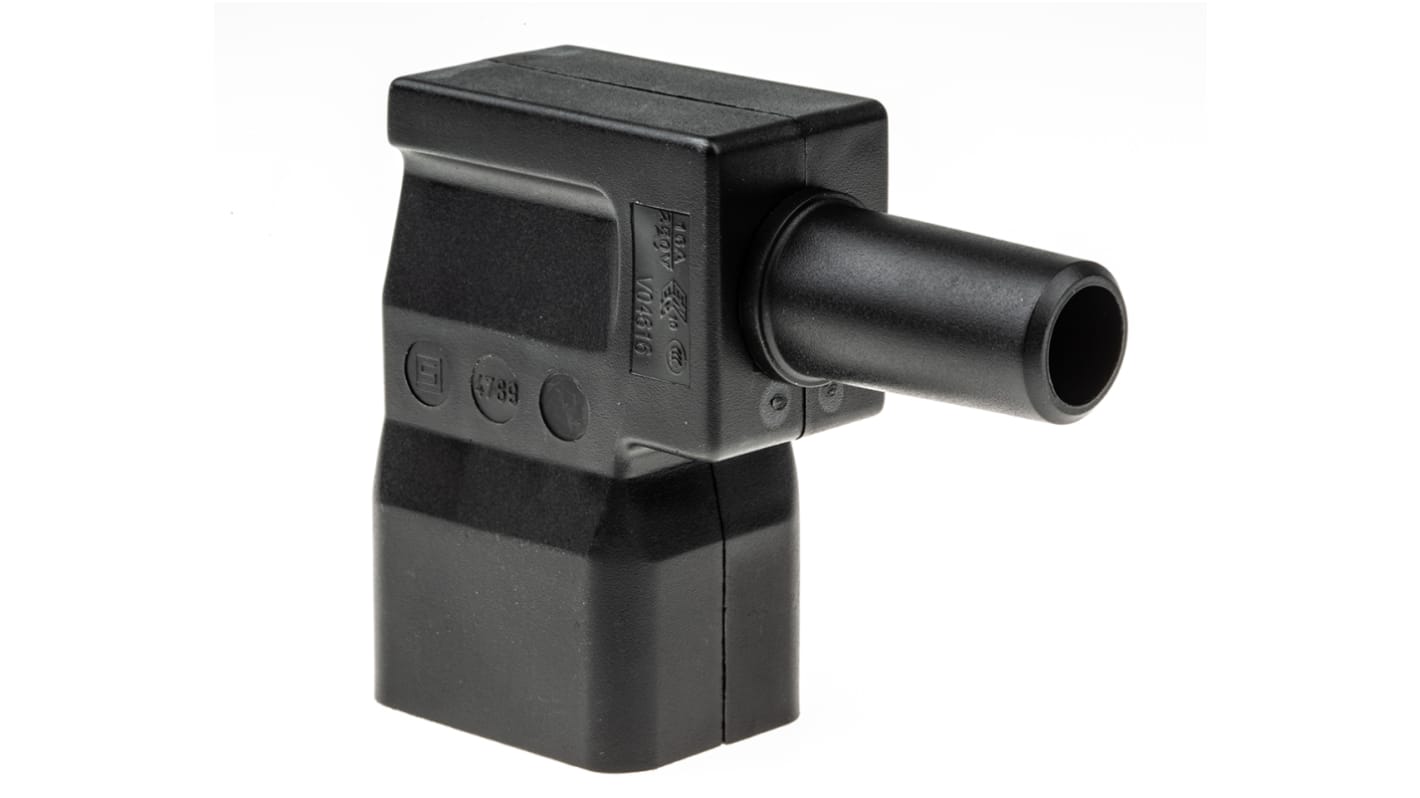

Schurter C20 Right Angle Cable Mount IEC Plug Male, 16A, 250 V ac

  • RS Stock No. 730-0483
  • Mfr. Part No. 4789.1200
  • Manufacturer Schurter
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

16A Rewireable Angled IEC Socket (C19) & 16A Rewireable Angled IEC Plug (C20)

From Schurter, this rewireable cable mounting IEC connector is right angled for added convenience. With thermoplastic housing and a screw terminal, this robust connector is often used in audio/visual or ITC equipment.

These Right Angle IEC Connectors benefit from the following features:

• Maximum cable diameter 10mm
• Maximum pin temperature 70°C
• Qualified for use in equipment according to IEC/EN 60950
• Suitable for appliances with protection class 1 according to IEC 61140

Available in this range:

• Stock number 730-0483 is a right angled plug
• Stock number 730-0492 is a right angled socket

Specifications
Attribute Value
IEC Connector Type C20
Mounting Type Cable Mount
Gender Male
Current Rating 16A
Body Orientation Right Angle
Termination Method Screw Down
Switch Type None
Voltage Rating 250 V ac
Rewireable Yes
Maximum Cable Diameter 10mm
42 Within 1 working day(s) (IE stock)
147 Within 2 working day(s) (EU stock)
Unit of sale: Each
7.51
(exc. VAT)
9.24
(inc. VAT)
units
Per unit
1 - 9
€7.51
10 - 24
€7.20
25 - 49
€6.91
50 +
€6.60
