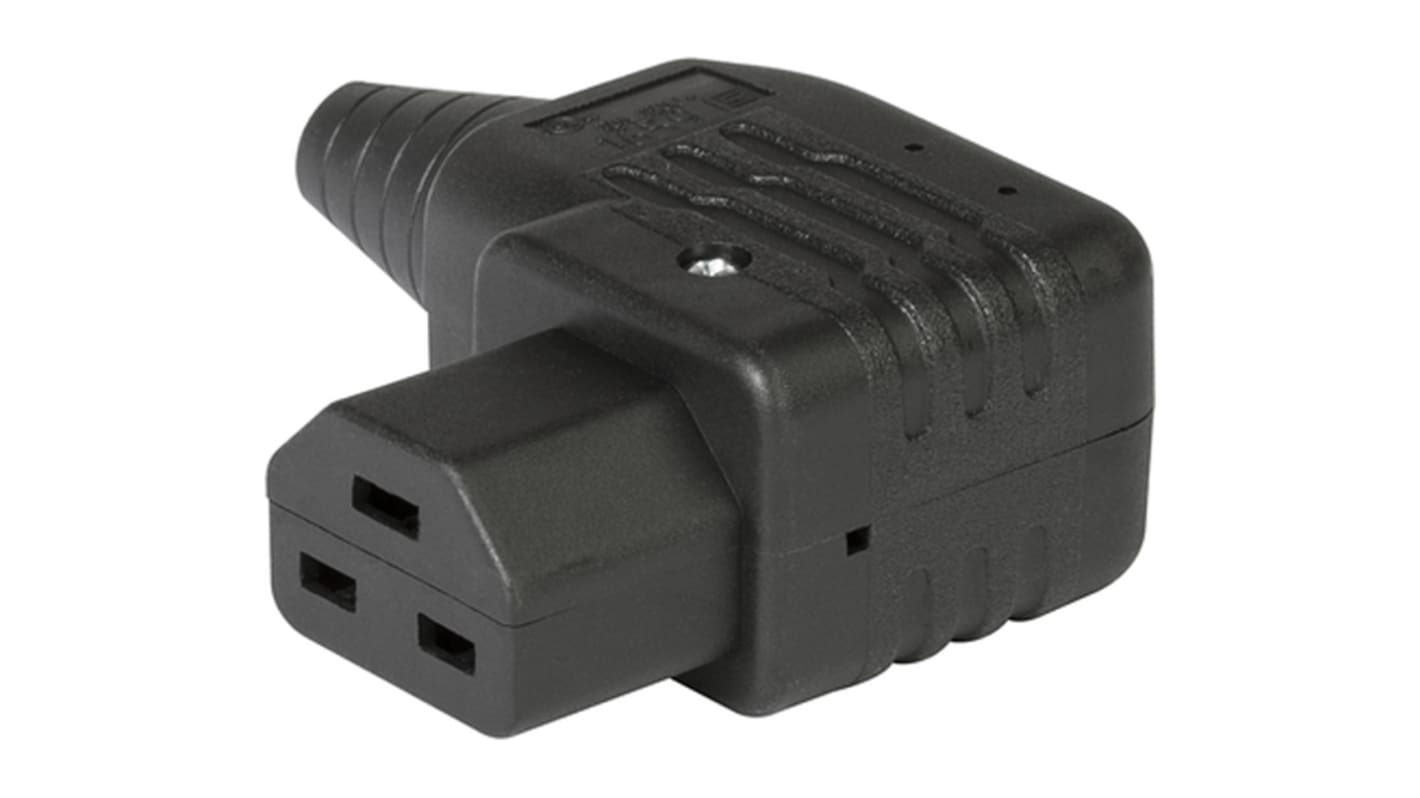

Schurter C21 Right Angle Cable Mount IEC Socket, 16 (IEC) A, 20 (UL & CSA) A, 250 V ac

  • RS Stock No. 866-2631
  • Mfr. Part No. 1659.0000
  • Manufacturer Schurter
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Very Hot Condition IEC C21 Rewireable Connectors

C21 rewireable very hot condition connectors, in straight and angled versions with a durable thermoplastic construction for temperatures up to 155 degrees C, protection class 1 (IEC 61140).These RoSH compliant C21 connectors are suitable for cables with a diameter from 6.5mm to 16mm with conductors from 1 to 2.5mm2 (16 to 10 AWG). IEC rating 16A at 250Vac, UL/CSA 20A at 250Vac.

Temperature range -25 to +155° C
Suitable for appliances with protection class 1
Screw terminals

Approvals

ENEC, UL, CCC

Specifications
Attribute Value
IEC Connector Type C21
Mounting Type Cable Mount
Gender Female
Current Rating 16 (IEC) A, 20 (UL & CSA) A
Body Orientation Right Angle
Switch Type 3 Pole
Voltage Rating 250 V ac
Rewireable Yes
Maximum Cable Diameter 16mm
58 In stock for delivery within 2 working days
Unit of sale: Each
8.56
(exc. VAT)
10.53
(inc. VAT)
units
Per unit
1 - 9
€8.56
10 +
€8.22
