RS PRO Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Socket, Female, IP67
- RS Stock No.:
- 124-6734
- Manufacturer:
- RS PRO
Temporarily out of stock - back order for despatch 15-07-2024, delivery within 2 working days
Added
Price Each
€19.86
(exc. VAT)
€24.43
(inc. VAT)
| Units | Per unit |
| 1 - 9 | €19.86 |
| 10 - 49 | €18.85 |
| 50 - 99 | €17.85 |
| 100 + | €16.85 |
- RS Stock No.:
- 124-6734
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

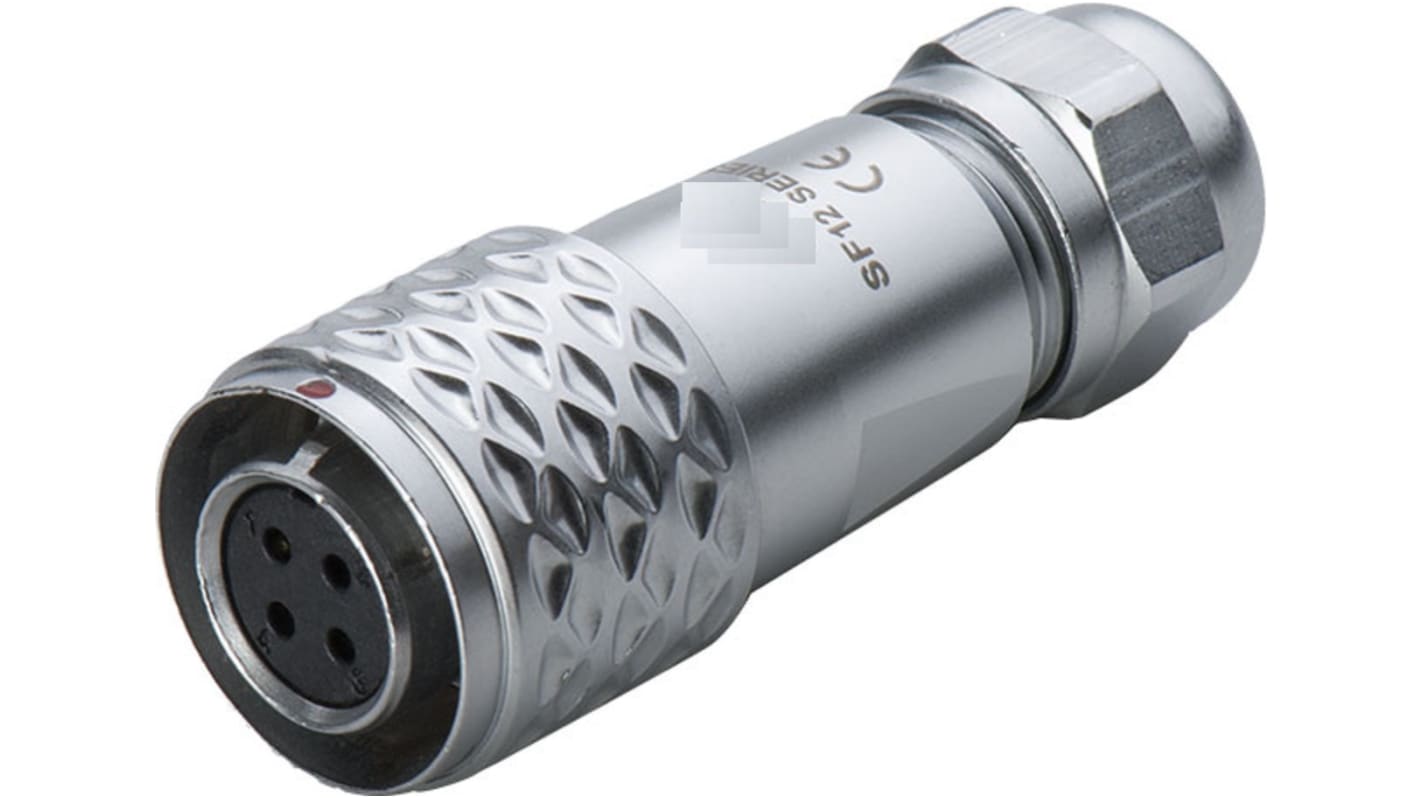

M12 Push-Pull Cable Socket
DISCLAIMER: We have recently made a design change to the grip feature of this product and there will be a period of time where you may receive mixed stock. This will not affect the product performance.
From RS Pro, these push-pull sockets are serious contenders for your application. The convenient push-pull connection, makes it perfect in situations where accidental disconnects occur. That coupled with the IP67 rating, makes sure that this industrial connector excels in harsh environments. When choosing a female connector, this version should really be one you consider.
Features & Benefits
• Panel hole cutout diameter: 12 mm
• 2 way, 3 way, 4 way and 5 way all available
• Cable outer diameter: 4 mm to 6.5 mm See RS part numbers below
124-6731 124-6732 124-6733 124-6734
• Cable outer diameter: 5 mm to 8 mm See RS part numbers below
124-6735 124-6736 124-6737 124-6738
• Solder termination
• Chrome plated brass shell material
• 2 way, 3 way, 4 way and 5 way all available
• Cable outer diameter: 4 mm to 6.5 mm See RS part numbers below
124-6731 124-6732 124-6733 124-6734
• Cable outer diameter: 5 mm to 8 mm See RS part numbers below
124-6735 124-6736 124-6737 124-6738
• Solder termination
• Chrome plated brass shell material
RS Pro Push-Pull
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 5 |
| Mounting Type | Cable Mount |
| Connector Size | M12 |
| Plug/Socket | Socket |
| Contact Gender | Female |
| Termination Method | Solder |
| IP Rating | IP67 |
| Current Rating | 5.0A |
| Series | SF1210 |
| Body Orientation | Straight |
| Voltage Rating | 180 V |
| Mating Type | Push-Pull |
| Housing Material | Metal |
| Pole Format | 5P |
| Contact Plating | Gold |
| Maximum Operating Temperature | +85°C |
| Contact Material | Brass |
| Minimum Operating Temperature | -40°C |
