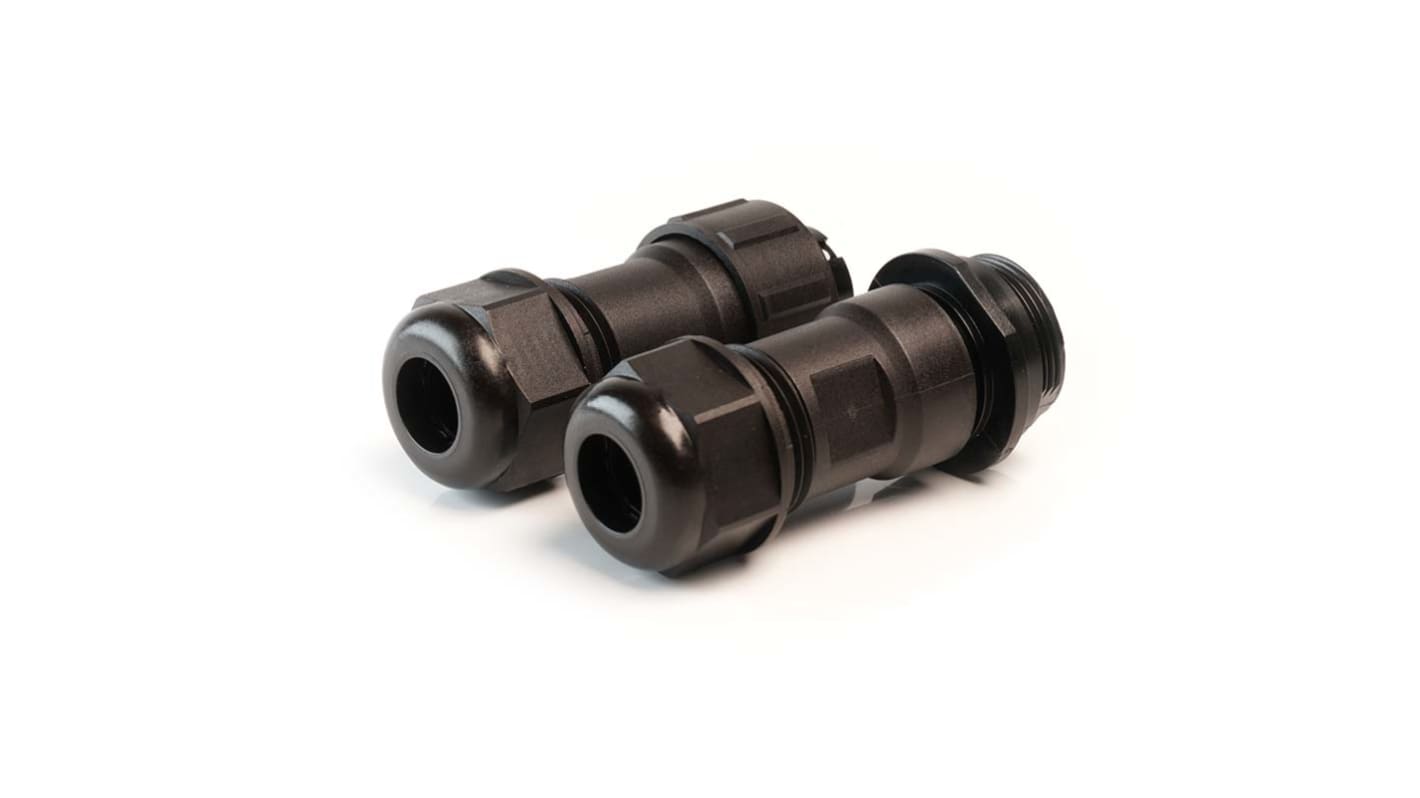

RS PRO Circular Connector, 5 Contacts, Cable Mount, Plug and Socket, Male and Female Contacts, IP68
- RS Stock No.:
- 144-4217
- Manufacturer:
- RS PRO
26 In stock for delivery within 2 working days
Added
Price 1 Set
€26.44
(exc. VAT)
€32.52
(inc. VAT)
| Set(s) | Per Set |
| 1 - 9 | €26.44 |
| 10 - 49 | €25.09 |
| 50 - 99 | €23.83 |
| 100 + | €22.48 |
- RS Stock No.:
- 144-4217
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Cable Plug and Socket 5/10/15A Circular Connectors (Threaded) IP68
From RS Pro, these threaded plugs and sockets are serious contenders for your application. This particular model has a bigger and stronger shell. That coupled with the IP68 rating excels in harsh environments. When choosing a male or female connector, this version should really be one you consider.
Features and Benefits
5 way, 7 way, 9 way, 10 way and 12 way available
Solder contact termination
High-quality Nylon66 shell
Panel hole cutout diameter: 17 mm or 21 mm
Note
This product may be provided in an all-black or black and blue variant
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 5 |
| Mounting Type | Cable Mount |
| Connector Size | Standard |
| Plug/Socket | Plug, Socket |
| Contact Gender | Female, Male |
| Termination Method | Solder |
| IP Rating | IP68 |
| Current Rating | 5.0A |
| Body Orientation | Straight |
| Voltage Rating | 500 V |
| Mating Type | Threaded |
| Housing Material | Nylon |
| Pole Format | 5P |
| Contact Plating | Gold |
| Contact Material | Brass |
| Maximum Operating Temperature | +85°C |
| Outer Diameter | 6→10mm |
| Minimum Operating Temperature | -25°C |
