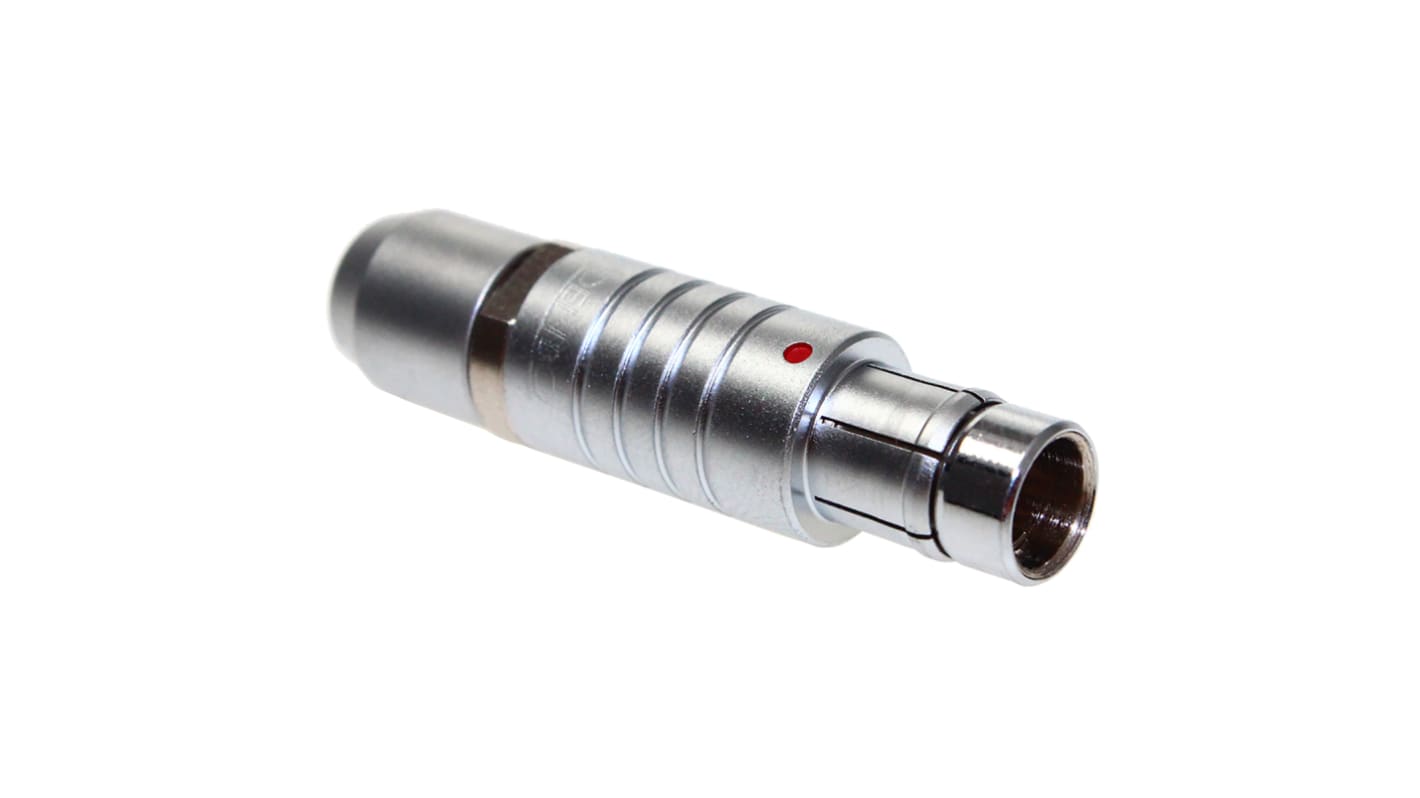

CAMDENBOSS CCA1 Series Male Cable Mount Circular Connector, 5 contacts Plug

  • RS Stock No. 174-7764
  • Mfr. Part No. CCA1P1/A05
  • Manufacturer CAMDENBOSS
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

CamCirc Plug, 102 Size, 5 Pole

5 Poles
Cable mount
Plug
Key coded to prevent mis-connection

Does not disconnect when the cable is under load or stress
Tough, high performance interconnection solution
Suitable for broadcasting, autosport, military, rail, marine, security, industrial and agricultural
Ideal for harsh environments.

Specifications
Attribute Value
Number of Contacts 5
Plug/Socket Plug
Mounting Type Cable Mount
Termination Method Solder
Current Rating 5.2A
IP Rating IP68
Contact Gender Male
Voltage Rating 160.0 V
Mating Type Push-Pull
Body Orientation Straight
Series CCA1
Housing Material Brass
Contact Material Brass
Pole Format 5P
Contact Plating Gold
Temporarily out of stock - back order for despatch 23-09-2020, delivery within 2 working days
Unit of sale: Each
28.08
(exc. VAT)
34.54
(inc. VAT)
units
Per unit
1 - 4
€28.08
5 - 9
€26.68
10 +
€25.27
