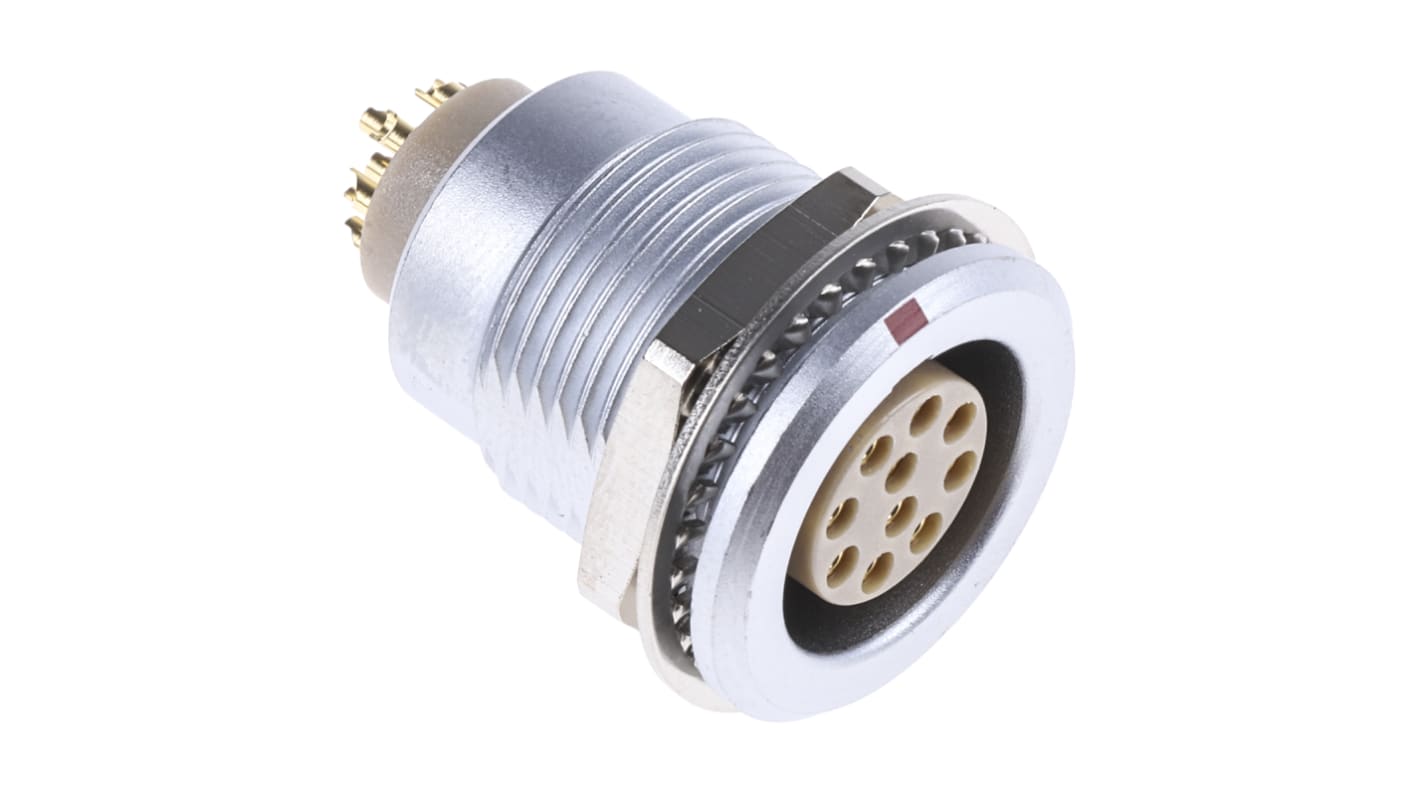

Lemo Circular Connector, 10 Contacts, Panel Mount, Socket, Female, IP50, 2B Series
- RS Stock No.:
- 178-9029
- Mfr. Part No.:
- EGG.2B.310.CLL
- Manufacturer:
- Lemo
117 In stock for delivery within 2 working days
Added
Price Each
€47.06
(exc. VAT)
€57.88
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €47.06 |
| 5 - 9 | €45.66 |
| 10 - 19 | €44.24 |
| 20 - 49 | €42.83 |
| 50 + | €40.48 |
- RS Stock No.:
- 178-9029
- Mfr. Part No.:
- EGG.2B.310.CLL
- Manufacturer:
- Lemo
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
Chassis Socket
From Lemo, this series 2B chassis socket is designed for quick and secure mating with the 'push-pull' latching system of series 2B plugs.
Note
The current ratings quoted in the table are per pin.
2B Series - Metal
Free plugs (15.0mm dia.) which mate with panel mount sockets all incorporating PEEK insulating material. Terminations are by solder bucket.,The free plugs are supplied with collets to take a maximum cable diameter of 9mm. Smaller collets are available separately. For construction of connector see 0B free plugs.
Self-latching system permits quick mating/release
Easy cable assembly
Mechanical endurance 10000 mating cycles
Aesthetic appearance enhances customers product
Easy cable assembly
Mechanical endurance 10000 mating cycles
Aesthetic appearance enhances customers product
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 10 |
| Mounting Type | Panel Mount |
| Plug/Socket | Socket |
| Contact Gender | Female |
| Termination Method | Solder |
| IP Rating | IP50 |
| Current Rating | 10.0A |
| Series | 2B |
| Body Orientation | Straight |
| Shell Size | 2 |
| Housing Material | Brass |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +250°C |
| Contact Material | Brass, Bronze |
