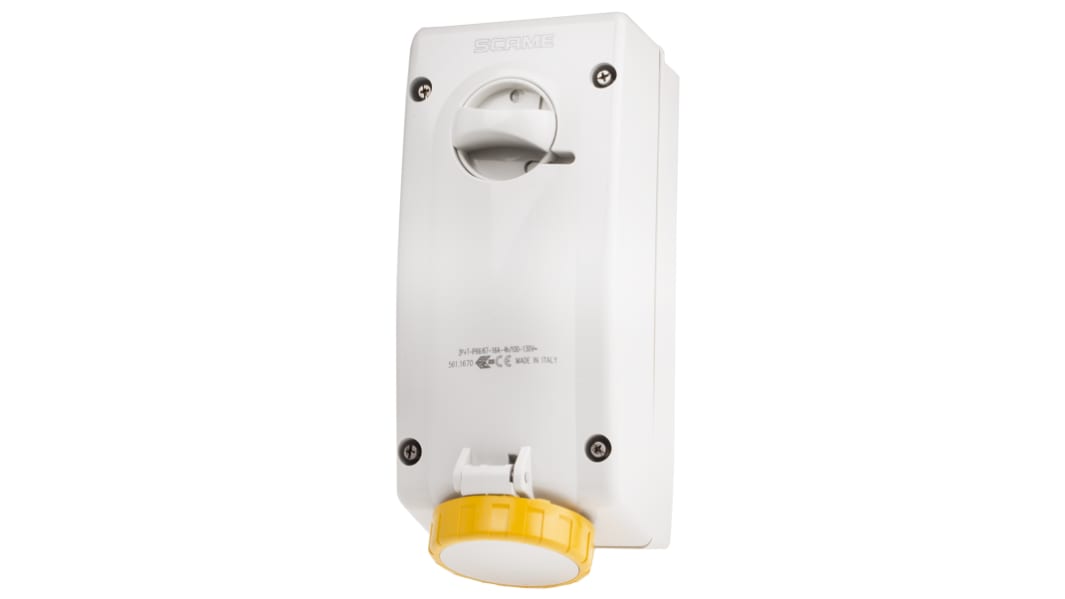

Scame Switchable IP67 Industrial Interlock Socket 2P+E, Earthing Position 4h, 16A, 130 V
- RS Stock No.:
- 410-151
- Mfr. Part No.:
- 561.1670
- Manufacturer:
- Scame
Temporarily out of stock - back order for despatch 30-04-2024, delivery within 2 working days
Added
Price Each
€183.33
(exc. VAT)
€225.50
(inc. VAT)
| Units | Per unit |
| 1 + | €183.33 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 410-151
- Mfr. Part No.:
- 561.1670
- Manufacturer:
- Scame
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
Vertical style with switch
Scame surface mounted interlocked sockets feature hard plastic housing and a covered socket. They are designed for industrial use, but may also be suitable for a commercial environment.
Designed with safety in mind, this range features a mechanical interlock that prevents the switch from closing if the plug is not inserted, the extraction of the plug if the switch is closed, and the opening of the socket outlet cover if the switch is closed.
These outlets are available as protected to either IP44 (splash proof) or IP67 (watertight.)
Designed with safety in mind, this range features a mechanical interlock that prevents the switch from closing if the plug is not inserted, the extraction of the plug if the switch is closed, and the opening of the socket outlet cover if the switch is closed.
These outlets are available as protected to either IP44 (splash proof) or IP67 (watertight.)
Specifications
Attribute | Value |
|---|---|
| Plug/Socket | Socket |
| Pole Format | 2P+E |
| Switchable | Yes |
| Colour | Yellow |
| IP Rating | IP67 |
| Voltage Rating | 130 V |
| Current Rating | 16A |
| Body Orientation | Straight |
| Dimensions | 341 x 106 x 145mm |
| Earthing Position | 4h |
| Body Material | Polymer |
| Depth | 145mm |
| Length | 341mm |
| Width | 106mm |
