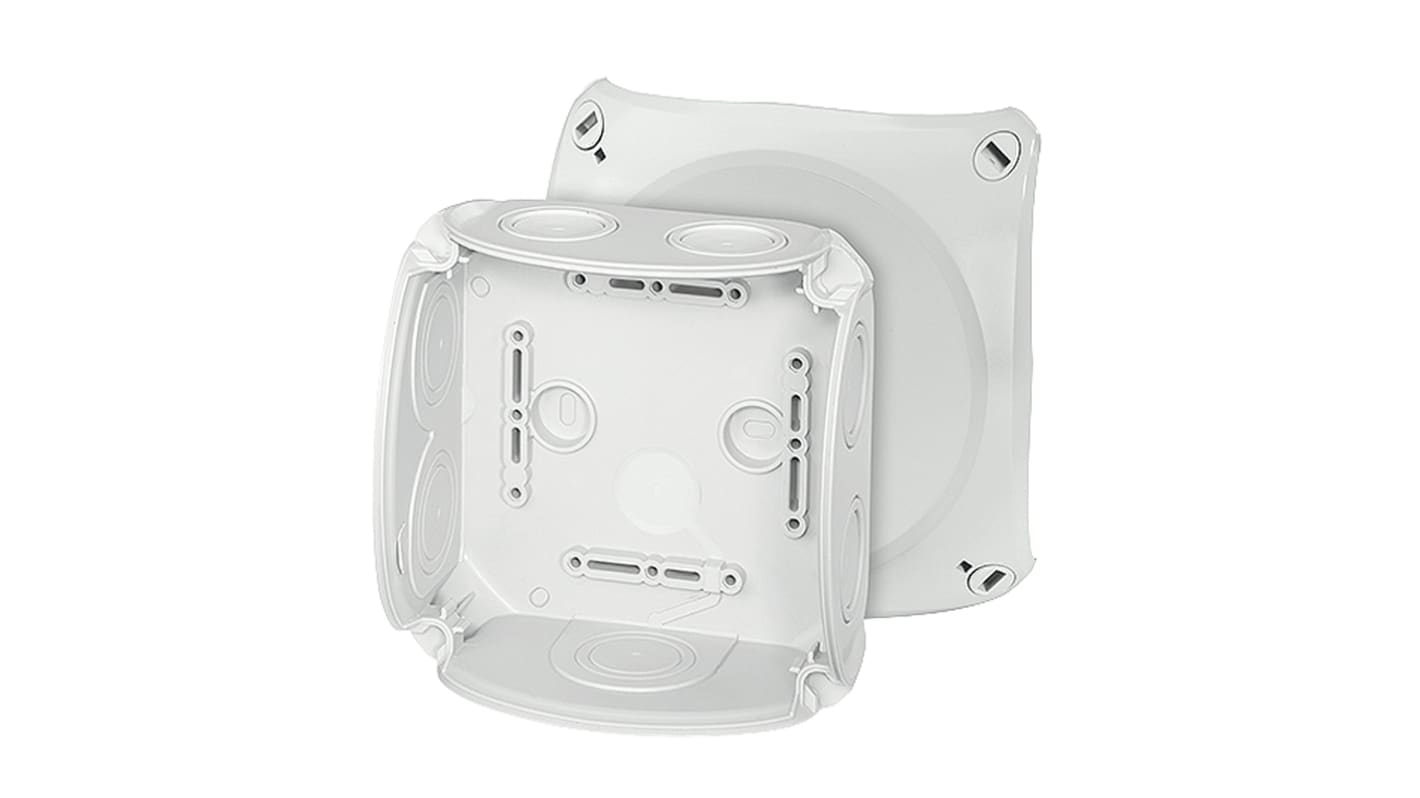

HENSEL Junction Box, IP66, 130mm x 77mm x 130mm

  • RS Stock No. 183-2835
  • Mfr. Part No. DK0600G
  • Manufacturer HENSEL
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Without terminals
With elastic membranes, which can be removed for cable entry via cable glands, sealing range 9.0-21.0 mm
With one cable entry in the bottom, sealing range ø 9.0-20.0 mm
Lid fasteners sealable without accessories
Retaining strap and external brackets for wall fixing included
Colour: grey, ral 7035
To close opened membranes use grommets type edk.

Specifications
Attribute Value
Length 130mm
Material Polypropylene
Width 77mm
Dimensions L x W x H 130 x 77 x 130mm
IP Rating IP66
Height 130mm
Number of Ways 1
Colour Grey
3 In stock for delivery within 2 working days
Unit of sale: Each
14.80
(exc. VAT)
18.20
(inc. VAT)
units
Per unit
1 +
€14.80
