Key Switch, SPST, 2 A@ 250 V ac 2-Way Tubular-Key
- RS Stock No.:
- 182-562
- Mfr. Part No.:
- LS300
- Manufacturer:
- Lorlin
316 In stock for delivery within 2 working days
Added
Price Each
€18.72
(exc. VAT)
€23.03
(inc. VAT)
| Units | Per unit |
| 1 - 9 | €18.72 |
| 10 - 49 | €17.92 |
| 50 - 99 | €16.70 |
| 100 - 249 | €15.03 |
| 250 + | €12.98 |
- RS Stock No.:
- 182-562
- Mfr. Part No.:
- LS300
- Manufacturer:
- Lorlin
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

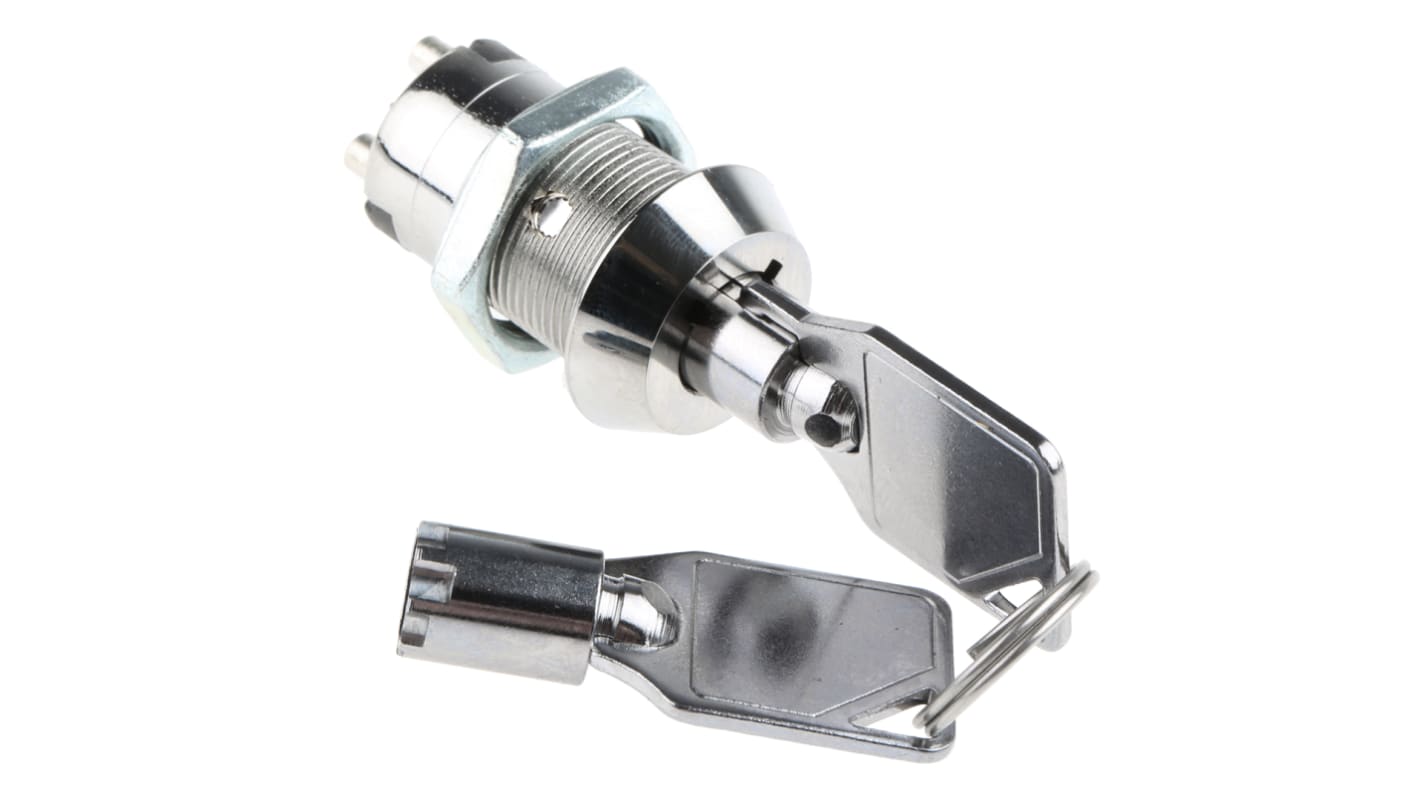

Lorlin Radial Pin Lock Switch
The Lorlin radial pin lock switch has a single pole, single throw (SPST) contact configuration. It is high tech, compact, tubular key device. It offers anti-tamper locking capability. It has a tapered lock head and silver-plated contacts.
The switch has a contact current rating of 2A at 250VAC
The switch has a contact current rating of 2A at 250VAC
Features and Benefits
Key insertion/ removal in both positions
Radial cylinder with 7-pin tumblers
Number of positions are 2
Switch operation are ON-OFF
Through hole terminal
Zinc alloy case material
Bezel shape is round
Key index angle is 90°
Operating temperature ranges between -20°C and 55°C
Mechanical life is less than 5x10⁴ times
Radial cylinder with 7-pin tumblers
Number of positions are 2
Switch operation are ON-OFF
Through hole terminal
Zinc alloy case material
Bezel shape is round
Key index angle is 90°
Operating temperature ranges between -20°C and 55°C
Mechanical life is less than 5x10⁴ times
Applications
Electromechanical equipment
Control panels
Control panels
Certifications
ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 2 |
| Switch Operation | On-Off |
| Contact Configuration | SPST |
| Contact Current Rating | 2 A@ 250 V ac |
| Key Type | Tubular |
| Terminal Type | Through Hole |
| Case Material | Zinc Alloy |
| Bezel Shape | Round |
| Application | Electromechanical |
| Key Index Angle | 90° |
| Mechanical Life | <5x10⁴ times |
| Maximum Operating Temperature | +55°C |
| Minimum Operating Temperature | -20°C |
| Standards Met | RoHS |
