Key Switch, SPST, 500 mA @ 24 V 2-Way

  • RS Stock No. 562-545
  • Mfr. Part No. SKL-12-AS2
  • Manufacturer Lorlin
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details
//media.rs-online.com/t_line/L0321032-01.gif

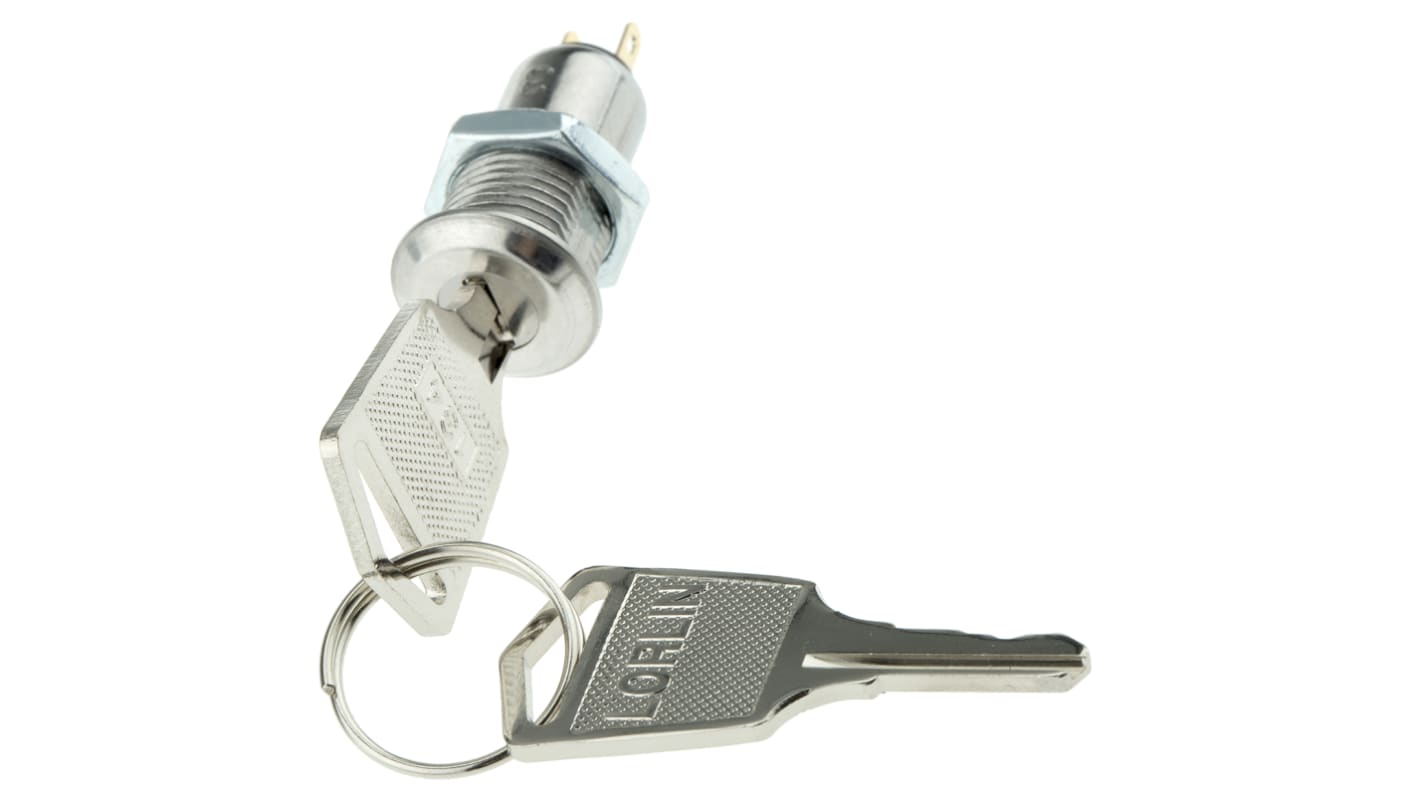

Lorlin Key Switch

The Lorlin key switch has a single pole, single throw (SPST) contact configuration. It is a miniature, key-operated lock switch. It has a zinc alloy die-cast housing with a stainless steel capped bezel. It has a 90⁰ movement lock. The switch has a contact current rating of 500mA at 24V.

Features and Benefits

Bright chrome plated housing
Brass keys, nickel-plated
Key insertion/removal in both positions as required
Radial cylinder with 4-pin tumblers
Low security
10 different key combination
Number of positions are 2
Switch operation is OFF-ON


Solder terminal
Key index angle is 90°
Operating temperature ranges between -20°C and 65°C

Applications

Control panels
Lighting operations

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Specifications
Attribute Value
Number of Positions 2
Switch Operation Off-On
Contact Configuration SPST
Contact Current Rating 500 mA @ 24 V
Key Type Common, Flat
Terminal Type Solder
Case Material Zinc Alloy
Bezel Shape Round
Key Index Angle 90°
18 Within 1 working day(s) (IE stock)
203 Within 2 working day(s) (EU stock)
Unit of sale: Each
6.72
(exc. VAT)
8.13
(inc. VAT)
units
Per unit
1 - 9
€6.72
10 - 49
€6.43
50 - 99
€4.61
100 - 249
€4.16
250 +
€3.60
