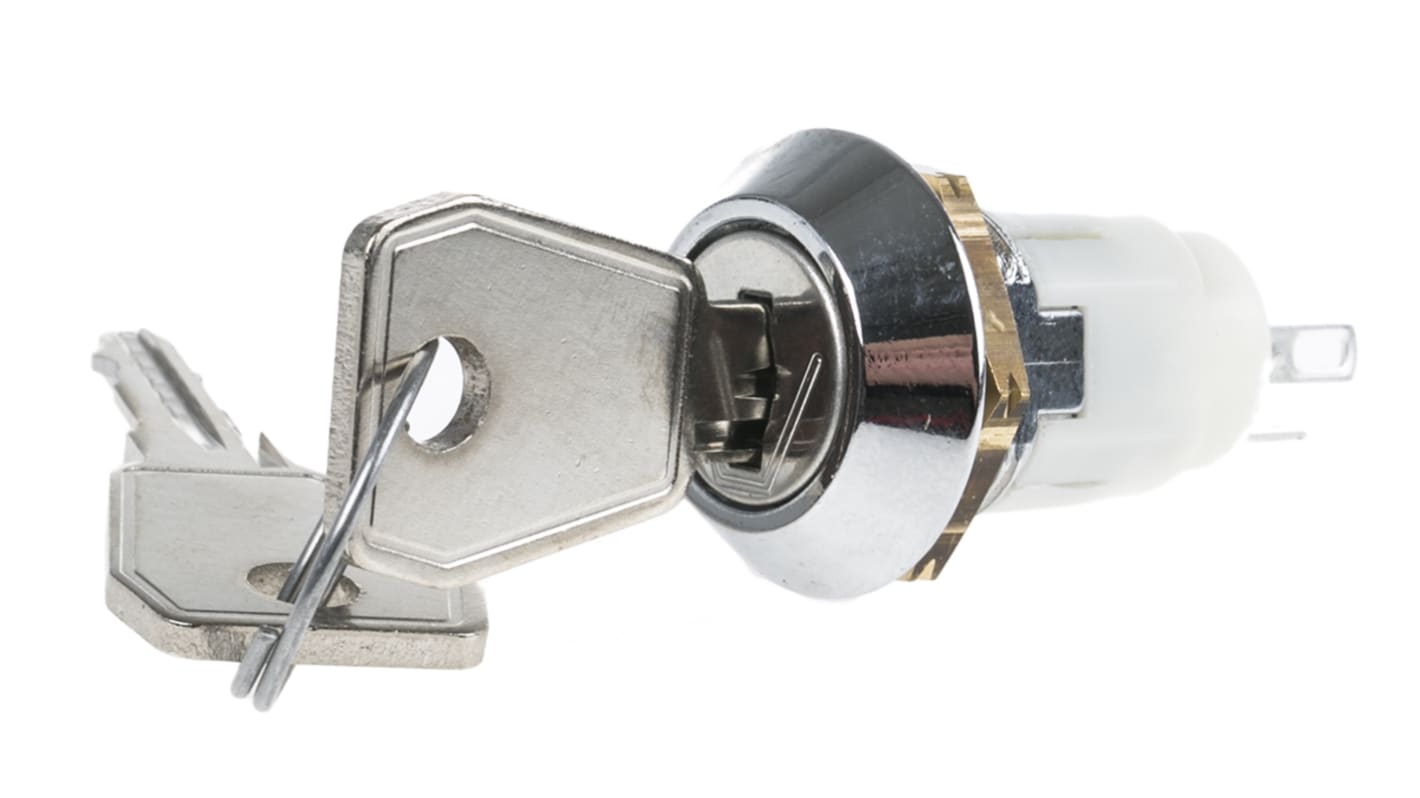

Key Switch, SP-CO, 3 A @ 50 V dc, 5 A @ 115 V ac 3-Way, -20 → +65°C

  • RS Stock No. 711-8347
  • Mfr. Part No. SRL-5-F-S-2
  • Manufacturer Lorlin
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

16mm Key Switch - SRL Series

Miniature 2-position key switches with silver plated single-pole and double-pole changeover contacts, suitable for many low voltage switching applications
Tapered or Parallel bezel styles
Trapping (key removable in one position) or non-trapping (key removable in both positions) types available
Common key or random key profile
Rear projection less than 30 mm from panel
Spare keys are available for common profiles but for security reasons not for random profiles

Specifications
Attribute Value
Number of Positions 3
Contact Configuration SP-CO
Key Trapping No
Contact Current Rating 3 A @ 50 V dc, 5 A @ 115 V ac
Key Type Common
Terminal Type Solder
Case Material Glass Fibre Reinforced PA
Bezel Shape Tapered
Depth Behind Panel 22.4mm
Key Index Angle 90°
Contact Material Silver Plated Brass
Minimum Operating Temperature -20°C
Maximum Operating Temperature +65°C
Mechanical Life 10000Operations
Operating Temperature Range -20 → +65°C
78 In stock for delivery within 2 working days
Unit of sale: Each
8.91
(exc. VAT)
10.78
(inc. VAT)
units
Per unit
1 - 9
€8.91
10 - 49
€8.52
50 - 99
€7.94
100 - 249
€7.16
250 +
€6.18
